Kalagedehena, Western Province, Sri Lanka, located in the tropics, offers a promising location for solar PV energy generation. With its consistent sunlight throughout the year and seasons characterized by wet and dry periods, this area presents favorable conditions for solar power production.

Seasonal Solar Output

The solar energy potential in Kalagedehena remains relatively stable across seasons, with some variations: Spring sees the highest output at 6.23 kWh/day per kW installed, followed closely by Summer at 5.89 kWh/day. Winter maintains a strong performance at 5.71 kWh/day, while Autumn experiences a slight dip to 5.09 kWh/day. These figures indicate a year-round suitability for solar energy production, with Spring and Summer being particularly productive periods.

Optimal Panel Positioning

For fixed panel installations in Kalagedehena, Western Province, the ideal tilt angle to maximize year-round solar production is 6 degrees South. This slight tilt helps optimize energy capture throughout the year, accounting for the location's proximity to the equator and the sun's path across the sky.

Environmental Considerations

While Kalagedehena's tropical climate is generally favorable for solar energy, there are some factors to consider: 1. Rainfall: The region experiences wet seasons, which could temporarily reduce solar output. Installing panels with good drainage and using water-resistant components can mitigate this issue. 2. Cloud cover: Occasional cloud cover, especially during the wet season, may affect solar production. Utilizing high-efficiency panels and incorporating energy storage solutions can help maintain consistent power supply. 3. Dust and pollen: The tropical environment may lead to dust and pollen accumulation on panels. Regular cleaning and maintenance, along with the installation of self-cleaning panels, can help maintain optimal performance.

Topography and Installation

The hilly and undulating terrain of the area requires careful consideration for solar panel placement. Installers should seek out flatter areas or plateaus to minimize shading from surrounding hills and vegetation. In some cases, ground-mounted systems on carefully selected sites may be preferable to rooftop installations. Overall, Kalagedehena presents a very good location for solar PV energy generation. With proper planning and maintenance, solar installations in this area can provide consistent and substantial energy output throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 109 locations across Sri Lanka. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Sri Lanka by location

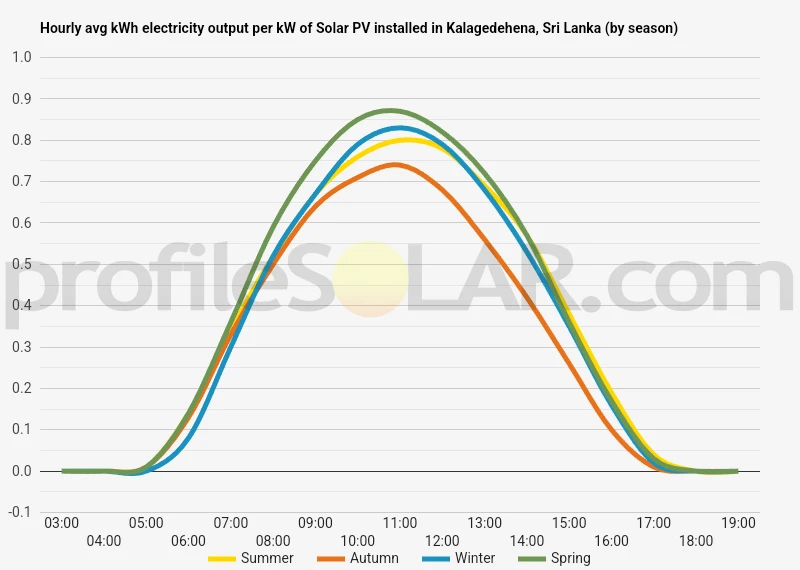

Solar output per kW of installed solar PV by season in Kalagedehena

Seasonal solar PV output for Latitude: 7.1042, Longitude: 80.0579 (Kalagedehena, Sri Lanka), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 6° South in Kalagedehena, Sri Lanka

To maximize your solar PV system's energy output in Kalagedehena, Sri Lanka (Lat/Long 7.1042, 80.0579) throughout the year, you should tilt your panels at an angle of 6° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Kalagedehena, Sri Lanka

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Kalagedehena, Sri Lanka. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 6° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	13° South in Autumn	22° South in Winter	1° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Kalagedehena, Sri Lanka

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Kalagedehena, Sri Lanka.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Kalagedehena, Sri Lanka

The area around Kalagedehena, Sri Lanka, is characterized by a diverse and picturesque topography typical of the country's central region. This location sits in the southwestern part of the island nation, nestled within the lush landscapes of the wet zone.

The terrain in this area is generally hilly and undulating, with elevations gradually increasing as you move eastward towards the central highlands. The landscape is dotted with small hills, valleys, and plateaus, creating a patchwork of different elevations. Many of these hills are covered in dense tropical vegetation, including rainforests and tea plantations, which are common in this part of Sri Lanka.

Numerous streams and small rivers crisscross the region, carving their way through the terrain and contributing to the area's lush, green appearance. These waterways are part of larger river systems that eventually make their way to the coast.

For large-scale solar PV installations, the most suitable areas nearby would likely be the flatter, more open spaces found in the valleys between hills or on some of the broader plateaus. These areas would offer more consistent sunlight exposure throughout the day and easier access for construction and maintenance of solar panels.

However, it's important to note that the region's high rainfall and frequent cloud cover, typical of Sri Lanka's wet zone, might pose challenges for solar energy production. The most ideal locations would be those that balance relatively flat terrain with minimal shading from surrounding hills and vegetation, while also considering factors like proximity to existing infrastructure and power grids.

Areas slightly to the east, as the landscape transitions towards the drier central regions of Sri Lanka, might offer more favorable conditions for solar PV installations. These areas typically receive more direct sunlight and have less cloud cover, potentially increasing the efficiency of solar panels.

Any large-scale solar project in this region would need to carefully consider the balance between finding suitable topography and managing the challenges posed by the local climate and vegetation. Environmental impact assessments would also be crucial to ensure that such developments do not negatively affect the rich biodiversity and important ecosystems of the area.

Sri Lanka solar PV Stats as a country

Sri Lanka ranks 55th in the world for cumulative solar PV capacity, with 434 total MW's of solar PV installed. Each year Sri Lanka is generating 20 Watts from solar PV per capita (Sri Lanka ranks 66th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Sri Lanka?

Yes, there are incentives for businesses wanting to install solar energy in Sri Lanka. The government of Sri Lanka has implemented a number of policies and programs to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has set up a Renewable Energy Fund which provides grants to support research and development activities related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Sri Lanka? Please reach out to us and help us keep this information current. Thanks!
