Ranala, Western Province, Sri Lanka, located at 6.9136° N, 80.0298° E, offers a promising environment for solar PV energy generation throughout the year. This tropical location benefits from consistent sunlight, with seasons characterized more by wet and dry periods rather than traditional temperature-based seasons.

Year-round Solar Potential

The solar energy output in Ranala remains relatively stable across all meteorological seasons. Spring sees the highest production at 5.93 kWh per day for each kW of installed solar capacity. Winter follows closely with 5.60 kWh/day, while summer yields 5.47 kWh/day. Autumn experiences a slight dip but still maintains a respectable 4.94 kWh/day. This consistency in solar production makes Ranala an ideal location for year-round solar energy generation. The minimal fluctuation between seasons ensures a reliable power supply throughout the year, with spring and winter being particularly favorable for solar energy harvesting.

Optimal Panel Tilt

For fixed solar panel installations in Ranala, Western Province, the ideal tilt angle to maximize year-round production is 6 degrees South. This relatively shallow angle is due to the location's proximity to the equator, where the sun's path remains high in the sky throughout the year.

Environmental Considerations

While Ranala's tropical climate is generally favorable for solar energy production, there are some environmental factors to consider: 1. Monsoon seasons: Sri Lanka experiences two monsoon seasons, which can lead to increased cloud cover and rainfall, potentially reducing solar output. 2. High humidity: The tropical climate's high humidity levels can lead to accelerated wear on solar equipment if not properly protected. To mitigate these factors, the following preventative measures can be taken:

• Use corrosion-resistant materials and protective coatings on solar panels and mounting systems
• Implement efficient drainage systems to prevent water accumulation on panels
• Regular cleaning and maintenance to remove dust and debris, which can accumulate more quickly in humid environments

By addressing these environmental factors, solar installations in Ranala can maintain high efficiency and longevity, taking full advantage of the location's excellent solar potential throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 109 locations across Sri Lanka. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Sri Lanka by location

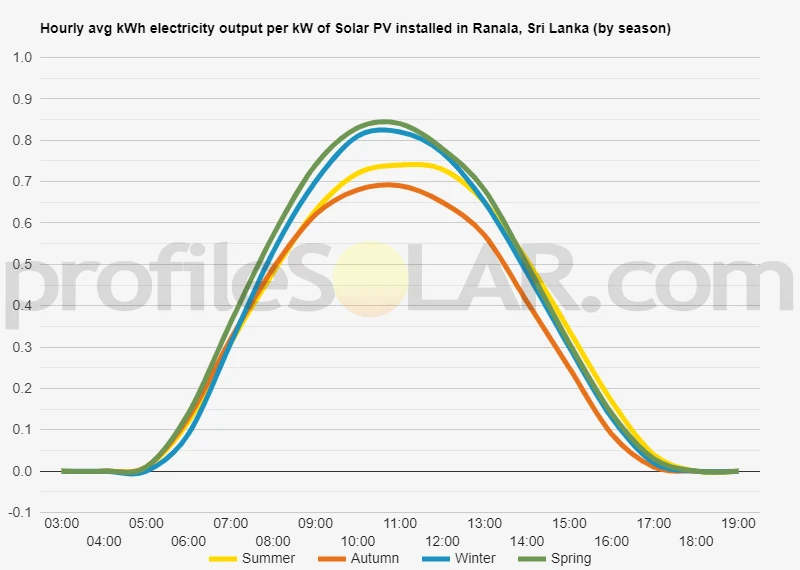

Solar output per kW of installed solar PV by season in Ranala

Seasonal solar PV output for Latitude: 6.9136, Longitude: 80.0298 (Ranala, Sri Lanka), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 6° South in Ranala, Sri Lanka

To maximize your solar PV system's energy output in Ranala, Sri Lanka (Lat/Long 6.9136, 80.0298) throughout the year, you should tilt your panels at an angle of 6° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ranala, Sri Lanka

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ranala, Sri Lanka. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 6° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
9° North in Summer	13° South in Autumn	22° South in Winter	1° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ranala, Sri Lanka

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ranala, Sri Lanka.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ranala, Sri Lanka

The topography around Ranala, Sri Lanka, is characterized by a diverse landscape that reflects the country's tropical climate and geological history. Located in the southwestern part of the island nation, Ranala sits in an area where the terrain transitions from coastal lowlands to the central highlands. The immediate vicinity of Ranala features gently rolling hills interspersed with flat plains. These undulating landscapes are typical of the region, with elevations gradually increasing as one moves eastward towards the interior of the country. The area is dotted with lush vegetation, including tropical forests and agricultural lands, primarily dedicated to rice cultivation and coconut plantations. Numerous small streams and rivers crisscross the landscape, contributing to the region's fertility and supporting local agriculture. These waterways have carved shallow valleys over time, creating a patchwork of slightly elevated areas and low-lying flood plains.

Potential for Large-scale Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The ideal locations would combine favorable topography with practical considerations for energy production and distribution. The gently sloping hillsides to the east of Ranala present promising opportunities for solar PV development. These areas offer good exposure to sunlight throughout the day and are less likely to be affected by flooding or extreme weather events. The slight incline of the land can also facilitate natural drainage, reducing maintenance issues for solar installations. Additionally, the flat plains surrounding Ranala could be suitable for extensive solar farms. These areas provide ample space for large arrays of solar panels and are easily accessible for construction and maintenance purposes. However, care must be taken to avoid prime agricultural land to prevent conflicts with food production. It's worth noting that any large-scale solar PV project would need to consider proximity to existing power infrastructure, local environmental impacts, and community needs. The areas closest to major roads and power lines would likely be more economically viable for development, as they would minimize the costs associated with energy transmission and site access. In conclusion, while the diverse topography around Ranala offers several potential sites for solar PV development, a comprehensive assessment considering both geographical and practical factors would be necessary to determine the most suitable locations for large-scale installations.

Sri Lanka solar PV Stats as a country

Sri Lanka ranks 55th in the world for cumulative solar PV capacity, with 434 total MW's of solar PV installed. Each year Sri Lanka is generating 20 Watts from solar PV per capita (Sri Lanka ranks 66th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Sri Lanka?

Yes, there are incentives for businesses wanting to install solar energy in Sri Lanka. The government of Sri Lanka has implemented a number of policies and programs to promote the use of renewable energy sources such as solar power. These include tax exemptions, subsidies, and other financial incentives for businesses that install solar systems. Additionally, the government has set up a Renewable Energy Fund which provides grants to support research and development activities related to renewable energy technologies.

Do you have more up to date information than this on incentives towards solar PV projects in Sri Lanka? Please reach out to us and help us keep this information current. Thanks!
