Location estimate

Jinshan

New Taipei City · Taiwan

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

6.20

kWh/day

Autumn

4.26

kWh/day

Winter

2.87

kWh/day

Spring

4.50

kWh/day

Shared scale: 0–7.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Jinshan, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 6.20 6.20 × 1 kWp = 6.20 kWh/day
Autumn 4.26 4.26 × 1 kWp = 4.26 kWh/day
Winter 2.87 2.87 × 1 kWp = 2.87 kWh/day
Spring 4.50 4.50 × 1 kWp = 4.50 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
6.20
Autumn · kWh/day
4.26
Winter · kWh/day
2.87
Spring · kWh/day
4.50

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 21 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
21°
Facing direction
South

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Jun, Jul, Aug
9°South
Autumn
Sep, Oct, Nov
28°South
Winter
Dec, Jan, Feb
39°South
Spring
Mar, Apr, May
17°South

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Jinshan, New Taipei City, Taiwan.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 9 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

9° tilt · South

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 28 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

28° tilt · South

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 39 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

39° tilt · South

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 17 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

17° tilt · South

Illustrative direction; exact azimuth not recorded.

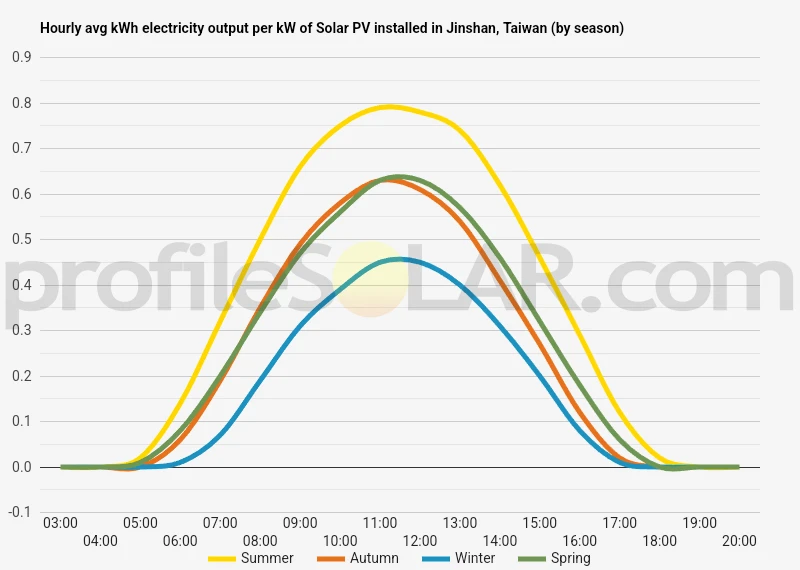

Historical hourly-by-season solar output chart for Jinshan, Taiwan. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Jinshan, Taiwan

Hourly profiles by season — Jinshan, Taiwan · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Jinshan, Taiwan · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Jinshan

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 2.68 m

Proportional side viewDesign sun: ≈ 41.49° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 0.81 m
Added margin
≈ 0 m
Gap including margin
≈ 0.81 m
Panel horizontal footprint
≈ 1.87 m
Panel vertical rise
≈ 0.72 m
Pitch before margin
≈ 2.68 m

Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
21°
Added margin
0 m
Latitude from the catalogue
25.061300000000000000° (Northern Hemisphere)
Panel horizontal footprint
1.8671608529944035 m
Panel vertical rise
0.7167358990906005 m
Calculated clear gap
0.810438393463967 m
Pitch before margin
2.6775992464583704 m
Gap including margin
0.810438393463967 m
Row pitch including margin
2.6775992464583704 m
Design solar elevation
41.48891715318634°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Jinshan

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

Jinshan, Taiwan is a reasonably good location for year-round solar energy production, but it's not perfect. The amount of electricity you can get from solar panels changes with the seasons. In summer, each kilowatt of installed solar can produce 6.20 kilowatt-hours per day. This drops to 4.26 in autumn and further to 2.87 in winter before rising back up to 4.50 in spring.

Read the full article

So while you'll get the most energy in the summer, even during winter - when sunlight is least abundant - you're still getting some power from your panels. To make sure your panels are as efficient as possible all year round at this location, they should be tilted at an angle of 21 degrees facing south. However, there might be some local factors that could affect how much power you get from your solar installation here: 1) Weather: Jinshan has a subtropical climate which means it experiences heavy rainfall especially during monsoon season (May-October). Rainy or cloudy days will decrease the amount of sunlight reaching your panels hence less electricity produced. Preventative measure: Install a system that allows for automatic adjustment and tracking of sun position throughout the day to maximize exposure during sunny hours. 2) Dust and Pollution: Dust or other particles can settle on the surface of solar panels reducing their efficiency. Preventative measure: Regular cleaning and maintenance schedule would help keep them running efficiently. 3) Shading: Any nearby buildings or trees could potentially cast shadows on your panel reducing its efficiency. Preventative measure: Carefully choose where to place your panels so they aren't shaded for any part of the day by surrounding structures or vegetation. In summary – yes, Jinshan is suitable for generating solar energy all year round with summer being particularly productive; however attention must be paid to weather patterns such as rainfalls along with regular maintenance against dust accumulation and shading issues.

Topography around Jinshan

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

Jinshan, Taiwan is located in the northern part of the country. The topography around this area is characterized by a mix of coastal plains and mountainous regions. The region has an uneven terrain with numerous hills and valleys. There are also several rivers flowing through the region.

Read the full topography description

As for solar PV installations, flat areas or slopes facing south (for Northern Hemisphere locations like Taiwan) are generally considered ideal to maximize sun exposure throughout the day. Considering Jinshan's topography, potential suitable areas could be: 1. Coastal Plains: These flat lands along the coast can be ideal for setting up large-scale solar farms due to their relatively even terrain. 2. Cleared Hilltops: While hilltops might not seem like an obvious choice due to gradient issues, they receive good sunlight exposure if trees and other obstructions are cleared. 3. Near Infrastructure: Areas near existing infrastructure such as roads or power lines would help reduce installation costs associated with connecting a new solar farm to the grid. However, it should be noted that site selection for large-scale solar projects involves various factors beyond just topography - including land use restrictions, environmental considerations (like biodiversity impacts), proximity to electrical grids for transmission efficiency and local climate conditions (amount of annual sunshine hours). Therefore, detailed feasibility studies would need to be conducted on any proposed sites before proceeding with development plans. Additionally, Taiwan is known for its high population density and limited available land which may pose challenges in identifying suitable locations for large scale solar PV farms without disturbing residential areas or valuable agricultural lands.

Technical location reference

Approximate map point used for Jinshan, Taiwan

This coordinate is the calculation reference for Jinshan, Taiwan. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
25.061300000000000000, 121.570500000000000000
Originally displayed coordinate
lat25.0613 / long121.5705

How the estimate works

How this Jinshan estimate was calculated

Here is how I calculated the location estimate for Jinshan, Taiwan.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Jinshan Location estimate includes and leaves out

Use the Jinshan figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
