Ban Chang, Rayong, Thailand, situated at latitude 12.7176 and longitude 101.0673, offers a promising location for solar energy generation throughout the year. This tropical setting benefits from consistent sunlight, with seasons primarily characterized by wet and dry periods rather than significant temperature variations.

Seasonal Solar Production

Solar panel performance in Ban Chang demonstrates remarkable consistency across all seasons. Spring yields the highest output at 5.94 kWh per day for each kilowatt of installed capacity, closely followed by winter at 5.86 kWh/day. Summer produces 5.62 kWh/day, while autumn sees a slight dip to 4.97 kWh/day. This minimal fluctuation indicates that Ban Chang is an excellent location for year-round solar energy generation.

Optimal Panel Positioning

For fixed solar panel installations in Ban Chang, Rayong, the ideal tilt angle to maximize year-round energy production is 12 degrees facing south. This angle has been calculated to optimize solar capture throughout the year, taking into account the Earth's elliptical orbit and the location's specific latitude.

Environmental Considerations

While Ban Chang's tropical climate is generally favorable for solar energy production, there are a few environmental factors to consider: 1. Rainfall: The region experiences a monsoon season, typically from May to October. Heavy rains can temporarily reduce solar panel efficiency. 2. Humidity: High humidity levels can lead to condensation on panels, potentially affecting their performance. 3. Dust and pollution: Being near industrial areas, Ban Chang may experience higher levels of airborne particles that can accumulate on panels. To mitigate these issues, consider implementing the following measures: - Install panels at a steeper angle to promote self-cleaning during rainfall. - Use hydrophobic coatings on panels to reduce water accumulation. - Implement a regular cleaning schedule, especially during drier periods. - Consider automated cleaning systems for larger installations. By addressing these factors, solar installations in Ban Chang can maintain high efficiency and capitalize on the location's excellent solar potential throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 88 locations across Thailand. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Thailand by location

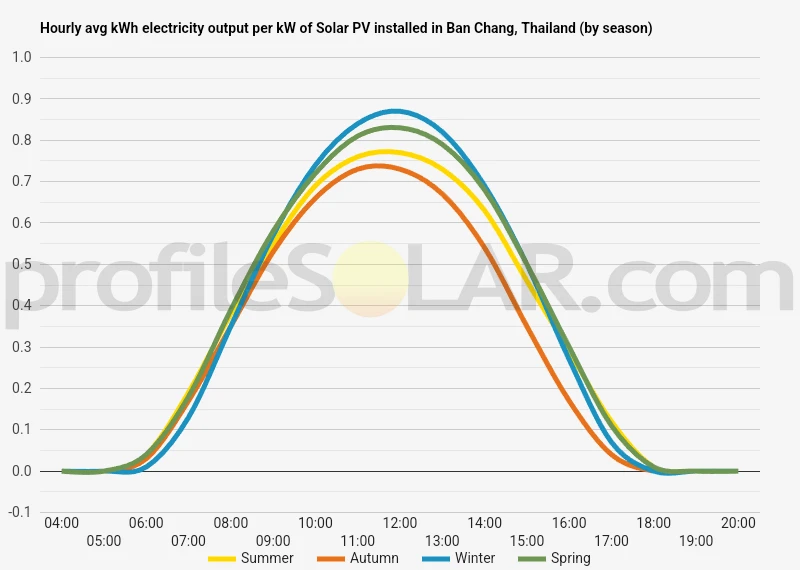

Solar output per kW of installed solar PV by season in Ban Chang

Seasonal solar PV output for Latitude: 12.7176, Longitude: 101.0673 (Ban Chang, Thailand), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 12° South in Ban Chang, Thailand

To maximize your solar PV system's energy output in Ban Chang, Thailand (Lat/Long 12.7176, 101.0673) throughout the year, you should tilt your panels at an angle of 12° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ban Chang, Thailand

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ban Chang, Thailand. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 12° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
4° North in Summer	19° South in Autumn	28° South in Winter	6° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ban Chang, Thailand

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ban Chang, Thailand.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ban Chang, Thailand

The topography around Ban Chang, Thailand, is characterized by a combination of coastal lowlands and gently rolling hills. This area, located in Rayong Province along the eastern coast of the Gulf of Thailand, features a relatively flat landscape near the shoreline that gradually rises as you move inland. The terrain is primarily composed of sandy beaches, agricultural fields, and scattered patches of tropical vegetation. As you venture away from the coast, the landscape becomes slightly more undulating, with low hills and shallow valleys interspersed throughout the region. These hills rarely exceed 100 meters in elevation, providing a subtle contrast to the flatter coastal areas. The soil in this region is generally fertile, supporting various agricultural activities and natural vegetation. Several small rivers and streams flow through the area, creating a network of waterways that contribute to the local ecosystem and agricultural practices. These water bodies have shaped the landscape over time, carving gentle valleys and depositing sediment in the lowland areas.

Suitability for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The gently rolling hills and open agricultural lands surrounding Ban Chang offer promising potential for solar energy development. The areas slightly inland from the coast, where the terrain begins to rise, could be particularly well-suited for solar PV projects. These locations typically receive ample sunlight throughout the year and are less prone to flooding or storm surge risks associated with coastal areas. The gentle slopes of the hills can also provide natural elevation changes that may help optimize solar panel placement and reduce shading issues. Agricultural lands that are less productive or have been set aside for alternative use could be ideal candidates for solar installations. These areas often have existing road access and are already cleared of dense vegetation, reducing the environmental impact and costs associated with site preparation. It's important to note that while the topography is generally favorable for solar PV development, other factors such as local regulations, grid connectivity, and environmental considerations would need to be carefully evaluated before determining the most suitable locations for large-scale solar projects in the region.

Thailand solar PV Stats as a country

Thailand ranks 26th in the world for cumulative solar PV capacity, with 3,049 total MW's of solar PV installed. This means that 2.90% of Thailand's total energy as a country comes from solar PV (that's 29th in the world). Each year Thailand is generating 44 Watts from solar PV per capita (Thailand ranks 54th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Thailand?

Yes, there are several incentives for businesses wanting to install solar energy in Thailand. The Thai government offers a number of tax incentives and subsidies for businesses that install solar energy systems. These include a 30% corporate income tax deduction on the cost of installing solar panels, as well as an exemption from import duties on certain components used in the installation process. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity generated by their solar system back to the grid at a premium rate. Finally, businesses may also be eligible for grants and other financial assistance from various government agencies and private organizations.

Do you have more up to date information than this on incentives towards solar PV projects in Thailand? Please reach out to us and help us keep this information current. Thanks!
