Chiang Rai, Thailand is a pretty good spot for generating solar energy throughout the year. This is because it's in the tropics, where sunlight is consistent for most of the year. The seasons here are more about wet and dry periods than drastic temperature changes.

If we look at how much electricity can be produced per kilowatt of installed solar panels, we see that each season produces a decent amount. In Summer you can expect around 5.09kWh/day, Autumn will give you around 4.77kWh/day, Winter goes up to 5.23kWh/day and Spring tops them all with an output of about 6.08kWh/day.

So when's the best time to generate solar energy here? Well based on these numbers, Spring would be your best bet as it has the highest daily output.

Now let's talk about setting up your panels - if they're fixed in place (meaning they don't move or adjust), tilting them towards an angle of 19 degrees South will give you maximum production from your solar installation over the entire year.

But like any location there could be local factors that might affect how well your panels work - things like weather patterns or environmental conditions could play a role in this part of Thailand.

While Chiang Rai doesn't have extreme weather conditions such as heavy snowfall or hail storms that could damage panels or block out sunlight completely; one potential issue could be dust accumulation during dry season which may reduce panel efficiency by blocking some sunlight reaching them; another issue might be heavy rainfall during monsoon season which could lead to temporary reduction in sun exposure but generally won’t cause long-term issues unless flooding occurs affecting system components – both scenarios can easily be managed with regular cleaning & maintenance checks ensuring optimal performance throughout year round operation.

Another thing to consider while installing solar PV system here would also include considering shade caused by nearby buildings and trees which should ideally be avoided to ensure maximum sunlight exposure.

So in summary, Chiang Rai is a pretty good spot for solar energy generation all year round. Just make sure your panels are angled correctly and that you're prepared for any local environmental or weather conditions, and you should be able to produce a decent amount of electricity from your installation.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 88 locations across Thailand. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Thailand by location

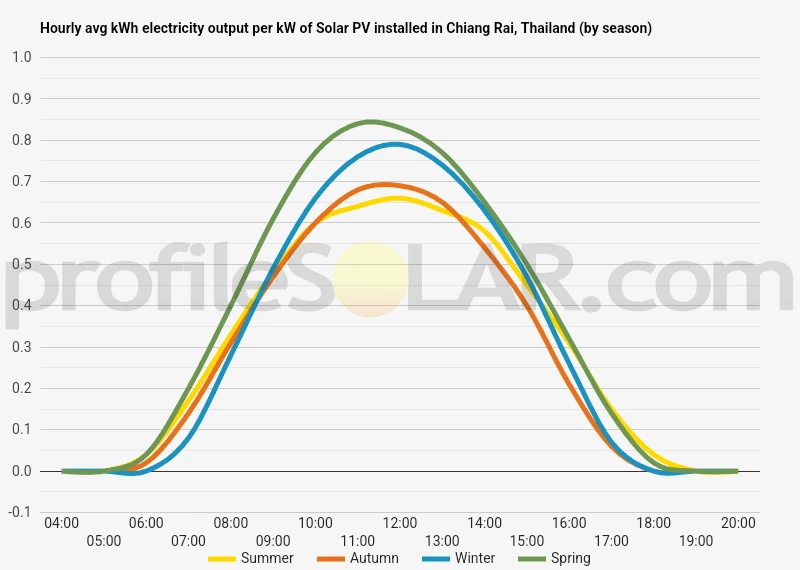

Solar output per kW of installed solar PV by season in Chiang Rai

Seasonal solar PV output for Latitude: 19.916, Longitude: 99.8297 (Chiang Rai, Thailand), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:

Average 5.09kWh/day in Summer.

Average 4.77kWh/day in Autumn.

Average 5.23kWh/day in Winter.

Average 6.08kWh/day in Spring.

Ideally tilt fixed solar panels 19° South in Chiang Rai, Thailand

To maximize your solar PV system's energy output in Chiang Rai, Thailand (Lat/Long 19.916, 99.8297) throughout the year, you should tilt your panels at an angle of 19° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

At Latitude: 19.916, Longitude: 99.8297, the ideal angle to tilt panels is 19° South

Seasonally adjusted solar panel tilt angles for Chiang Rai, Thailand

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chiang Rai, Thailand. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 19° South tilt angle throughout the year.

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chiang Rai, Thailand

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chiang Rai, Thailand.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chiang Rai, Thailand

Chiang Rai is located in the northernmost part of Thailand. The topography around Chiang Rai is largely mountainous and hilly, with the highest peak, Doi Tung, reaching over 2,000 meters. The region also has numerous river valleys, including those formed by the Kok and Mekong Rivers.

Despite this mountainous terrain, there are flat areas suitable for large-scale solar PV installations. These include the valley regions along rivers where agricultural activities are predominant. Additionally, some of the lower hill slopes that get ample sunlight could potentially be used for solar farms.

The climate in Chiang Rai is tropical savannah with a dry season from November to April which makes it an ideal location for generating solar power due to high levels of sunlight during these months.

However, suitability would also depend on other factors such as land usage rights (whether they're protected forests or agricultural lands), proximity to existing electrical infrastructure for ease of connecting generated power back into the grid etc.

For a more accurate assessment though one would need to conduct a detailed feasibility study taking into account all these factors plus local regulations and policies related to renewable energy projects.

Thailand solar PV Stats as a country

Thailand ranks 26th in the world for cumulative solar PV capacity, with 3,049 total MW's of solar PV installed. This means that 2.90% of Thailand's total energy as a country comes from solar PV (that's 29th in the world). Each year Thailand is generating 44 Watts from solar PV per capita (Thailand ranks 54th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Thailand?

Yes, there are several incentives for businesses wanting to install solar energy in Thailand. The Thai government offers a number of tax incentives and subsidies for businesses that install solar energy systems. These include a 30% corporate income tax deduction on the cost of installing solar panels, as well as an exemption from import duties on certain components used in the installation process. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity generated by their solar system back to the grid at a premium rate. Finally, businesses may also be eligible for grants and other financial assistance from various government agencies and private organizations.

Do you have more up to date information than this on incentives towards solar PV projects in Thailand? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.

Helping you assess viability of solar PV for your site

Calculate Your Optimal Solar Panel Tilt Angle: A Comprehensive Guide

Enhance your solar panel's performance with our in-depth guide. Determine the best tilt angle using hard data, debunk common misunderstandings, and gain insight into how your specific location affects solar energy production.
