Khao Lak, Phang Nga, Thailand, situated at 8.6146° N, 98.2365° E, presents a promising location for solar energy generation throughout the year. This tropical paradise benefits from consistent sunlight, with its seasons primarily characterized by wet and dry periods rather than traditional temperature-based seasons.

Seasonal Solar Performance

The solar energy potential in Khao Lak varies slightly across the meteorological seasons: Spring stands out as the most productive season, with an impressive 6.15 kWh/day per kW of installed solar capacity. Winter follows closely behind at 5.96 kWh/day, while summer yields 5.27 kWh/day. Autumn sees a slight dip in production, generating 4.75 kWh/day. These figures indicate that Khao Lak maintains strong solar potential year-round, with spring and winter being particularly favorable for energy generation.

Optimal Panel Positioning

For fixed solar panel installations in Khao Lak, Phang Nga, the ideal tilt angle to maximize year-round production is 8 degrees facing South. This relatively shallow angle reflects the location's proximity to the equator, where the sun's path remains high in the sky throughout the year.

Environmental Considerations

While Khao Lak offers excellent conditions for solar energy production, there are a few environmental factors to consider: 1. Monsoon season: Khao Lak experiences a monsoon season from May to October, which can lead to increased cloud cover and rainfall, potentially reducing solar output. 2. Humidity: The tropical climate means high humidity levels, which can lead to condensation on solar panels, potentially affecting their efficiency. To mitigate these factors, consider the following preventative measures:

• Install panels at the optimal angle to maximize exposure and promote natural cleaning by rainfall.
• Use high-quality, weather-resistant solar panels designed for tropical climates.
• Implement a regular cleaning and maintenance schedule to combat the effects of humidity and potential debris accumulation.

Despite these considerations, Khao Lak remains an excellent location for solar energy production. Its consistent sunlight and favorable positioning make it an ideal spot for harnessing the power of the sun year-round.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 88 locations across Thailand. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Thailand by location

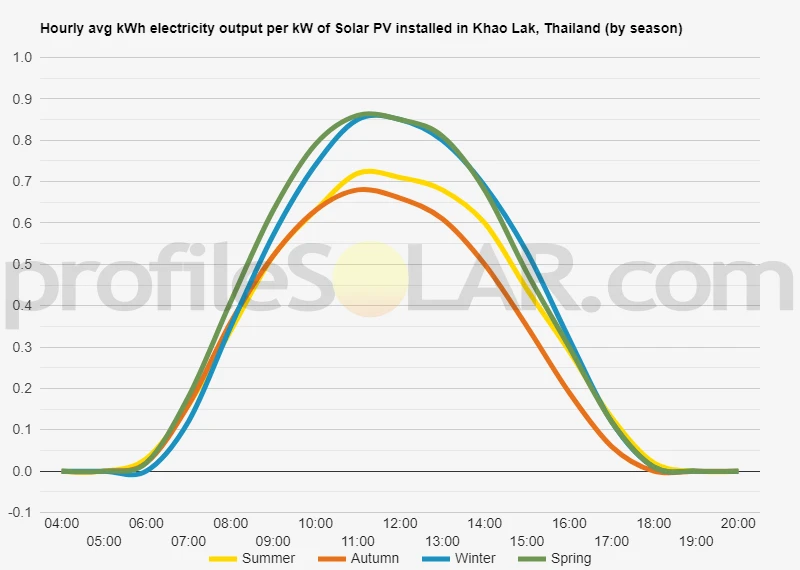

Solar output per kW of installed solar PV by season in Khao Lak

Seasonal solar PV output for Latitude: 8.6146, Longitude: 98.2365 (Khao Lak, Thailand), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 8° South in Khao Lak, Thailand

To maximize your solar PV system's energy output in Khao Lak, Thailand (Lat/Long 8.6146, 98.2365) throughout the year, you should tilt your panels at an angle of 8° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Khao Lak, Thailand

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Khao Lak, Thailand. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 8° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
7° North in Summer	14° South in Autumn	24° South in Winter	3° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Khao Lak, Thailand

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Khao Lak, Thailand.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Khao Lak, Thailand

The topography around Khao Lak, Thailand, is characterized by a diverse and picturesque landscape that combines coastal features with inland hills and mountains. Situated along the Andaman Sea coast in Phang Nga Province, Khao Lak is nestled between the shoreline and the lush, forested hills that rise to the east. Along the coast, Khao Lak boasts long stretches of sandy beaches that gently slope into the sea. These beaches are often fringed by casuarina trees and tropical vegetation. Moving inland from the shore, the terrain gradually rises, transitioning into a series of rolling hills and valleys. This undulating landscape is covered in dense tropical rainforest, creating a verdant backdrop to the coastal areas. Further east, the terrain becomes more rugged and mountainous, with the hills rising to form part of the Phuket mountain range. These mountains, while not extremely high, provide a dramatic contrast to the coastal plains and contribute to the area's scenic beauty. The highest peak in the vicinity reaches around 1,000 meters above sea level.

Potential Areas for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would combine ample sunlight exposure, relatively flat terrain, and minimal environmental impact. The coastal plains and gently sloping areas just inland from Khao Lak could potentially offer suitable sites for solar PV projects. These areas receive abundant sunlight and have less dense vegetation compared to the forested hills. However, care must be taken to avoid ecologically sensitive areas and prime agricultural land. Another promising option might be the cleared or partially developed areas slightly further inland, where the terrain is still relatively flat but not as close to the shoreline. These locations could provide the necessary space for large-scale installations while minimizing disruption to the natural coastal ecosystem. It's important to note that any large-scale solar development in this region would need to carefully consider environmental impacts, local regulations, and the area's importance for tourism. Proper planning and environmental assessments would be crucial to ensure that such projects are sustainable and in harmony with the local landscape and economy.

Thailand solar PV Stats as a country

Thailand ranks 26th in the world for cumulative solar PV capacity, with 3,049 total MW's of solar PV installed. This means that 2.90% of Thailand's total energy as a country comes from solar PV (that's 29th in the world). Each year Thailand is generating 44 Watts from solar PV per capita (Thailand ranks 54th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Thailand?

Yes, there are several incentives for businesses wanting to install solar energy in Thailand. The Thai government offers a number of tax incentives and subsidies for businesses that install solar energy systems. These include a 30% corporate income tax deduction on the cost of installing solar panels, as well as an exemption from import duties on certain components used in the installation process. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity generated by their solar system back to the grid at a premium rate. Finally, businesses may also be eligible for grants and other financial assistance from various government agencies and private organizations.

Do you have more up to date information than this on incentives towards solar PV projects in Thailand? Please reach out to us and help us keep this information current. Thanks!
