Solar Energy Potential in Nakhon Phanom, Thailand

Nakhon Phanom, Thailand, located at 17.4089, 104.7769, presents a highly favorable location for solar energy generation throughout the year. This northeastern Thai province benefits from its tropical location, where sunlight remains consistent across seasons, with weather patterns primarily divided between wet and dry periods rather than traditional four-season cycles. The solar energy production potential shows remarkable consistency across all meteorological seasons. Spring yields the highest output at 5.97 kWh per day for each kilowatt of installed capacity. Winter follows closely with 5.68 kWh/day, while summer produces 5.61 kWh/day. Autumn shows the lowest but still substantial output at 5.34 kWh/day per kilowatt installed. This minimal seasonal variation (less than 12% difference between highest and lowest producing seasons) makes Nakhon Phanom an excellent candidate for year-round solar energy harvesting. For maximizing energy capture, fixed solar panels in this location should be installed at a 17-degree tilt facing South. This specific angle has been calculated to optimize year-round solar energy collection based on the location's latitude and seasonal solar patterns.

Environmental Considerations

Several environmental factors could potentially impact solar production in Nakhon Phanom:

• Monsoon season (approximately May to October) brings heavy rainfall and increased cloud cover, which may temporarily reduce solar efficiency during these months.
• High humidity levels typical of tropical climates can cause dust and particulates to adhere to panel surfaces more readily, potentially reducing efficiency if not addressed.
• Agricultural burning in surrounding areas during certain seasons can create haze that diminishes solar radiation reaching the panels.

To mitigate these challenges, solar installations in Nakhon Phanom should incorporate several preventative measures. Regular cleaning schedules should be implemented, especially during the dry season when dust accumulation is highest. Self-cleaning panel technologies or hydrophobic coatings can help maintain efficiency during rainy periods. Additionally, slightly oversizing systems can help compensate for reduced production during the cloudier monsoon months. Despite these considerations, the consistent year-round solar radiation and minimal seasonal variation make Nakhon Phanom an ideal location for solar PV installations, with annual production figures that would be enviable in many other regions of the world.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 88 locations across Thailand. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Thailand by location

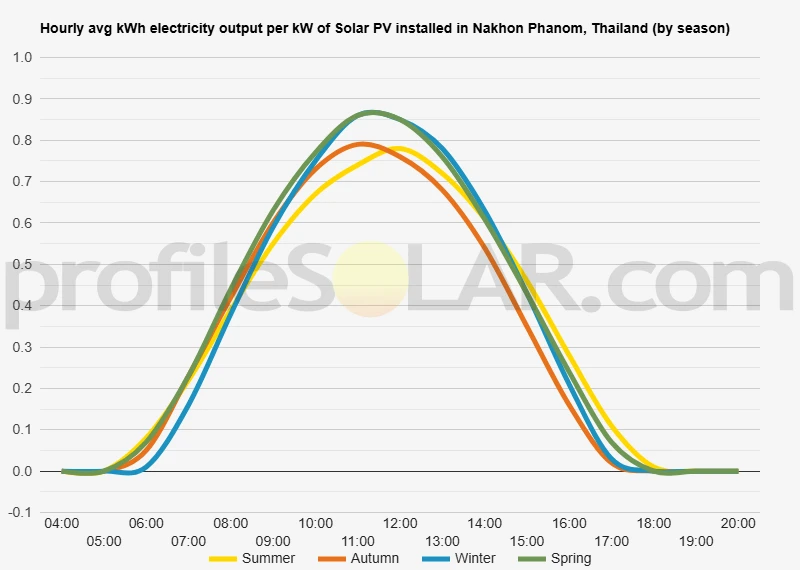

Solar output per kW of installed solar PV by season in Nakhon Phanom

Seasonal solar PV output for Latitude: 17.4089, Longitude: 104.7769 (Nakhon Phanom, Thailand), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 17° South in Nakhon Phanom, Thailand

To maximize your solar PV system's energy output in Nakhon Phanom, Thailand (Lat/Long 17.4089, 104.7769) throughout the year, you should tilt your panels at an angle of 17° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Nakhon Phanom, Thailand

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Nakhon Phanom, Thailand. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 17° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
1° South in Summer	24° South in Autumn	33° South in Winter	11° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Nakhon Phanom, Thailand

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Nakhon Phanom, Thailand.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Nakhon Phanom, Thailand

Topography of Nakhon Phanom

Nakhon Phanom province is situated along the western bank of the Mekong River in northeastern Thailand, forming a natural boundary with Laos. The landscape is characterized by a mix of flat alluvial plains and gently rolling terrain. The eastern portion of the province, where the city of Nakhon Phanom itself is located, features primarily lowland areas with elevations typically ranging from 140 to 160 meters above sea level. The Mekong River valley dominates the eastern border, creating fertile floodplains that have historically supported agriculture in the region. Moving westward from the river, the terrain gradually rises into a series of low hills and plateaus that are part of the broader Khorat Plateau region. These elevated areas rarely exceed 300 meters in height but provide subtle topographic variation across the landscape. Several smaller rivers and streams flow eastward through the province to join the Mekong, creating natural drainage channels and further subdividing the terrain. The Songkhram River is one notable tributary that flows through the northern parts of the province.

Vegetation and Land Use

The natural vegetation of Nakhon Phanom consists primarily of tropical dry forests, though much of the original forest cover has been converted to agricultural use. Rice paddies dominate the lowland areas, particularly in the fertile Mekong floodplain, while upland areas support a mix of field crops and remnant forest patches. The province experiences a tropical savanna climate with distinct wet and dry seasons. The terrain remains relatively green during the rainy season but can become quite parched during the dry months, particularly in areas away from the river.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, the most suitable areas in the Nakhon Phanom region would be the gently elevated terrain away from the Mekong River floodplain. These areas offer several advantages: The slightly elevated plateaus and hills in the central and western portions of the province provide relatively flat expanses that are above flood levels, reducing the risk of seasonal inundation that could damage solar infrastructure. These areas typically have sparse vegetation or are already used for non-intensive agriculture, making land conversion more straightforward. The upland areas also tend to have fewer obstructions that could cast shadows on solar arrays, an important consideration for maximizing energy production. The gentle slopes found in these regions can be advantageous for solar installations, as they provide natural drainage while still being flat enough for efficient panel arrangement. Areas to avoid would include the immediate Mekong River floodplain, which faces periodic flooding risks, and any locations with dense forest cover or significant cultural importance. Additionally, some of the lowest-lying areas near tributaries and streams would be less suitable due to potential seasonal flooding and higher humidity levels that could affect equipment longevity. The central districts of the province, particularly those set back 10-15 kilometers from the Mekong, offer a good balance of accessible terrain, reasonable land prices, and proximity to existing infrastructure such as roads and transmission lines that would be necessary for solar development.

Thailand solar PV Stats as a country

Thailand ranks 26th in the world for cumulative solar PV capacity, with 3,049 total MW's of solar PV installed. This means that 2.90% of Thailand's total energy as a country comes from solar PV (that's 29th in the world). Each year Thailand is generating 44 Watts from solar PV per capita (Thailand ranks 54th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Thailand?

Yes, there are several incentives for businesses wanting to install solar energy in Thailand. The Thai government offers a number of tax incentives and subsidies for businesses that install solar energy systems. These include a 30% corporate income tax deduction on the cost of installing solar panels, as well as an exemption from import duties on certain components used in the installation process. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity generated by their solar system back to the grid at a premium rate. Finally, businesses may also be eligible for grants and other financial assistance from various government agencies and private organizations.

Do you have more up to date information than this on incentives towards solar PV projects in Thailand? Please reach out to us and help us keep this information current. Thanks!
