Ratchaburi, Thailand: Solar Energy Potential

Ratchaburi, Thailand, located at coordinates 13.5145, 99.9334, offers promising conditions for solar power generation throughout the year. This tropical location benefits from relatively consistent sunlight patterns across seasons, which are primarily defined by wet and dry periods rather than temperature extremes.

Seasonal Solar Production

The solar energy generation potential in Ratchaburi varies somewhat throughout the year, with the highest output occurring during spring when panels can generate approximately 6.06 kWh per day for each kilowatt of installed capacity. Winter follows closely with 5.74 kWh/day, while summer produces 5.44 kWh/day. Autumn shows the lowest generation at 4.57 kWh/day per installed kilowatt. This seasonal variation indicates that March through May (spring) represents the peak solar production period in Ratchaburi, making it an excellent time for maximum energy harvesting. The relatively small difference between the highest and lowest producing seasons (approximately 1.5 kWh/day) demonstrates the location's year-round suitability for solar energy.

Optimal Panel Installation

For fixed solar panel installations in Ratchaburi, the ideal tilt angle to maximize year-round energy production is 13 degrees facing South. This specific angle has been calculated by analyzing daily solar elevation patterns at this latitude and weighting them according to the location's solar energy potential throughout the year.

Environmental Considerations

Several environmental factors could potentially impact solar energy production in Ratchaburi:

• Monsoon season: Thailand experiences a pronounced rainy season (typically May to October) which can reduce solar output due to increased cloud cover and rainfall. Installing panels with high-efficiency ratings that perform better in diffuse light conditions can help mitigate this impact.
• Dust and pollution: Agricultural activities and industrial development in the region may contribute to airborne particles that can accumulate on panels. Regular cleaning maintenance and possibly automated cleaning systems are recommended.
• High humidity: The tropical climate brings high humidity levels that can accelerate weathering of components. Using marine-grade materials and proper sealing for electrical connections will extend system longevity.
• Occasional flooding: Low-lying areas may experience flooding during heavy monsoon rains. Elevating mounting structures and ensuring proper drainage around ground-mounted systems can prevent damage.

Despite these considerations, Ratchaburi's consistent solar radiation throughout the year makes it a highly suitable location for solar PV installations. With proper system design accounting for local conditions, solar energy systems here can deliver reliable power generation with relatively predictable seasonal variations.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 88 locations across Thailand. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Thailand by location

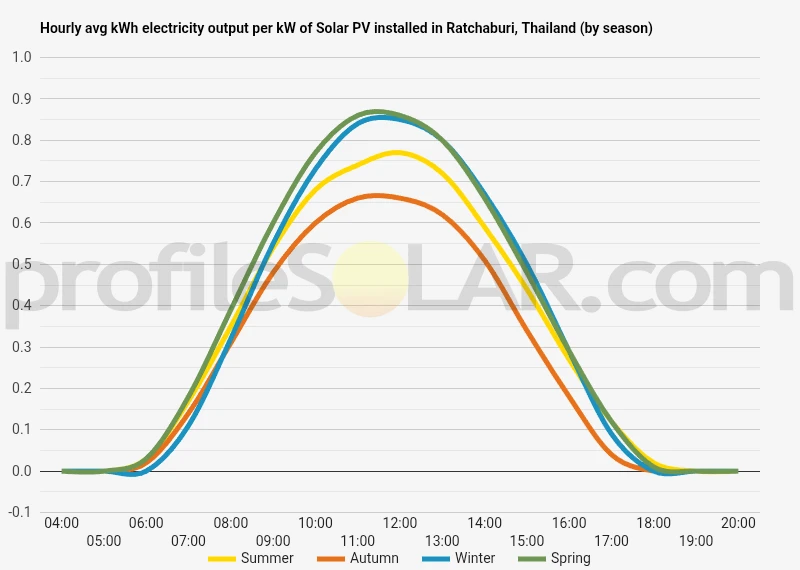

Solar output per kW of installed solar PV by season in Ratchaburi

Seasonal solar PV output for Latitude: 13.5145, Longitude: 99.9334 (Ratchaburi, Thailand), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 13° South in Ratchaburi, Thailand

To maximize your solar PV system's energy output in Ratchaburi, Thailand (Lat/Long 13.5145, 99.9334) throughout the year, you should tilt your panels at an angle of 13° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ratchaburi, Thailand

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ratchaburi, Thailand. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 13° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
3° North in Summer	19° South in Autumn	29° South in Winter	7° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ratchaburi, Thailand

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ratchaburi, Thailand.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ratchaburi, Thailand

Ratchaburi, situated in western Thailand, presents a diverse topographical landscape characterized by a mix of plains, hills, and mountains. The eastern part of the province consists mainly of flat alluvial plains formed by the Mae Klong River, which flows through the region. This fertile area gradually transitions westward into increasingly elevated terrain, eventually reaching the Tenasserim Hills along the Myanmar border.

Plains and River Valleys

The central and eastern portions of Ratchaburi feature expansive lowland plains, particularly around the provincial capital. These areas have elevations typically ranging from 5 to 30 meters above sea level. The Mae Klong River and its tributaries have created fertile floodplains that have historically supported agriculture in the region. These flat areas extend eastward toward the Gulf of Thailand, creating a gradual slope across the province.

Uplands and Hills

Moving westward from the provincial capital, the landscape begins to undulate with increasing frequency. The central-western parts of Ratchaburi feature rolling hills and elevated plateaus, with elevations ranging from 100 to 300 meters. These transitional zones create a patchwork of valleys and hillocks that characterize much of the middle portion of the province.

Mountains

The western reaches of Ratchaburi province contain the most dramatic topography, with mountains rising to heights exceeding 1,000 meters in some areas. These mountains form part of the Tenasserim Range, which creates a natural border between Thailand and Myanmar. The terrain here is rugged and steep, with narrow valleys cutting between forested mountain slopes. Notable peaks in this region include Khao Chong Krachok and parts of the Kaeng Krachan mountain system.

Solar PV Suitability

For large-scale solar photovoltaic installations, the eastern and central plains of Ratchaburi offer the most promising conditions. These areas combine several advantageous factors: The flat or gently sloping terrain in the eastern plains minimizes the need for extensive land preparation and reduces construction costs. These areas also typically have good accessibility via existing road networks, facilitating both construction and maintenance operations. Areas around Amphoe Mueang Ratchaburi (the provincial capital) and extending eastward toward Damnoen Saduak district present particularly favorable conditions for solar development. These locations combine relatively low population density in rural areas with proximity to existing electrical infrastructure and transportation networks. The central plains also offer the benefit of minimal shading from topographical features, ensuring consistent solar exposure throughout the day. These regions generally experience less cloud cover compared to the mountainous western areas, where orographic lifting can increase cloud formation and precipitation. The upland areas in the central part of the province could also support solar installations, though with potentially higher development costs due to the need for terrain modifications. These slightly elevated areas might benefit from reduced flood risk compared to the lowest-lying plains. In contrast, the western mountainous regions would present significant challenges for large-scale solar development due to steep slopes, limited accessibility, and potential environmental concerns related to forest clearing. These areas are better suited for conservation rather than industrial development. From an environmental perspective, prioritizing already-disturbed agricultural lands or brownfield sites for solar development would minimize ecological impacts while providing economic benefits to local communities.

Thailand solar PV Stats as a country

Thailand ranks 26th in the world for cumulative solar PV capacity, with 3,049 total MW's of solar PV installed. This means that 2.90% of Thailand's total energy as a country comes from solar PV (that's 29th in the world). Each year Thailand is generating 44 Watts from solar PV per capita (Thailand ranks 54th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in Thailand?

Yes, there are several incentives for businesses wanting to install solar energy in Thailand. The Thai government offers a number of tax incentives and subsidies for businesses that install solar energy systems. These include a 30% corporate income tax deduction on the cost of installing solar panels, as well as an exemption from import duties on certain components used in the installation process. Additionally, businesses can benefit from net metering policies which allow them to sell excess electricity generated by their solar system back to the grid at a premium rate. Finally, businesses may also be eligible for grants and other financial assistance from various government agencies and private organizations.

Do you have more up to date information than this on incentives towards solar PV projects in Thailand? Please reach out to us and help us keep this information current. Thanks!
