Arima, Trinidad and Tobago, located in the tropics, offers a promising environment for solar PV energy generation. This location benefits from consistent sunlight throughout the year, with seasons primarily characterized by wet and dry periods rather than traditional temperature-based seasons.

Year-round Solar Energy Potential

The solar energy output at this location remains relatively stable across all seasons, with only minor fluctuations:

• Summer: 5.73 kWh/day
• Autumn: 6.01 kWh/day
• Winter: 5.50 kWh/day
• Spring: 5.91 kWh/day

These figures indicate that Arima is an excellent location for year-round solar energy production. The highest output occurs during autumn, while winter sees a slight dip but still maintains strong production levels.

Optimal Panel Installation

For fixed panel installations in Arima, the ideal tilt angle to maximize year-round solar production is 10 degrees facing South. This angle takes into account the location's latitude and the Earth's elliptical orbit to ensure optimal exposure to sunlight throughout the year.

Environmental and Weather Considerations

While Arima's tropical climate is generally favorable for solar energy production, there are some factors to consider:

1. Rainfall: The region experiences a wet season, typically from June to December. Heavy rainfall can temporarily reduce solar panel efficiency. To mitigate this, ensure proper drainage systems are in place and consider using hydrophobic coatings on panels.

2. Humidity: High humidity levels can lead to condensation on panels, potentially affecting their performance. Regular cleaning and maintenance can help address this issue.

3. Tropical storms: Although less frequent than in other Caribbean areas, tropical storms can occur. Ensure that panel mounting systems are sturdy and designed to withstand strong winds.

4. Vegetation: Rapid plant growth in tropical climates can lead to shading issues. Regular trimming of nearby trees and vegetation is essential to maintain optimal solar exposure.

By addressing these factors during installation and maintenance, solar PV systems in Arima can achieve high levels of energy production throughout the year, making it an ideal location for solar energy investments.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 34 locations across Trinidad And Tobago. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Trinidad And Tobago by location

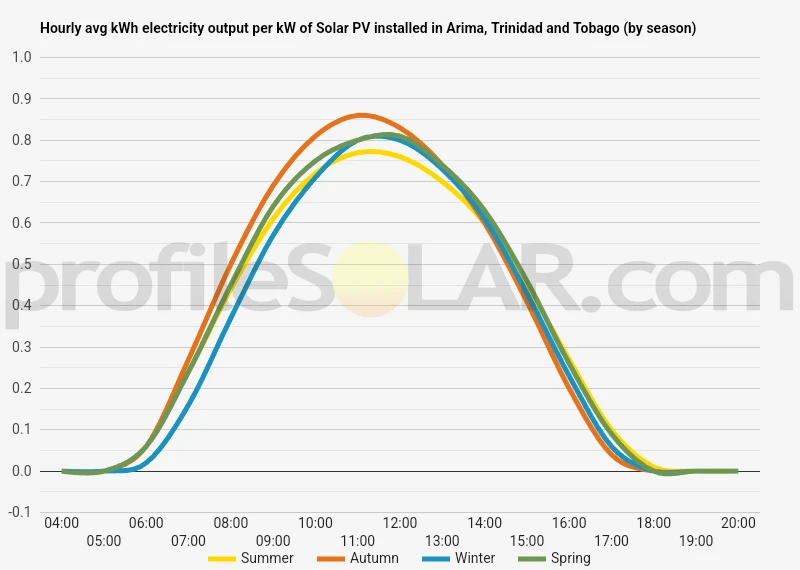

Solar output per kW of installed solar PV by season in Arima

Seasonal solar PV output for Latitude: 10.6356, Longitude: -61.2834 (Arima, Trinidad And Tobago), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Arima, Trinidad And Tobago

To maximize your solar PV system's energy output in Arima, Trinidad And Tobago (Lat/Long 10.6356, -61.2834) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Arima, Trinidad And Tobago

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Arima, Trinidad And Tobago. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	16° South in Autumn	26° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Arima, Trinidad And Tobago

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Arima, Trinidad And Tobago.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Arima, Trinidad And Tobago

Topography of Arima and Surrounding Areas

Arima, located in Trinidad and Tobago, is situated in a region characterized by diverse topography. The town itself lies in a valley nestled within the Northern Range, a mountain chain that runs along the northern coast of Trinidad. This range features steep, forested slopes and peaks that can reach heights of over 900 meters (3,000 feet) above sea level. To the north of Arima, the terrain becomes increasingly mountainous, with dense tropical forests covering much of the landscape. These mountains are part of the Northern Range and create a rugged, undulating topography that is not easily accessible or developed. South of Arima, the land gradually transitions into gentler slopes and eventually into the flat plains of central Trinidad. This area is known as the East-West Corridor and is more densely populated and developed compared to the mountainous regions to the north. To the east and west of Arima, the topography varies between rolling hills and small valleys, with numerous streams and rivers cutting through the landscape. These areas are a mix of forested regions, agricultural lands, and small settlements.

Potential for Large-Scale Solar PV

When considering areas near Arima for large-scale solar photovoltaic (PV) installations, the most suitable locations would likely be found to the south and southeast of the town. These areas offer several advantages for solar energy development: Firstly, the terrain in these directions becomes flatter and more open, providing larger contiguous spaces for solar panel arrays. The gentler slopes and plains of the East-West Corridor offer more stable ground for construction and easier access for maintenance. Secondly, these areas receive more consistent sunlight throughout the day compared to the northern regions, which may be affected by the shadows cast by the Northern Range mountains. The open landscape allows for maximum sun exposure, which is crucial for efficient solar energy production. Additionally, the southern regions are generally more developed, with better infrastructure and road networks. This would facilitate the transportation of equipment and connection to the existing power grid. However, it's important to note that any large-scale solar PV project would need to carefully consider land use, as much of the flat land in Trinidad is used for agriculture or urban development. Environmental impact assessments and community consultations would be necessary to ensure that solar installations do not negatively affect local ecosystems or communities. While the mountainous areas to the north of Arima may offer some potential for smaller-scale solar installations, they are generally less suitable for large-scale projects due to the challenging terrain, limited accessibility, and potential for shading from the surrounding peaks.
