Solar PV Analysis of Chaguanas, Trinidad And Tobago
Chaguanas, Trinidad and Tobago is a great location for generating solar energy all year round. The sun shines consistently throughout the year due to its tropical location, making it an ideal place for solar panels. In terms of seasons, autumn seems to be the best time for solar energy production with an output of 6.01kWh per day per kW of installed solar, followed by spring (5.91kWh/day), summer (5.73kWh/day), and winter (5.50kWh/day).
If you're installing fixed panel solar systems at this location, the best angle to tilt your panels would be 10 degrees towards the South. This will help maximize your total year-round production from your solar system.
However, there might be some local factors that could affect how much energy you can generate from your panels in Chaguanas such as weather conditions like heavy rain or strong winds during wet seasons which could cause dirt build-up or physical damage on the panels respectively; and shading caused by trees or buildings especially if they are located south of where you plan to install your panels since they are tilted towards that direction.
To ensure greater energy production despite these factors:
1) Regularly clean and maintain your panels especially after heavy rains to remove any dirt or debris that may have accumulated on them which can reduce their efficiency.
2) Install protective measures like sturdy mounts and frames for your panels so they can withstand strong winds without getting damaged.
3) Consider cutting back any tree branches or other obstructions that might cast shade over your panels especially during peak sunlight hours when they should be producing maximum power output.
4) If possible, choose a spot with minimal shading from nearby structures when installing your system but make sure it's still secure against potential theft since Chaguanas is also known for having high crime rates.
By considering these preventative measures during installation and maintaining regular upkeep afterwards, you can ensure your solar system in Chaguanas, Trinidad and Tobago operates at its best capacity all year round.
Note: The Tropics are located between 23.5° North and -23.5° South of the equator.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 34 locations across Trinidad And Tobago. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in Trinidad And Tobago by location

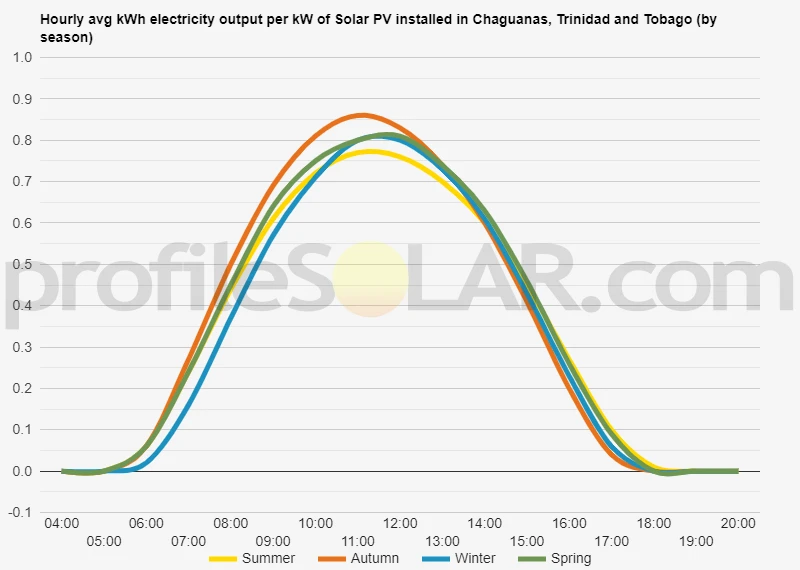

Solar output per kW of installed solar PV by season in Chaguanas
Seasonal solar PV output for Latitude: 10.5111, Longitude: -61.4237 (Chaguanas, Trinidad And Tobago), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 10° South in Chaguanas, Trinidad And Tobago
To maximize your solar PV system's energy output in Chaguanas, Trinidad And Tobago (Lat/Long 10.5111, -61.4237) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Chaguanas, Trinidad And Tobago
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chaguanas, Trinidad And Tobago. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 5° North in Summer | 16° South in Autumn | 26° South in Winter | 4° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Chaguanas, Trinidad And Tobago
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chaguanas, Trinidad And Tobago.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Chaguanas, Trinidad And Tobago
Chaguanas is located on the west-central coast of Trinidad, the larger island of Trinidad and Tobago. The terrain in this region is mostly flat with some small hills, making it suitable for agriculture and urban development. It's close to the Gulf of Paria, which could impact wind speeds and humidity levels.
The area around Chaguanas has a tropical climate with high temperatures throughout the year. This makes it potentially suitable for large-scale solar PV installations due to high solar irradiance levels.
However, several factors need to be considered when determining suitability for large-scale solar PV:
1) Land Availability: Large-scale solar projects require significant amounts of land. While there may be available land in or near Chaguanas, other uses (e.g., agriculture or housing) may compete with potential solar sites.
2) Sunlight Exposure: Although the region gets plenty of sunlight overall, specific site selection will depend on local conditions such as cloud cover patterns and shading from vegetation or buildings.
3) Infrastructure Access: Proximity to power grid infrastructure is important so that generated electricity can be efficiently transmitted without too much loss.
4) Environmental Impact: Any project should also consider potential impacts on local ecosystems and make efforts to minimize harm.
In terms of specific nearby areas suited for large scale Solar PV systems; flat open spaces with minimal shade like agricultural lands outside populated areas would be ideal. Areas near existing electrical infrastructure would also be beneficial due to ease of connecting to the grid.
Please note that actual feasibility studies would need to be conducted by professionals before any decisions are made regarding locations for large scale Solar PV installations.
