El Dorado, Tunapuna/Piarco, Trinidad and Tobago presents a highly favorable location for year-round solar photovoltaic energy generation. Located in the tropics at coordinates 10.6318°N, -61.3824°W, this area benefits from consistent sunlight throughout most of the year, with seasonal variations characterized more by wet and dry periods rather than the traditional four seasons experienced in temperate climates.

Solar Energy Production Potential

The solar energy output data for El Dorado demonstrates excellent year-round potential for solar PV installations. Autumn emerges as the most productive season, generating 6.01 kWh per day per kW of installed solar capacity. Spring follows closely with 5.95 kWh/day per kW, while summer produces 5.76 kWh/day per kW. Winter shows the lowest output at 5.44 kWh/day per kW, though this figure still represents strong solar potential compared to many locations worldwide. The relatively small variation between seasons - with only a 0.57 kWh difference between the highest and lowest producing seasons - makes this location exceptionally stable for solar energy planning. For optimal year-round energy capture, fixed solar panels should be installed at a 10-degree south-facing tilt angle to maximize total annual production.

Environmental and Weather Challenges

Despite the favorable solar conditions, several local factors could potentially impact solar energy production in El Dorado. The tropical climate brings specific challenges that require careful consideration during installation and ongoing maintenance. Humidity and Moisture The high humidity levels typical of Trinidad and Tobago can lead to moisture accumulation on solar panels, reducing their efficiency. Additionally, the combination of heat and humidity can accelerate corrosion of metal components and degrade electrical connections over time. Heavy Rainfall and Storm Activity The wet season brings intense rainfall that, while helpful for cleaning panels, can also create challenges. Heavy rains may cause temporary reductions in solar output, and the region's susceptibility to tropical storms and hurricanes poses risks to solar installations. Strong winds accompanying these weather events can damage panels or mounting systems if not properly secured. Dust and Atmospheric Particles Trade winds can carry dust and salt particles from the Atlantic Ocean, leading to accumulation on solar panel surfaces. This buildup reduces light transmission and decreases energy output over time.

Preventative Measures and Installation Strategies

Several strategies can help maximize solar energy production and system longevity in El Dorado's tropical environment.

• Install panels with adequate spacing to promote air circulation and reduce heat buildup
• Use marine-grade mounting hardware and electrical components designed to resist corrosion
• Implement robust grounding systems to protect against lightning strikes common in tropical regions
• Design mounting systems to withstand high wind loads typical of hurricane-prone areas
• Install panels at appropriate angles to promote self-cleaning during rainfall

Regular maintenance becomes particularly important in this environment. Establishing a routine cleaning schedule helps remove accumulated dust, salt, and organic matter. Using deionized water for cleaning prevents mineral deposits that could further reduce panel efficiency.

System Protection and Monitoring

Advanced monitoring systems can help identify performance issues quickly, allowing for prompt maintenance interventions. Installing surge protection devices becomes essential given the frequency of electrical storms in tropical regions. Consider incorporating weather monitoring capabilities to predict and prepare for severe weather events. This allows system operators to take protective measures when necessary, such as adjusting panel angles or temporarily shutting down systems during extreme conditions. The consistently strong solar output throughout the year, combined with proper installation techniques and maintenance practices, makes El Dorado an excellent location for solar PV investments despite the tropical climate challenges.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 34 locations across Trinidad And Tobago. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Trinidad And Tobago by location

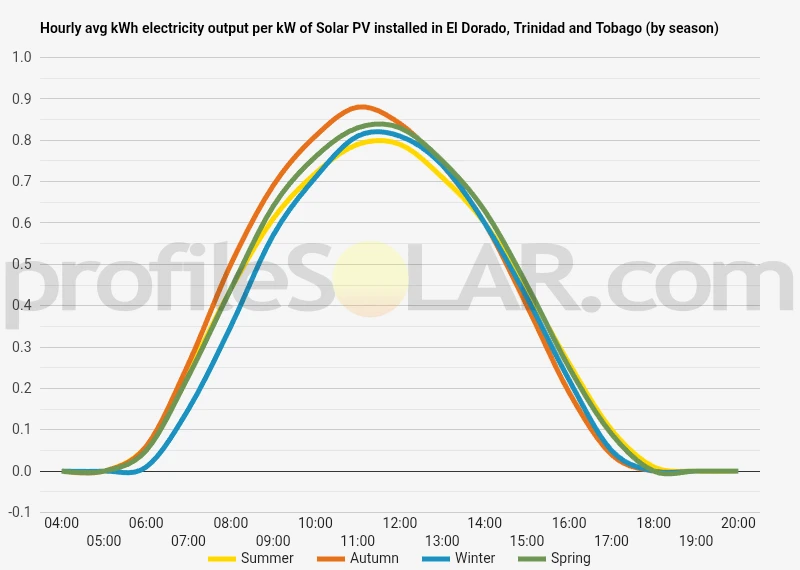

Solar output per kW of installed solar PV by season in El Dorado

Seasonal solar PV output for Latitude: 10.6318, Longitude: -61.3824 (El Dorado, Trinidad And Tobago), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in El Dorado, Trinidad And Tobago

To maximize your solar PV system's energy output in El Dorado, Trinidad And Tobago (Lat/Long 10.6318, -61.3824) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for El Dorado, Trinidad And Tobago

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in El Dorado, Trinidad And Tobago. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	16° South in Autumn	26° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in El Dorado, Trinidad And Tobago

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in El Dorado, Trinidad And Tobago.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around El Dorado, Trinidad And Tobago

Topographical Overview of El Dorado Region

El Dorado sits in the northern foothills of Trinidad's Northern Range, approximately 15 kilometers east of Port of Spain. This area represents a transitional zone between the steep mountainous terrain of the Northern Range and the flatter coastal plains that extend toward the Gulf of Paria. The landscape around El Dorado is characterized by rolling hills, gentle slopes, and scattered valleys that create a moderately undulating terrain. The elevation in the immediate vicinity of El Dorado ranges from about 50 to 200 meters above sea level, with the land generally rising as it approaches the more dramatic peaks of the Northern Range to the south. The terrain features a mix of natural vegetation and developed areas, with residential neighborhoods, agricultural plots, and patches of secondary forest creating a varied landscape mosaic.

Regional Terrain Characteristics

Moving outward from El Dorado, the topography varies considerably depending on direction. To the north and northwest, the land gradually descends toward the coast, becoming increasingly flat as it approaches the Caribbean Sea. This coastal plain area encompasses parts of the East-West Corridor and extends toward Chaguaramas in the west and beyond Arima in the east. Southward from El Dorado, the Northern Range rises dramatically, with peaks reaching over 900 meters in elevation. This mountainous terrain is heavily forested and features steep slopes, deep valleys, and numerous streams that drain northward toward the coast. The southern slopes of the Northern Range eventually give way to the Central Range and the vast Caroni Plain beyond. To the east and west of El Dorado, the foothills continue with similar rolling topography, punctuated by river valleys and ridgelines that run roughly parallel to the main axis of the Northern Range. These areas maintain the transitional character between mountain and plain that defines the El Dorado region.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations near El Dorado would be found primarily to the north and northwest, where the terrain flattens considerably as it approaches the coast. The Caroni Plain, which extends westward from the general El Dorado area, offers extensive areas of relatively flat or gently sloping land that would be ideal for solar farms. This region benefits from minimal topographical obstacles that could create shading issues and provides the kind of open, accessible terrain that large-scale solar installations require. Areas around Chaguanas and extending toward the western parts of Trinidad present particularly favorable conditions, with large expanses of agricultural land and open savanna that could potentially be converted to solar use. The gentle slopes in these areas would actually be beneficial for solar panel positioning, allowing for optimal orientation without the need for extensive grading or earthwork. The eastern coastal plains, extending toward areas like Arouca and beyond, also offer promising terrain for solar development. These areas combine relatively flat topography with good accessibility via existing road networks, making them practical choices for large-scale installations. The foothills immediately around El Dorado itself could accommodate smaller solar installations, but the rolling terrain and scattered development would make large-scale projects more challenging and expensive to implement. The steeper slopes and more fragmented land parcels in the immediate vicinity would require more careful site selection and potentially more complex engineering solutions. Areas to avoid for large-scale solar development would include the steep southern slopes leading into the Northern Range, where the combination of challenging terrain, forest cover, and potential environmental sensitivities would make solar installations impractical and likely environmentally inappropriate.
