Freeport, Trinidad and Tobago, located in the tropics at 10.4661°N, -61.4197°E, offers a promising environment for solar PV energy generation. This location benefits from consistent sunlight throughout the year, with seasons characterized more by wet and dry periods rather than traditional temperature-based seasons.

Year-Round Solar Potential

The solar energy output at Freeport demonstrates remarkable consistency across all meteorological seasons. Autumn sees the highest production at 6.01 kWh/day per kW installed, followed closely by Spring at 5.94 kWh/day. Summer and Winter show slightly lower but still substantial outputs at 5.75 kWh/day and 5.46 kWh/day, respectively.

This minimal variation between seasons indicates that Freeport is an excellent location for year-round solar energy generation. The region's proximity to the equator ensures a stable solar resource, making it ideal for consistent energy production throughout the year.

Optimal Panel Installation

For fixed panel installations in Freeport, the ideal tilt angle to maximize year-round production is 10 degrees facing South. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for the Earth's elliptical orbit and the location's specific latitude.

Environmental Considerations

While Freeport's tropical location is generally favorable for solar energy production, there are some environmental factors to consider:

1. Humidity: The region's high humidity levels can potentially impact solar panel efficiency and longevity.
2. Tropical storms: The Caribbean is prone to hurricanes and tropical storms, which could pose a risk to solar installations.

To mitigate these factors, several preventative measures can be taken during installation:

• Use corrosion-resistant materials and proper sealing to protect against humidity.
• Install robust mounting systems designed to withstand high winds.
• Implement regular cleaning and maintenance schedules to prevent salt and dust accumulation.
• Consider micro-inverter systems, which can help maintain overall system performance even if individual panels are affected.

By addressing these environmental considerations, solar installations in Freeport can take full advantage of the location's excellent year-round solar potential, ensuring optimal energy production and system longevity.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 34 locations across Trinidad And Tobago. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Trinidad And Tobago by location

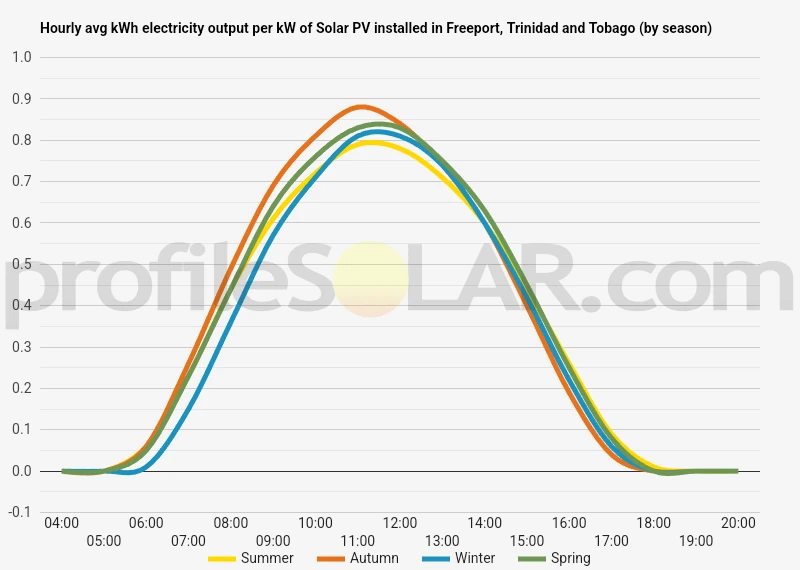

Solar output per kW of installed solar PV by season in Freeport

Seasonal solar PV output for Latitude: 10.4661, Longitude: -61.4197 (Freeport, Trinidad And Tobago), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Freeport, Trinidad And Tobago

To maximize your solar PV system's energy output in Freeport, Trinidad And Tobago (Lat/Long 10.4661, -61.4197) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Freeport, Trinidad And Tobago

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Freeport, Trinidad And Tobago. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	16° South in Autumn	26° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Freeport, Trinidad And Tobago

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Freeport, Trinidad And Tobago.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Freeport, Trinidad And Tobago

The topography around Freeport, Trinidad and Tobago, is characterized by a mix of flat coastal plains and gently rolling hills. This area is situated on the western side of Trinidad, near the Gulf of Paria. The landscape is predominantly low-lying, with elevations generally ranging from sea level to about 50 meters above sea level. Freeport itself is located in a relatively flat area, surrounded by agricultural lands and small patches of forest. To the east, the terrain gradually rises towards the Northern Range, a series of hills and low mountains that run along the northern coast of Trinidad. However, these higher elevations are some distance from Freeport and do not significantly impact its immediate surroundings. The region around Freeport features a network of rivers and streams, including the Caroni River, which flows westward towards the Gulf of Paria. These waterways have shaped the landscape over time, creating fertile alluvial plains that are ideal for agriculture.

Suitable Areas for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar PV installations, several factors come into play. The flat, open spaces in the vicinity of Freeport offer promising potential for solar energy development. The agricultural lands to the south and east of Freeport present excellent opportunities for solar PV projects. These areas benefit from relatively level terrain, which simplifies construction and minimizes the need for extensive land preparation. Additionally, the lack of tall structures or natural obstacles ensures minimal shading, allowing for optimal solar exposure throughout the day. Another suitable location for large-scale solar PV would be the coastal plains to the west of Freeport. These areas receive ample sunlight and have few obstructions that could interfere with solar panel efficiency. However, it's important to consider the potential impact of salt spray from the nearby Gulf of Paria, which could affect the longevity of solar equipment. The gently sloping hills to the northeast of Freeport could also accommodate solar installations. While these areas may require some terraforming, they offer the advantage of slightly elevated positions that can maximize sun exposure and potentially reduce the risk of flooding during heavy rains. It's worth noting that any large-scale solar PV project in this region would need to carefully balance land use with existing agricultural activities and ecological considerations. The area's importance for food production and its diverse ecosystems should be taken into account when planning such developments.
