Fyzabad, Siparia Regional Corporation, Trinidad and Tobago, located in the tropics, offers a promising environment for solar energy production throughout the year. This location benefits from consistent sunlight and experiences wet and dry seasons rather than traditional four-season weather patterns.

Solar Energy Potential

The solar energy potential in Fyzabad is relatively stable across the year, with slight variations between seasons. The average daily electricity output per kilowatt of installed solar capacity ranges from 5.50 kWh in winter to 6.01 kWh in autumn. This consistency is advantageous for solar energy production, as it ensures a reliable power supply year-round.

Seasonal Variations

While the differences between seasons are not dramatic, autumn emerges as the most productive period for solar energy generation, followed closely by spring. Summer and winter show slightly lower output, but the variation is minimal compared to locations at higher latitudes.

Optimal Panel Tilt

For fixed solar panel installations in Fyzabad, Siparia Regional Corporation, the ideal tilt angle to maximize year-round energy production is 10 degrees facing South. This angle takes into account the location's proximity to the equator and the sun's path throughout the year, ensuring optimal exposure to sunlight.

Environmental Considerations

While Fyzabad's tropical climate is generally favorable for solar energy production, there are some environmental factors to consider: 1. High humidity and rainfall: The wet season can bring increased cloud cover and rain, potentially reducing solar panel efficiency. 2. Tropical storms: Although less frequent than in other Caribbean areas, tropical storms can pose a risk to solar installations. To mitigate these challenges, consider the following preventative measures:

• Use corrosion-resistant materials for mounting systems and panel frames
• Install robust drainage systems to prevent water accumulation on panels
• Employ regular cleaning and maintenance schedules to combat humidity-related issues
• Ensure panels are securely mounted to withstand potential high winds

By implementing these measures, solar installations in Fyzabad can maintain high efficiency and durability, taking full advantage of the location's favorable solar conditions throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 34 locations across Trinidad And Tobago. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Trinidad And Tobago by location

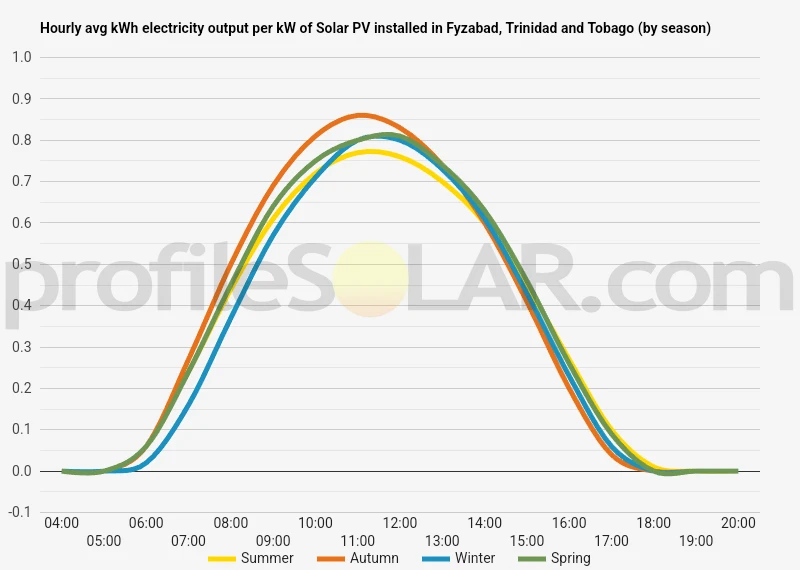

Solar output per kW of installed solar PV by season in Fyzabad

Seasonal solar PV output for Latitude: 10.1837, Longitude: -61.5577 (Fyzabad, Trinidad And Tobago), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Fyzabad, Trinidad And Tobago

To maximize your solar PV system's energy output in Fyzabad, Trinidad And Tobago (Lat/Long 10.1837, -61.5577) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Fyzabad, Trinidad And Tobago

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Fyzabad, Trinidad And Tobago. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	16° South in Autumn	26° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Fyzabad, Trinidad And Tobago

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Fyzabad, Trinidad And Tobago.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Fyzabad, Trinidad And Tobago

The area around Fyzabad, Trinidad and Tobago, is characterized by a diverse topography that includes both flat and hilly terrain. Fyzabad itself is situated in the southwestern part of Trinidad, in an area known for its gently rolling hills and lowlands.

To the north and east of Fyzabad, the landscape gradually transitions into more pronounced hills and small mountains. These elevations are part of the Southern Range, a series of low mountains that run across the southern part of Trinidad. While not particularly high, these hills provide some variation in the local topography.

To the south and west of Fyzabad, the terrain becomes flatter as it approaches the coast. This area is part of the Oropouche Lagoon, a large wetland region that includes marshes, swamps, and mangrove forests. The coastline itself is characterized by long stretches of sandy beaches interspersed with mudflats.

When considering areas nearby that would be most suited to large-scale solar PV (photovoltaic) installations, the flatter regions to the south and west of Fyzabad offer the most promise. These areas have several advantages for solar energy production:

1. The flat terrain makes construction and maintenance of solar panels easier and more cost-effective.
2. There are fewer natural obstacles that could cast shadows on the panels, maximizing sun exposure throughout the day.
3. The proximity to the coast ensures consistent sunlight with fewer obstructions from tall vegetation or buildings.
4. The open spaces in this region provide ample room for large-scale installations without significant land use conflicts.

However, it's important to note that while these areas may be topographically suitable, other factors such as land ownership, environmental considerations (especially regarding the wetlands), and proximity to existing power infrastructure would also need to be taken into account when planning any large-scale solar PV project in the region.
