Solar Energy Potential in Point Fortin, Trinidad and Tobago

Point Fortin, located in southwestern Trinidad and Tobago, offers promising conditions for solar energy generation throughout the year. This tropical location benefits from consistent sunlight patterns, making it a viable option for solar PV installations. The seasonal solar energy production in Point Fortin shows relatively stable output across the year. During summer months, solar panels can generate approximately 5.75 kWh per day for each kilowatt installed. Autumn sees a slight increase to 6.01 kWh/day, while winter experiences a minor dip to 5.46 kWh/day. Spring performance rebounds to 5.94 kWh/day per installed kilowatt. What makes Point Fortin particularly attractive for solar energy is the minimal variation between seasons. The difference between the highest producing season (autumn) and lowest (winter) is only 0.55 kWh/day, indicating consistent year-round generation potential. This stability is characteristic of tropical locations where seasonal changes are less pronounced than in temperate regions. For maximizing solar energy capture in Point Fortin, fixed solar panels should be installed at a 10-degree tilt facing South. This specific angle has been calculated to optimize year-round energy production based on the location's latitude and solar patterns.

Environmental and Weather Considerations

Despite favorable conditions, several factors may impact solar production in Point Fortin:

• Tropical storms and hurricanes can affect the region, potentially damaging solar installations if not properly secured.
• High humidity levels may accelerate corrosion of mounting hardware and electrical components.
• The coastal location means salt spray could accumulate on panels, reducing efficiency over time.
• Heavy rainfall during the wet season might temporarily reduce solar output.

To mitigate these challenges, several preventative measures are recommended. Installing corrosion-resistant mounting systems and components designed for marine environments can significantly extend system lifespan. Regular cleaning schedules should be implemented to remove salt deposits and other debris. Hurricane-rated mounting systems with reinforced foundations are essential for withstanding extreme weather events. Additionally, incorporating micro-inverters or power optimizers can help maintain production when parts of an array are shaded or affected by debris. Selecting panels with anti-reflective coatings and high humidity tolerance will further enhance performance in this tropical coastal environment.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 34 locations across Trinidad And Tobago. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Trinidad And Tobago by location

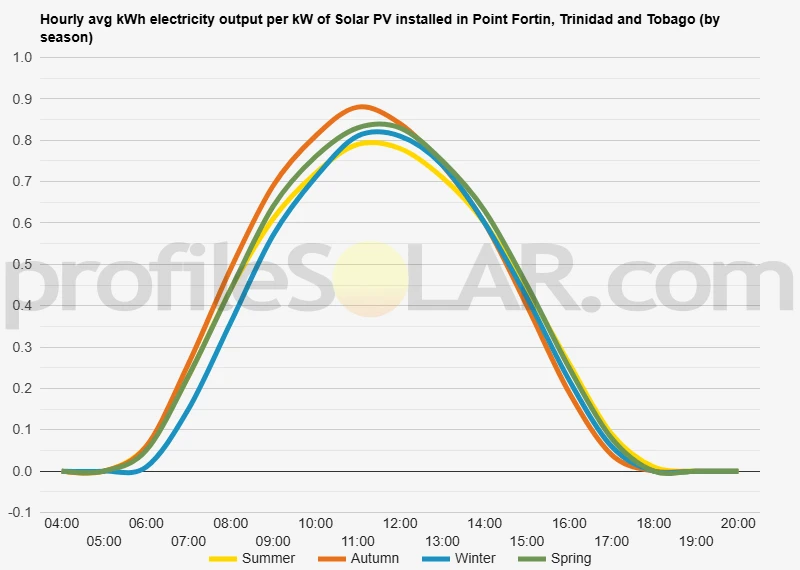

Solar output per kW of installed solar PV by season in Point Fortin

Seasonal solar PV output for Latitude: 10.1741, Longitude: -61.6841 (Point Fortin, Trinidad And Tobago), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in Point Fortin, Trinidad And Tobago

To maximize your solar PV system's energy output in Point Fortin, Trinidad And Tobago (Lat/Long 10.1741, -61.6841) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Point Fortin, Trinidad And Tobago

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Point Fortin, Trinidad And Tobago. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
6° North in Summer	16° South in Autumn	26° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Point Fortin, Trinidad And Tobago

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Point Fortin, Trinidad And Tobago.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Point Fortin, Trinidad And Tobago

Point Fortin, located in southwestern Trinidad and Tobago, presents a diverse topographical landscape that influences its potential for solar energy development. The area is characterized by a mixture of flat coastal plains transitioning into gently rolling hills as one moves inland. This coastal settlement sits where the Gulf of Paria meets the land, creating a relatively level terrain near the shoreline that gradually gives way to more elevated regions. The immediate vicinity of Point Fortin features predominantly low-lying areas with elevations generally below 50 meters above sea level. The landscape includes several small rivers and streams that have carved shallow valleys across the terrain. Notable among these is the Guapo River which flows through the region, creating natural divisions in the topography.

Coastal Features

The coastline near Point Fortin is marked by sandy beaches interspersed with mangrove swamps, particularly toward the south. These coastal wetlands, while ecologically important, present challenges for development due to their saturated soils and environmental sensitivity. Moving slightly inland, the terrain becomes more stable with firm ground suitable for construction projects.

Inland Topography

As distance from the coast increases, the landscape transitions to undulating hills and small plateaus. These areas, ranging from 20 to 100 meters in elevation, feature a mix of agricultural lands, forests, and cleared areas associated with the region's petroleum industry. The terrain becomes more pronounced toward the east and northeast, where the Southern Range hills begin to emerge, creating more varied relief.

Optimal Areas for Solar PV Development

For large-scale solar photovoltaic installations, several nearby areas offer promising conditions based on topographical considerations. The gently sloping lands to the east and northeast of Point Fortin present ideal conditions, with their slight inclines providing natural drainage while maintaining sufficient flatness for efficient panel arrangement. These areas, approximately 3-7 kilometers from the town center, offer stable ground conditions away from flood-prone zones. The cleared lands associated with former agricultural use or industrial activities near Cochrane and Guapo provide extensive flat areas that would require minimal grading for solar installations. These locations benefit from reduced shading concerns due to their open character and distance from the taller vegetation of the inland forests. Areas south of Point Fortin, toward Icacos, also present favorable topography with extensive flat plains that receive minimal shadowing from geographical features. However, proximity to coastal wetlands must be considered in site selection to avoid environmental impacts and potential flooding issues.

Topographical Challenges

Despite numerous favorable locations, certain topographical features present challenges for solar development in the region. The low-lying areas near river courses, particularly during rainy seasons, may experience periodic flooding. Additionally, some sections of land closer to the Southern Range hills have more pronounced slopes that would increase installation costs due to necessary terracing or specialized mounting systems. Areas directly along the coastline, while flat and seemingly ideal, face concerns related to sea spray, potential storm surge, and coastal erosion that could impact long-term installation viability. The stability of these areas should be carefully assessed before development. The existing industrial infrastructure around Point Fortin, primarily related to petroleum processing, has also modified portions of the natural topography. These areas may offer opportunities for brownfield solar development but would require site-specific assessment for contamination and stability. The varied topography around Point Fortin offers numerous opportunities for large-scale solar development, with the inland plains and gently rolling areas providing the most favorable conditions when all factors are considered.
