San Fernando, Trinidad and Tobago, located in the tropics, offers a consistently favorable environment for solar energy generation throughout the year. This location benefits from steady sunlight and experiences wet and dry seasons rather than traditional four-season cycles.

Year-round Solar Potential

The solar energy output at this location remains relatively stable across all seasons, with only minor fluctuations: • Summer: 5.73 kWh/day • Autumn: 6.01 kWh/day • Winter: 5.50 kWh/day • Spring: 5.91 kWh/day These figures represent the expected daily electricity output per kilowatt of installed solar capacity. The consistency in these values indicates that San Fernando is an excellent location for year-round solar energy production.

Optimal Panel Tilt

For fixed panel installations in San Fernando, the ideal tilt angle to maximize year-round solar production is 10 degrees facing South. This angle takes into account the location's latitude and the Earth's elliptical orbit, ensuring optimal exposure to sunlight throughout the year.

Peak Production Periods

While solar energy generation remains relatively constant, there are slight variations. The autumn months show the highest potential, with 6.01 kWh/day, closely followed by spring at 5.91 kWh/day. These periods may coincide with the dry season, which typically offers clearer skies and more direct sunlight.

Environmental Considerations

Despite the favorable conditions, there are some environmental factors to consider: 1. Humidity: The tropical climate of Trinidad and Tobago can lead to high humidity levels, which may affect solar panel efficiency. Regular cleaning and maintenance can help mitigate this issue. 2. Tropical Storms: While not in the main hurricane belt, the region can experience tropical storms. Ensuring proper installation and using storm-resistant mounting systems can protect solar panels during extreme weather events. 3. Salt Air Exposure: Given the proximity to the coast, salt air corrosion could be a concern. Using corrosion-resistant materials and applying protective coatings can extend the lifespan of solar equipment. By addressing these factors during installation and maintenance, San Fernando can fully capitalize on its excellent solar potential, making it an ideal location for solar PV energy generation throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 34 locations across Trinidad And Tobago. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Trinidad And Tobago by location

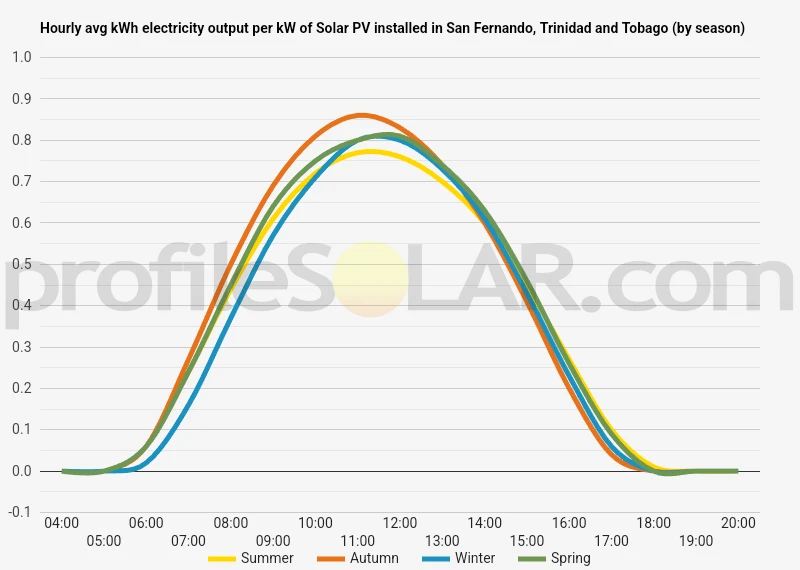

Solar output per kW of installed solar PV by season in San Fernando

Seasonal solar PV output for Latitude: 10.2829, Longitude: -61.4444 (San Fernando, Trinidad And Tobago), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in San Fernando, Trinidad And Tobago

To maximize your solar PV system's energy output in San Fernando, Trinidad And Tobago (Lat/Long 10.2829, -61.4444) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for San Fernando, Trinidad And Tobago

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in San Fernando, Trinidad And Tobago. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	16° South in Autumn	26° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in San Fernando, Trinidad And Tobago

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in San Fernando, Trinidad And Tobago.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around San Fernando, Trinidad And Tobago

The area around San Fernando, Trinidad and Tobago, is characterized by a diverse topography that includes both flat coastal plains and gently rolling hills. San Fernando itself is situated on the southwestern coast of Trinidad, nestled between the Gulf of Paria to the west and a series of low-lying hills to the east.

The immediate vicinity of San Fernando is relatively flat, with some areas only a few meters above sea level. This coastal plain extends for several kilometers inland before gradually transitioning into more elevated terrain. As you move eastward from the city, the landscape becomes more undulating, with gentle slopes and small valleys interspersed throughout the region.

To the north and northeast of San Fernando, the terrain becomes more hilly, with elevations reaching up to 100-200 meters above sea level in some areas. These hills are part of the Southern Range, a series of low mountains that run along the southern edge of Trinidad. The hills are generally covered in tropical vegetation, creating a lush green backdrop to the urban areas.

For large-scale solar PV installations, the most suitable areas near San Fernando would be the flat or gently sloping regions to the south and southeast of the city. These areas offer several advantages for solar energy production:

1. They receive ample sunlight throughout the year due to their proximity to the equator.
2. The relatively flat terrain makes construction and maintenance of solar panels easier and more cost-effective.
3. These areas are less prone to shadowing from nearby hills or mountains, ensuring consistent solar exposure.
4. There is generally more open space available in these regions, allowing for larger installations.

However, it's important to note that any specific site selection would require detailed environmental and geological studies to ensure suitability. Factors such as soil stability, drainage, and potential impact on local ecosystems would need to be carefully considered before proceeding with a large-scale solar project in the region.
