San Juan, Trinidad and Tobago, located in the tropics, offers a promising environment for solar energy generation. This Caribbean location benefits from consistent sunlight throughout the year, with seasons characterized more by wet and dry periods rather than traditional temperature-based seasons.

Solar Energy Production Potential

The solar energy production potential in San Juan is relatively stable across all seasons. In summer, the average daily output is 5.75 kWh per kW of installed solar capacity. This increases slightly to 6.01 kWh/day in autumn, drops to 5.46 kWh/day in winter, and rises again to 5.94 kWh/day in spring. These figures indicate a year-round favorable environment for solar energy generation, with only minor fluctuations between seasons.

Optimal Panel Placement

For fixed panel installations in San Juan, the ideal tilt angle to maximize year-round solar production is 10 degrees facing South. This angle takes into account the location's latitude and the Earth's elliptical orbit, ensuring optimal exposure to sunlight throughout the year.

Environmental Considerations

While San Juan's tropical climate is generally conducive to solar energy production, there are some environmental factors to consider: 1. Humidity: The high humidity levels in the tropics can potentially impact solar panel efficiency. To mitigate this, panels should be installed with proper ventilation and regular cleaning schedules. 2. Tropical storms: The Caribbean region is prone to tropical storms and hurricanes. When installing solar panels, it's crucial to use sturdy mounting systems designed to withstand high winds and heavy rainfall. 3. Dust and salt: Being close to the coast, salt spray and dust accumulation can affect panel performance. Regular cleaning and maintenance, along with protective coatings on the panels, can help maintain optimal efficiency.

Preventative Measures

To ensure greater energy production in San Juan, consider implementing these preventative measures: 1. Use corrosion-resistant materials for all components of the solar system to combat the effects of salt air and high humidity. 2. Install a monitoring system to quickly detect any drops in performance due to environmental factors. 3. Implement a regular cleaning and maintenance schedule to prevent buildup of dust, salt, or other debris on the panels. 4. Consider using micro-inverters or power optimizers to minimize the impact of partial shading from passing clouds, which can be common in tropical climates. By taking these factors into account and implementing appropriate measures, solar energy systems in San Juan can operate efficiently and provide a reliable source of renewable energy throughout the year.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 34 locations across Trinidad And Tobago. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Trinidad And Tobago by location

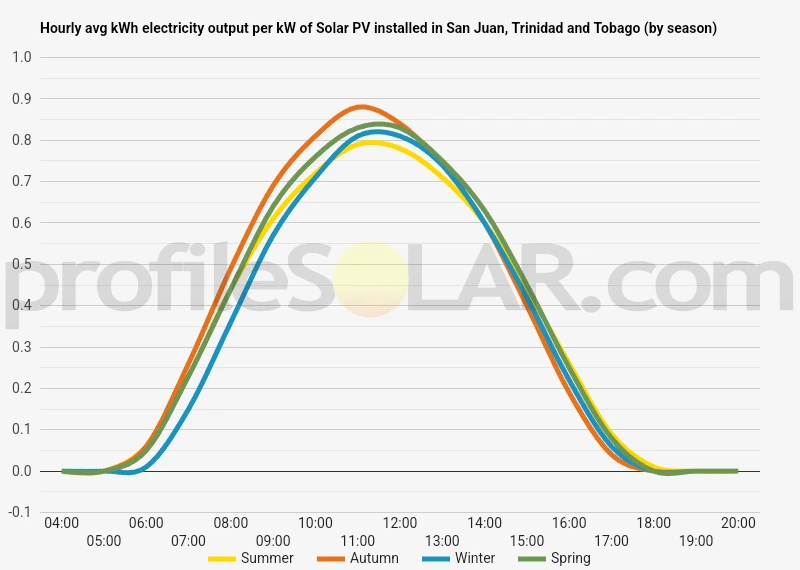

Solar output per kW of installed solar PV by season in San Juan

Seasonal solar PV output for Latitude: 10.6515, Longitude: -61.4496 (San Juan, Trinidad And Tobago), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 10° South in San Juan, Trinidad And Tobago

To maximize your solar PV system's energy output in San Juan, Trinidad And Tobago (Lat/Long 10.6515, -61.4496) throughout the year, you should tilt your panels at an angle of 10° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for San Juan, Trinidad And Tobago

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in San Juan, Trinidad And Tobago. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 10° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
5° North in Summer	16° South in Autumn	26° South in Winter	4° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in San Juan, Trinidad And Tobago

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in San Juan, Trinidad And Tobago.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around San Juan, Trinidad And Tobago

The topography around San Juan, Trinidad and Tobago, is characterized by a diverse landscape that includes both flat areas and gently rolling hills. San Juan itself is situated in a relatively flat region, nestled between the Northern Range mountains to the north and the Central Range to the south. The area surrounding San Juan is part of the East-West Corridor, a densely populated strip of land that runs along the foothills of the Northern Range. To the north of San Juan, the terrain gradually rises into the Northern Range, which is a series of hills and low mountains that form the backbone of Trinidad's northern coast. These mountains, while not particularly high, provide a scenic backdrop to the region and influence local weather patterns. South of San Juan, the land remains relatively flat for some distance before it starts to rise again towards the Central Range. This flat to gently undulating terrain is part of the Caroni Plains, an area known for its agricultural productivity and open spaces.

Suitable Areas for Large-Scale Solar PV

When considering locations for large-scale solar photovoltaic (PV) installations near San Juan, several factors come into play, including topography, land availability, and proximity to existing infrastructure. Based on these considerations, the following areas near San Juan show promise for solar PV development: The Caroni Plains to the south and southwest of San Juan offer vast, flat areas that could be ideal for solar farms. These open spaces receive ample sunlight and have minimal shading from natural features, making them well-suited for solar panel installation. Additionally, the relatively flat terrain would reduce construction costs and simplify maintenance procedures. Areas to the east and southeast of San Juan, towards the town of Arima, also present opportunities for solar PV development. This region features a mix of flat land and gentle slopes, which could be advantageous for optimizing panel orientation and maximizing solar exposure throughout the day. While the Northern Range itself may not be suitable due to its steeper terrain and potential shading issues, the foothills and lower slopes of these mountains could offer interesting possibilities for solar installations. These areas might benefit from slightly cooler temperatures, which can improve solar panel efficiency. It's important to note that any large-scale solar PV project would need to carefully consider environmental impacts, land use regulations, and the proximity to the electrical grid. The chosen sites should ideally be close to existing transmission lines to minimize the cost and complexity of connecting to the power grid. Additionally, areas that are currently used for agriculture or have significant ecological value may not be appropriate for solar development, despite having suitable topography.
