Ksar Hellal, Monastir Governorate, Tunisia offers good potential for solar energy generation throughout most of the year, though with notable seasonal variations that make it moderately suitable rather than ideal for year-round solar PV installations.

Seasonal Energy Production

The location experiences strong seasonal differences in solar energy output. Summer provides the highest production at 7.86 kWh per day per kW of installed capacity, making it an excellent time for solar generation. Spring also performs well with 6.33 kWh per day per kW, offering substantial energy production during this period. However, the colder months present challenges. Autumn drops significantly to 4.49 kWh per day per kW, while winter reaches the lowest point at just 3.46 kWh per day per kW. This represents a substantial decrease of more than half the summer production levels, which affects the year-round viability of solar installations. For optimal performance, solar panels at this location should be installed at a fixed tilt angle of 31 degrees facing south. This angle maximizes total annual energy production by accounting for the sun's changing position throughout the year and the varying solar irradiance levels.

Environmental and Weather Factors

Several local factors in Ksar Hellal could potentially impact solar panel performance and require consideration during installation:

• Saharan dust storms: Tunisia's proximity to the Sahara Desert means regular dust accumulation on solar panels, which can significantly reduce efficiency
• Mediterranean humidity: Coastal moisture can create condensation issues and promote corrosion of electrical components
• Salt air exposure: Being relatively close to the Mediterranean coast, salt-laden air can corrode metal components and connections over time
• Temperature extremes: Hot summers can reduce panel efficiency, while thermal cycling between seasons can stress equipment

Preventative Measures

To maximize energy production despite these challenges, several installation strategies should be implemented:

• Regular cleaning schedule: Establish frequent panel washing to remove dust buildup, particularly during dusty seasons
• Corrosion-resistant materials: Use marine-grade aluminum frames and stainless steel mounting hardware to withstand salt air
• Proper ventilation: Install panels with adequate air circulation underneath to reduce heat buildup and improve efficiency
• Quality sealing: Ensure all electrical connections are properly sealed against moisture infiltration
• Protective coatings: Apply anti-reflective coatings that also resist dust adhesion

With proper installation techniques and maintenance practices, Ksar Hellal can provide reasonable solar energy returns, particularly during the productive spring and summer months when energy demands for cooling are typically highest.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 53 locations across Tunisia. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in Tunisia by location

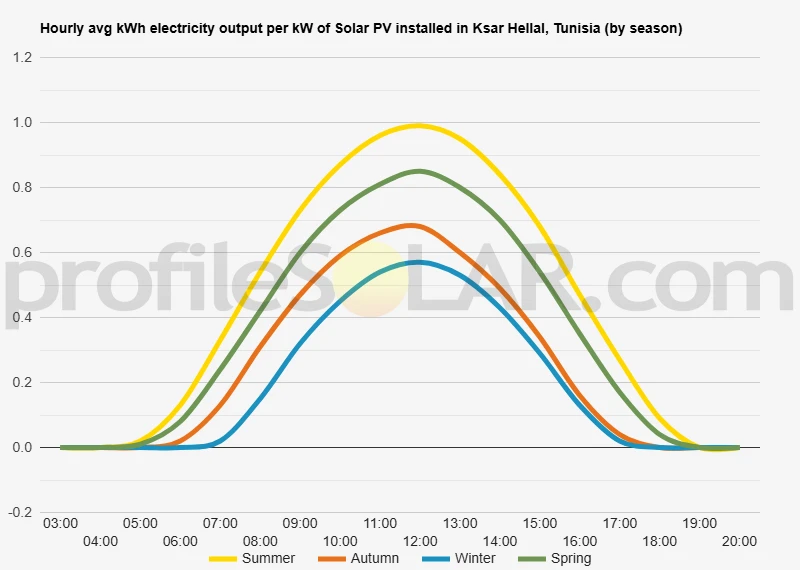

Solar output per kW of installed solar PV by season in Ksar Hellal

Seasonal solar PV output for Latitude: 35.6496, Longitude: 10.8894 (Ksar Hellal, Tunisia), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 31° South in Ksar Hellal, Tunisia

To maximize your solar PV system's energy output in Ksar Hellal, Tunisia (Lat/Long 35.6496, 10.8894) throughout the year, you should tilt your panels at an angle of 31° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Ksar Hellal, Tunisia

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ksar Hellal, Tunisia. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 31° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
20° South in Summer	40° South in Autumn	51° South in Winter	28° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Ksar Hellal, Tunisia

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ksar Hellal, Tunisia.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Ksar Hellal, Tunisia

Topographical Features of Ksar Hellal

Ksar Hellal sits in the coastal plains of Tunisia's Sahel region, characterized by relatively flat to gently undulating terrain that extends inland from the Mediterranean Sea. The city is positioned approximately 10 kilometers from the coastline, where the landscape consists primarily of low-lying agricultural land with minimal elevation changes. The surrounding area features broad, open plains that gradually rise toward the interior, creating an expansive vista with few significant topographical obstacles. The terrain around Ksar Hellal is predominantly composed of sedimentary deposits and alluvial soils, forming a stable geological foundation. Small wadis (seasonal watercourses) create subtle depressions in the landscape, while scattered olive groves and agricultural fields define much of the immediate surroundings. The elevation rarely exceeds 100 meters above sea level within a 20-kilometer radius, maintaining the characteristic flat profile of Tunisia's central coastal region.

Climate and Environmental Conditions

The Mediterranean climate of the Ksar Hellal region brings hot, dry summers and mild winters, creating favorable conditions for solar energy development. The area experiences minimal cloud cover during summer months, while winter precipitation is generally light and brief. Prevailing winds from the Mediterranean help moderate temperatures but also bring occasional dust from the interior, which can affect solar panel efficiency if not properly maintained. The semi-arid conditions mean vegetation is sparse outside cultivated areas, with drought-resistant shrubs and occasional palm trees dotting the landscape. This natural environment presents fewer obstacles for large-scale solar installations compared to more densely vegetated regions.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations lie in the inland areas southeast and southwest of Ksar Hellal, where agricultural activity is less intensive and land availability is greater. These zones benefit from the same flat topography as the immediate coastal area while being sufficiently removed from urban development and prime agricultural land. Areas approximately 15 to 25 kilometers inland from Ksar Hellal offer particularly attractive conditions for solar farms. The terrain remains consistently flat, reducing construction and maintenance costs, while the distance from the coast minimizes salt air exposure that can accelerate equipment corrosion. The geological stability of these inland plains provides excellent foundation conditions for solar mounting systems. The region southwest toward the town of Kairouan presents especially promising opportunities, where vast expanses of underutilized land stretch across stable, flat terrain. This area maintains easy access to existing infrastructure while offering the space required for utility-scale solar installations. The minimal topographical variation ensures consistent solar exposure across large installations without shading concerns from hills or valleys. Transportation infrastructure in the form of existing roads and proximity to electrical transmission networks makes the areas within 30 kilometers of Ksar Hellal particularly viable for development. The flat terrain simplifies both construction logistics and ongoing maintenance operations, while the stable geological conditions minimize foundation requirements and associated costs.
