Funafuti, Tuvalu represents a reasonably good location for year-round solar energy generation, benefiting from its tropical location where sunlight remains fairly consistent throughout the year. The seasonal variations in solar output are relatively modest, ranging from 5.36 kWh per day per kW of installed solar capacity in winter to 6.76 kWh per day per kW in spring.

Seasonal Performance

Spring emerges as the most productive season for solar generation at this location, delivering 6.76 kWh per day per kW of installed capacity. Autumn follows closely with 6.00 kWh per day per kW, while summer produces 5.84 kWh per day per kW. Winter shows the lowest output at 5.36 kWh per day per kW, though this reduction is not severe enough to make solar impractical during any part of the year. For optimal year-round performance, solar panels should be installed at a fixed tilt angle of 8 degrees facing north. This angle has been calculated to maximize total annual energy production by accounting for the sun's changing position throughout the year and weighting the optimal daily angles by solar irradiance data.

Environmental Challenges

Several significant environmental factors at Funafuti could impede solar energy production and require careful consideration during installation. The marine environment presents the most serious challenge, as salt spray from the ocean can accumulate on solar panels, reducing their efficiency and potentially causing corrosion over time. The high humidity typical of tropical island locations can also affect electrical components and connections. Tropical weather patterns bring intense rainfall during wet seasons, which while helpful for cleaning panels naturally, can be accompanied by strong winds that may damage improperly secured installations. The consistent heat and UV exposure, while beneficial for energy generation, can accelerate degradation of panel materials and reduce the lifespan of electrical components.

Preventative Measures

To combat these challenges, several preventative measures should be implemented:

• Install panels with marine-grade mounting systems and use corrosion-resistant materials such as anodized aluminum or stainless steel hardware
• Apply anti-reflective coatings designed to resist salt buildup and make cleaning more effective
• Ensure all electrical connections are properly sealed and use marine-grade wiring and conduits
• Design mounting systems to withstand high wind loads and secure panels against tropical storm conditions
• Plan for regular maintenance including panel cleaning to remove salt deposits and debris

Proper ventilation around panels helps manage heat buildup, while selecting panels and inverters rated for high-temperature operation ensures consistent performance. Regular inspection and maintenance schedules become particularly important in this marine environment to identify and address corrosion or damage before it significantly impacts energy production. Despite these challenges, Funafuti's consistent solar resource makes it a viable location for solar energy generation throughout the year, provided that installations are properly designed and maintained to handle the demanding tropical marine environment.

Note: The Tropics are located between 23.5° North and -23.5° South of the equator.

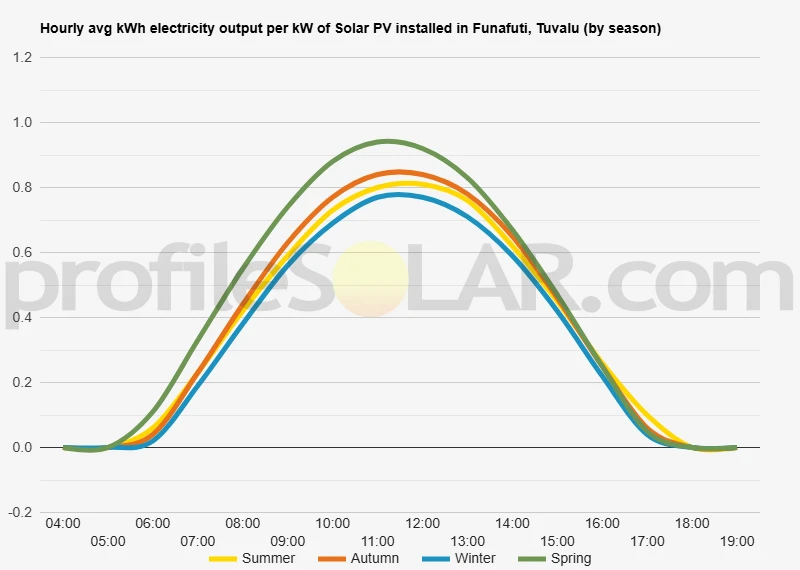

Solar output per kW of installed solar PV by season in Funafuti

Seasonal solar PV output for Latitude: -8.5223, Longitude: 179.1879 (Funafuti, Tuvalu), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 8° North in Funafuti, Tuvalu

To maximize your solar PV system's energy output in Funafuti, Tuvalu (Lat/Long -8.5223, 179.1879) throughout the year, you should tilt your panels at an angle of 8° North for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Funafuti, Tuvalu

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Funafuti, Tuvalu. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 8° North tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
8° South in Summer	15° North in Autumn	24° North in Winter	3° North in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Funafuti, Tuvalu

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Funafuti, Tuvalu.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Funafuti, Tuvalu

Topographical Features of Funafuti

Funafuti, the capital atoll of Tuvalu, presents one of the most unique topographical landscapes in the Pacific Ocean. This narrow coral atoll consists of a ring of low-lying islets surrounding a central lagoon, with the main inhabited areas situated on exceptionally flat terrain. The highest points across the entire atoll reach only about 4.5 meters above sea level, making Funafuti one of the lowest-lying capital cities in the world.

The atoll's land surface is remarkably uniform, characterized by sandy coral soil with minimal elevation changes across its length. The main island strip where most development occurs is extraordinarily narrow, measuring less than 200 meters wide in many places and stretching approximately 12 kilometers in length. This creates a distinctive ribbon-like appearance when viewed from above, with the Pacific Ocean on one side and the calm lagoon waters on the other.

The terrain consists primarily of consolidated coral sand and limestone formations, with sparse vegetation including coconut palms, pandanus trees, and low shrubs adapted to the saline environment. The surface is generally well-drained despite the low elevation, as the porous coral base allows water infiltration, though the water table sits very close to the surface throughout the atoll.

Solar Installation Suitability Assessment

The remarkably flat topography of Funafuti presents both advantages and challenges for large-scale solar photovoltaic installations. The absence of hills, valleys, or significant elevation changes eliminates concerns about shading from natural terrain features and provides consistent solar exposure across the entire atoll surface.

The most suitable areas for substantial solar installations would be the less densely populated sections of the main island, particularly the southern and central portions where residential development is more sparse. These areas offer relatively large continuous expanses of flat land that could accommodate solar arrays without competing directly with housing or essential infrastructure.

The airport area and its immediate surroundings represent another promising location, as airports typically maintain clear zones around runways that could potentially accommodate solar installations designed to meet aviation safety requirements. The flat, open spaces adjacent to the runway already exist as cleared land with minimal competing uses.

Ground-mounted installations would be the most practical approach given the stable, level terrain and the ability to design systems that can withstand the coastal environment. The uniform elevation eliminates the need for complex grading or terracing that would be required in mountainous regions, potentially reducing installation costs and complexity.

However, the extremely limited total land area of the atoll means that any large-scale solar development must carefully balance energy production needs with other critical land uses including housing, agriculture, and essential infrastructure. The narrow width of the atoll also means that installations must be designed to withstand salt spray and high winds from both ocean and lagoon sides, requiring robust mounting systems and appropriate equipment selection for the marine environment.
