Location estimate

Shyroke

Dnipropetrovsk Oblast · Ukraine

Approximate location reference—not a rooftop, property or survey point.

Seasonal average-day estimates

Selected capacity 1 kWp

Showing the original estimates at 1 kWp. JavaScript is needed only to change capacity; source values and panel settings remain available below.

Changing capacity rescales my existing estimates. It does not recalculate their orientation, shading, equipment or loss assumptions.

Estimated average daily electricity for 1 kWp, in kWh/day, averaged over each season.

Summer

6.51

kWh/day

Autumn

2.97

kWh/day

Winter

1.12

kWh/day

Spring

4.77

kWh/day

Shared scale: 0–7.00 kWh/day.

I apply the same capacity factor to every season, so their proportions stay unchanged. The shared visual scale adjusts with capacity. To compare different system sizes, use the displayed kWh/day values.

This is illustrative scaling, not a site-specific production prediction.

Source basis and scaling limits

Original seasonal average-day estimates for Shyroke, in kWh/kWp/day.

I calculate the scaled results from the original seasonal values and round the final energy results to two decimal places. Exceptionally large values may appear in approximate scientific notation; the full results, rounded to two decimal places, remain available here.

Original source values and selected-capacity calculation
SeasonRecorded kWh/kWp/dayExact selected-capacity result · kWh/day
Summer 6.51 6.51 × 1 kWp = 6.51 kWh/day
Autumn 2.97 2.97 × 1 kWp = 2.97 kWh/day
Winter 1.12 1.12 × 1 kWp = 1.12 kWh/day
Spring 4.77 4.77 × 1 kWp = 4.77 kWh/day

Ordinary calculations wrap onto two lines. Exceptionally long calculations can be scrolled within their labelled region.

Full results rounded to two decimal places

These preserve every whole-number digit. Exceptionally long values can be scrolled horizontally inside each labelled result.

Summer · kWh/day
6.51
Autumn · kWh/day
2.97
Winter · kWh/day
1.12
Spring · kWh/day
4.77

The original values remain available without JavaScript. Energy always uses kWh/day, including when capacity is entered in MWp. Changing units preserves the same physical capacity.

These are seasonal average-day estimates, not annual totals or installation sizing. Changing capacity does not revisit the assumptions used in my original estimates.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Year-round panel setup

Schematic catalogue setting — Year-round fixed panel setup: tilt 40 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Year-round fixed panel setup · schematic
Tilt from horizontal
40°
Facing direction
South

Catalogue direction; exact azimuth not recorded. The facing direction is illustrative.

Suggested seasonal tilts

Tilt from horizontal · facing direction

Summer
Jun, Jul, Aug
32°South
Autumn
Sep, Oct, Nov
51°South
Winter
Dec, Jan, Feb
61°South
Spring
Mar, Apr, May
39°South

The seasonal electricity figures do not model gains from switching between these settings.

About this orientation

This schematic shows the year-round panel tilt and facing direction for Shyroke, Dnipropetrovsk Oblast, Ukraine.

For the year-round panel tilt, I used a simplified solar-noon calculation. This gives a broad starting point for considering a fixed panel angle at the location.

I weighted the daily angles by their share of estimated output. Read how I calculated panel tilt.

The panel shows tilt above horizontal on a fixed compass. North stays at the upper right in this projected view. Schematic only—not roof geometry, an installation drawing or a selected practical design.

Year-round and seasonal panel angles are separate estimates. Changing capacity rescales the existing energy values; it does not recalculate output for a different angle or facing direction.

Seasonal orientation diagrams

These show the separate seasonal settings above. Changing capacity does not change these angles or recalculate energy for a different orientation.

Summer

Schematic catalogue setting — Summer panel setup: tilt 32 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Summer panel setup · schematic

32° tilt · South

Illustrative direction; exact azimuth not recorded.

Autumn

Schematic catalogue setting — Autumn panel setup: tilt 51 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Autumn panel setup · schematic

51° tilt · South

Illustrative direction; exact azimuth not recorded.

Winter

Schematic catalogue setting — Winter panel setup: tilt 61 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Winter panel setup · schematic

61° tilt · South

Illustrative direction; exact azimuth not recorded.

Spring

Schematic catalogue setting — Spring panel setup: tilt 39 degrees above horizontal; facing South. Direction is illustrative; exact azimuth not recorded.NESW
Spring panel setup · schematic

39° tilt · South

Illustrative direction; exact azimuth not recorded.

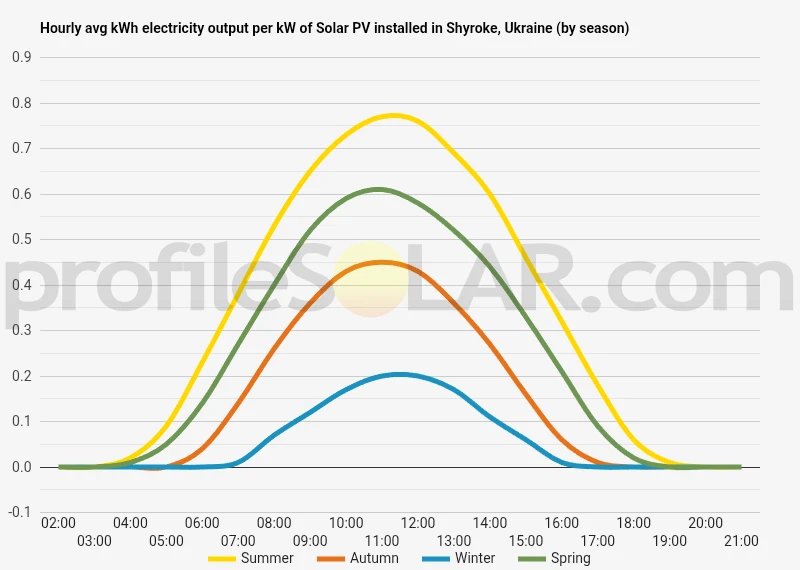

Historical hourly-by-season solar output chart for Shyroke, Ukraine. View larger
Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

Hourly electricity pattern for Shyroke, Ukraine

Hourly profiles by season — Shyroke, Ukraine · 2021

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

2021 is the method’s reference year, not verified year coverage for every point in this historical chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern. View the year-round panel setup.

Historical hourly chart

Hourly profiles by season — Shyroke, Ukraine · 2021

Swipe to pan, or focus the chart and use arrow keys.

Original chart units: hourly average electricity output in kWh per kW of installed solar PV.

This chart shows how average electricity output varies through the hours of the day in each season. I have kept its original per-capacity basis: changing the capacity slider does not change this chart.

The cards above show seasonal average-day energy; this chart shows the hourly pattern.

2021 is the method’s reference year, not verified year coverage for every plotted point.

Enlargement is limited to the original image resolution.

Row-spacing planning

Planning solar-panel row spacing in Shyroke

Explore the space between parallel panel rows at one assumed winter-solstice solar-noon position.

Example: 2 m panel surface length, recorded year-round tilt and no added margin. Enable JavaScript to change these inputs.

Row pitch including margin

≈ 5.3 m

Proportional side viewDesign sun: ≈ 18.86° above horizontal
Row 1 Row 2 Clear gap Added margin: 0 m Row pitch including margin
  • Sunlight ray
  • First row’s ground shadow
  • Shadow endpoint
Calculated clear gap
≈ 3.76 m
Added margin
≈ 0 m
Gap including margin
≈ 3.76 m
Panel horizontal footprint
≈ 1.53 m
Panel vertical rise
≈ 1.29 m
Pitch before margin
≈ 5.3 m

Simplified level ground, equator-facing cross-section. Approximate Northern Hemisphere winter solstice at solar noon (day 355). The separate recorded facing direction is not an input.

One sun position, not a complete site-shading assessment. A geometric zero gap does not establish adequate installation, access or maintenance clearance.

Detailed inputs and unrounded results

More digits retain calculation precision; they do not imply greater model accuracy. Pitch including margin is pitch before margin plus the added margin, including when that margin is zero.

Panel surface length
2 m
Tilt up from horizontal
40°
Added margin
0 m
Latitude from the catalogue
47.693200000000000000° (Northern Hemisphere)
Panel horizontal footprint
1.532088886237956 m
Panel vertical rise
1.2855752193730785 m
Calculated clear gap
3.7640699543189924 m
Pitch before margin
5.296158840556949 m
Gap including margin
3.7640699543189924 m
Row pitch including margin
5.296158840556949 m
Design solar elevation
18.857017153186348°
How this spacing estimate is calculated

I calculate this example at approximate winter solstice and solar noon for the location’s hemisphere. Tilt is measured up from horizontal and panel length is measured along the tilted module surface.

δ = 23.45° × sin(360° × (day − 81) ÷ 365); α = asin(sin(latitude) × sin(δ) + cos(latitude) × cos(δ)).

Rise = length × sin(tilt). Footprint = length × cos(tilt). Clear gap = rise ÷ tan(α). Row pitch = footprint + clear gap. The optional margin is added to the gap and pitch.

The calculated clear gap is the horizontal distance from the first panel’s high edge to its shadow endpoint. Any added margin then extends to the next row. Pitch is measured between corresponding leading edges, not just across the clear gap. The target is no geometric shadow at that one simplified solar-noon design instant.

The cross-section assumes parallel, equator-facing rows and a solar-noon ray perpendicular to them. The method ignores azimuth error and does not use the separate facing direction recorded for this location.

Terrain, mounting height, module thickness, obstructions, structural loads and regulations are outside this simplified geometry. A qualified designer should verify a real installation.

Detailed site analysisExplore historical generation and system configurations for your own project or your clients in the profileSOLAR app.

Solar context for Shyroke

Read this location context alongside the calculation method and limitations; installation guidance is not a site-specific assessment.

Shyroke's solar reference has a pronounced summer peak. Estimated average daily generation per kW of rated installed capacity is 6.51 kWh/day in summer, 2.97 kWh/day in autumn, 1.12 kWh/day in winter and 4.77 kWh/day in spring. Spring contributes substantially before the summer maximum, while autumn is lower and winter the minimum. A year-round comparison should preserve these seasonal differences.

Read the full article

The local landscape is defined by the Inhulets corridor and smaller drainage features as well as open cultivated surroundings. Municipal planning material places the Inhulets along the western side of the settlement and identifies the Bakaets stream passing through it. It also describes ravines, agricultural land and shelterbelts around the town. This gives a more specific setting than an uninterrupted level steppe. The fixed reference is 40° facing South. It is a broad output-weighted result from simplified solar geometry. Roof pitch, structure and local shadows determine the practical arrangement. The seasonal figures do not measure gains from changing tilt or establish snow-shedding performance. The brighter spring and summer resource can be compared with daytime electricity use during those months. Winter-dependent demand should also be assessed against its much smaller daily reference. Increasing system size or choosing a hybrid arrangement requires an actual load and roof-area comparison; the seasonal values alone do not establish the result. A horizon survey should include neighboring roofs, trees and any local rise or valley edge. At ground level, the relationship to channels and ravines matters to drainage and access. Cleaning and equipment choices should follow observed property conditions rather than a generic agricultural-dust or snow prescription.

Topography around Shyroke

These landscape descriptions provide general context. The calculations do not model terrain, obstructions, shading or property suitability.

Shyroke's local terrain is organized around the Inhulets River and smaller drainage corridors. Municipal planning material places the Inhulets along the settlement's western side and the Bakaets stream through it. Ravines and agricultural ground occur on the eastern side, while shelterbelts and farms form part of the surrounding landscape.

Read the full topography description

The planning account also describes the relationship to the Kryvyi Rih industrial landscape across and beyond the river. This gives the area a combination of settlement, cultivation, drainage and altered ground. A general steppe description remains useful at regional scale, but it should not conceal those local features. For rooftop solar, the direction and height of nearby obstructions determine when sunlight reaches a surface. A shelterbelt or neighboring roofline can matter more than a modest regional change in elevation. The lower winter sun path should be included when interpreting the small winter reference. For a ground layout, the same landscape requires attention to runoff and the position of the river or ravine. A level patch at the foot of a slope can receive water from above. A raised position does not establish better soil, reduced fog or a stable foundation; those conditions need direct assessment at the parcel. Fields and previously altered ground have existing uses and histories. Their appearance does not establish low-value land available for conversion or straightforward electrical access. Shyroke's river-and-ravine framework supplies meaningful local context for an identified roof or parcel while keeping the resource at the bound point.

Technical location reference

Approximate map point used for Shyroke, Ukraine

This coordinate is the calculation reference for Shyroke, Ukraine. Extra decimal places do not make it a rooftop, property or survey point.

Coordinates and precision
Map coordinate
47.693200000000000000, 33.250400000000000000
Originally displayed coordinate
lat47.6932 / long33.2504

How the estimate works

How this Shyroke estimate was calculated

Here is how I calculated the location estimate for Shyroke, Ukraine.

Read how all Location estimates work

Source and scope

I calculated these location estimates using hourly NASA POWER solar-resource data, with 2021 as the reference year. The seasonal figures show estimated daily electricity production averaged over each season, on a common panel-capacity basis.

The figures are calculated estimates, not measured output or a new NASA request while you browse.

Reference period and source details

The reference year describes the intended input period; complete source-year coverage is not established for every historical result. Read the technical questions about source data and downloads.

NASA POWER project reference

The data was obtained from National Aeronautics and Space Administration (NASA) Langley Research Center's Prediction Of Worldwide Energy Resources (POWER) project funded through the NASA Earth Science Division.

This source reference does not imply NASA endorsement.

Use the result carefully

What this Shyroke Location estimate includes and leaves out

Use the Shyroke figures for broad location context, with the following boundaries in mind.

  • These catalogue estimates are informational; they do not establish a site-specific production result.
  • The location is an approximate reference, not a property, rooftop or survey coordinate.
  • The energy figures support broad location comparisons; they are not a generation guarantee or detailed system design.
  • The seasonal cards show average-day energy. An hourly chart, where available, shows a different view of the daily pattern.
  • Distance and clearance between rows require panel dimensions, mounting height, terrain, acceptable shading and a project-specific design.
