Solar PV Analysis of Ealing, United Kingdom
Ealing, England, United Kingdom, is a location where you can generate energy using solar photovoltaic (PV) panels throughout the year. However, the amount of energy you can generate varies by season.
In simple terms, a solar panel's job is to convert sunlight into electricity. The more sunlight available, the more electricity it can produce. In Ealing during summer and spring seasons when days are longer and sunnier, your solar panels would typically produce more electricity - about 5.13 kilowatt-hours (kWh) and 4.36 kWh per day for each kilowatt (kW) of installed solar respectively.
During autumn and winter when days are shorter with less sunshine, your panels will produce less electricity - around 2.31 kWh/day in autumn and only about 1.07 kWh/day in winter per kW of installed solar.
So if you're thinking about when to use your solar power most efficiently in Ealing, England, summer and spring are the best times because that's when your system will be able to generate the most energy.
For a fixed panel installation at this location in Ealing UK, it’s suggested that tilting the panels at an angle of 44 degrees South would maximize total year-round production from these PV systems.
However there could be local factors that might affect how much energy you can get from your solar PV system here in Ealing such as environmental conditions like heavy cloud cover or fog which could limit sunlight reaching your panels; topography such as tall buildings or trees blocking direct sunlight; or weather conditions like heavy snowfall covering up your panels.
To overcome these potential issues:
- Regular cleaning & maintenance of the PV system ensures optimal performance.
- If possible avoid locations with shading from nearby structures or vegetation.
- Consider options for clearing snow off the panels during winter months without damaging them.
Remember though that while these factors might reduce how much energy you get from your panels, they don't mean you can't generate solar power in Ealing. It just means you might need to consider these factors when planning your solar PV system installation.
Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 763 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in United Kingdom by location

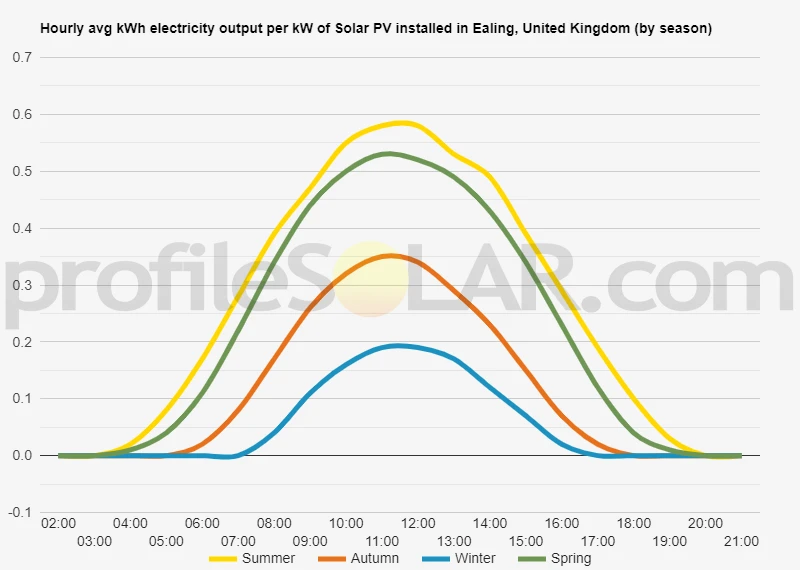

Solar output per kW of installed solar PV by season in Ealing
Seasonal solar PV output for Latitude: 51.5213, Longitude: -0.2715 (Ealing, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 44° South in Ealing, United Kingdom
To maximize your solar PV system's energy output in Ealing, United Kingdom (Lat/Long 51.5213, -0.2715) throughout the year, you should tilt your panels at an angle of 44° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Ealing, United Kingdom
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Ealing, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 44° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 35° South in Summer | 55° South in Autumn | 65° South in Winter | 43° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Ealing, United Kingdom
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Ealing, United Kingdom.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Ealing, United Kingdom
Ealing, located in West London, is primarily urban and relatively flat with some gentle hills. The area is characterized by residential buildings, parks, and commercial establishments. Being in an urban setting, the topography isn't varied or rugged.
The suitability for largescale solar PV would be dependent on several factors such as available space, sunlight exposure and local regulations. Given that Ealing is a heavily built-up area, finding large open spaces for a solar farm might be challenging within the borough itself.
However, if we consider areas nearby but outside of the city's dense core:
1) Brownfield sites: Unused or previously developed lands like old industrial sites can be repurposed for solar farms.
2) Rooftops: Large commercial buildings or complexes (like warehouses or shopping centres) often have expansive rooftops that can accommodate significant numbers of solar panels.
3) Landfills: Old landfills can also be suitable locations for solar farms as they are often large open spaces with limited other uses due to contamination issues.
4) Agricultural lands in outer suburbs could potentially serve as locations for solar farms provided it doesn't significantly disrupt local farming activities and biodiversity.
Remember that any largescale project would need to assess not just geographical suitability but also factors such as community acceptance, environmental impact assessments and grid connectivity among others.
United Kingdom solar PV Stats as a country
United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in United Kingdom?
Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.
Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
Citation Guide
Article Details for Citation
Author: Aaron Robinson
Publisher: profileSOLAR.com
First Published: Friday 29th of December 2023
Last Updated: Wednesday 26th of June 2024
Tell Us About Your Work
We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.
Feeling generous?
Share this with your friends!
Compare this location to others worldwide for solar PV potential
The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.
However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
