Mansfield Woodhouse, England, located in the United Kingdom, presents a mixed picture for solar PV energy generation. Situated in the Northern Temperate Zone, this location experiences significant seasonal variations in solar energy production throughout the year.

Seasonal Solar Output

Solar energy production in Mansfield Woodhouse peaks during the summer months, with an average daily output of 5.03 kWh per kW of installed solar capacity. Spring follows as the second most productive season, generating 4.20 kWh/day. However, autumn sees a substantial decrease to 2.02 kWh/day, while winter production drops dramatically to just 0.92 kWh/day.

Optimal Times for Solar Generation

The most favorable period for solar energy production in Mansfield Woodhouse spans from late spring through early autumn. During these months, longer daylight hours and higher sun angles contribute to increased solar panel efficiency. Conversely, the winter months present significant challenges due to shorter days, lower sun angles, and frequently overcast skies.

Panel Installation Considerations

For fixed panel installations in this location, the ideal tilt angle to maximize year-round solar production is 45 degrees facing South. This angle optimizes the panels' exposure to sunlight throughout the year, balancing the varying sun positions across seasons.

Environmental and Weather Factors

Several factors can impact solar energy production in Mansfield Woodhouse:

1. Cloud cover: The UK is known for its frequently overcast skies, particularly in autumn and winter, which can significantly reduce solar output.
2. Rainfall: The area experiences regular rainfall, which can temporarily decrease panel efficiency.
3. Short winter days: The location's northern latitude results in very short days during winter, limiting solar generation potential.

Preventative Measures

To mitigate these challenges and enhance solar energy production, consider the following measures:

• Use high-efficiency solar panels designed to perform well in low-light conditions.
• Implement a robust cleaning schedule to remove dirt and debris, especially after rainfall.
• Consider a solar tracking system to maximize exposure to available sunlight, particularly beneficial during shorter winter days.
• Explore the possibility of combining solar PV with other renewable energy sources to ensure a more consistent year-round energy supply.

While Mansfield Woodhouse may not offer ideal conditions for solar PV throughout the entire year, careful planning and appropriate technology can still make solar energy a viable and beneficial option for this location.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 763 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

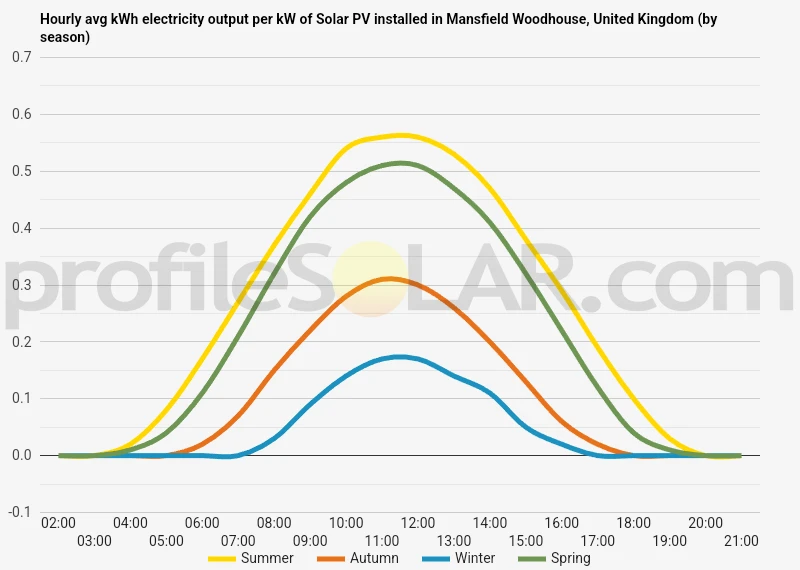

Solar output per kW of installed solar PV by season in Mansfield Woodhouse

Seasonal solar PV output for Latitude: 53.1659, Longitude: -1.2117 (Mansfield Woodhouse, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 45° South in Mansfield Woodhouse, United Kingdom

To maximize your solar PV system's energy output in Mansfield Woodhouse, United Kingdom (Lat/Long 53.1659, -1.2117) throughout the year, you should tilt your panels at an angle of 45° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Mansfield Woodhouse, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Mansfield Woodhouse, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 45° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
36° South in Summer	56° South in Autumn	66° South in Winter	45° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Mansfield Woodhouse, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Mansfield Woodhouse, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Mansfield Woodhouse, United Kingdom

Mansfield Woodhouse, located in Nottinghamshire, England, sits within a landscape characterized by gently rolling hills and shallow valleys. The area surrounding this small town is a mix of urban development, agricultural land, and patches of woodland. The terrain is generally undulating, with subtle changes in elevation that create a varied but not dramatically steep topography. To the west of Mansfield Woodhouse, the land gradually rises towards the eastern edge of the Peak District National Park. This area features more pronounced hills and valleys, though still relatively modest in height compared to other parts of the UK. To the east, the landscape becomes flatter as it transitions into the Nottinghamshire lowlands.

Potential for Large-Scale Solar PV

When considering areas nearby that might be suitable for large-scale solar PV installations, several factors come into play. The most promising locations would likely be found to the east and southeast of Mansfield Woodhouse, where the terrain becomes flatter and more open. These areas often feature larger agricultural fields that could potentially accommodate solar arrays without significant land reshaping. The gently sloping fields to the south and southwest of the town might also offer good potential for solar installations. These areas receive good sun exposure throughout the day and could be oriented to maximize solar gain. However, care would need to be taken to avoid any areas of particular natural beauty or ecological importance. It's important to note that while the topography around Mansfield Woodhouse is generally favorable for solar PV, other factors such as grid connection availability, local planning regulations, and environmental considerations would also play crucial roles in determining the most suitable sites for large-scale solar developments. Additionally, any wooded areas or locations with significant shading from hills or buildings would need to be avoided to ensure optimal solar energy production.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
