Whitchurch, England, located in the United Kingdom at latitude 52.9145 and longitude -2.7995, presents a mixed scenario for solar PV energy generation throughout the year. Situated in the Northern Temperate Zone, this location experiences significant seasonal variations in solar output.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy in Whitchurch, England, with an average daily output of 5.27kWh per kW of installed solar capacity. Spring follows closely behind, generating 4.42kWh/day. However, the performance drops considerably during autumn (2.14kWh/day) and reaches its lowest point in winter (1.01kWh/day).

These figures indicate that Whitchurch is most suitable for solar PV generation from late spring through early autumn. During these months, longer daylight hours and higher sun angles contribute to increased energy production. Conversely, the winter months pose challenges due to shorter days and lower sun angles, resulting in significantly reduced output.

Optimal Panel Installation

To maximize year-round solar energy production in Whitchurch, England, fixed solar panels should be installed at a tilt angle of 45 degrees facing south. This angle is calculated to optimize the capture of available sunlight throughout the year, considering the location's latitude and seasonal sun positions.

Environmental and Weather Factors

Several factors could potentially impact solar production in Whitchurch:

1. Cloud cover: The UK is known for its cloudy weather, which can significantly reduce solar panel efficiency.
2. Rainfall: Frequent rain in the region may lead to dirt accumulation on panels, potentially decreasing their performance.

To mitigate these issues, consider installing self-cleaning panels or implementing a regular cleaning schedule. Additionally, using high-efficiency panels designed to perform well in low-light conditions can help maintain better output during cloudy periods.

In conclusion, while Whitchurch's location is not ideal for year-round solar energy production, it still offers good potential during the summer and spring months. With proper installation techniques and maintenance, solar PV can be a viable renewable energy option for this area.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 763 locations across United Kingdom. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in United Kingdom by location

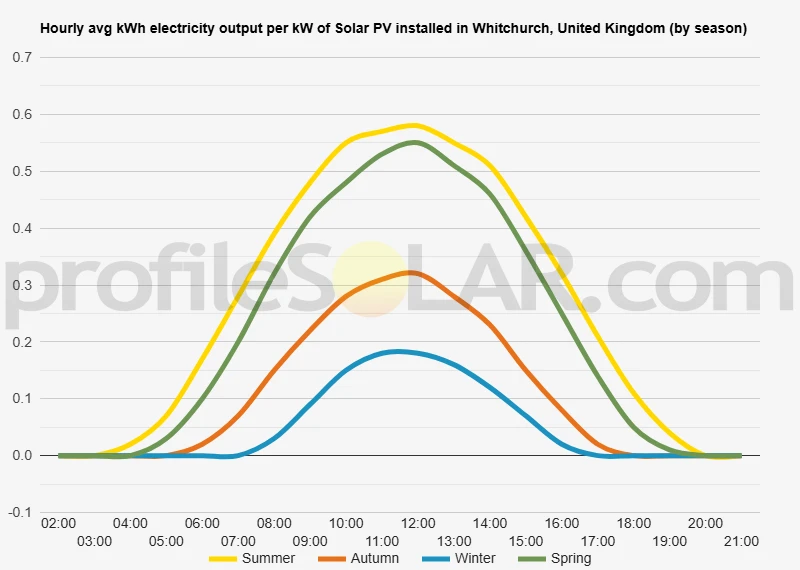

Solar output per kW of installed solar PV by season in Whitchurch

Seasonal solar PV output for Latitude: 52.9145, Longitude: -2.7995 (Whitchurch, United Kingdom), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 45° South in Whitchurch, United Kingdom

To maximize your solar PV system's energy output in Whitchurch, United Kingdom (Lat/Long 52.9145, -2.7995) throughout the year, you should tilt your panels at an angle of 45° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Whitchurch, United Kingdom

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Whitchurch, United Kingdom. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 45° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
36° South in Summer	56° South in Autumn	66° South in Winter	45° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Whitchurch, United Kingdom

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Whitchurch, United Kingdom.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Whitchurch, United Kingdom

The area surrounding Whitchurch, United Kingdom, is characterized by gently rolling countryside typical of the Shropshire and Cheshire plains. This region features a mix of low hills, shallow valleys, and relatively flat expanses of land. The landscape is predominantly rural, with a patchwork of fields, pastures, and small woodlands dotting the terrain. The topography around Whitchurch is generally low-lying, with elevations ranging from about 70 to 120 meters above sea level. The land gradually slopes upwards towards the east, where the Shropshire Hills can be found at a greater distance. To the west, the terrain becomes flatter as it approaches the Cheshire Plain. Several small rivers and streams wind through the area, including the River Weaver and its tributaries. These waterways have shaped the local landscape over time, creating subtle valleys and contributing to the overall undulating nature of the terrain.

Potential Areas for Large-Scale Solar PV

When considering locations for large-scale solar photovoltaic (PV) installations near Whitchurch, several factors come into play. The most suitable areas would typically be: 1. Open, flat agricultural land: The expanses of farmland surrounding Whitchurch could potentially accommodate solar farms. These areas often have minimal shading from trees or buildings and provide the necessary space for large installations. 2. South-facing slopes: While the region is generally flat, any gentle south-facing slopes would be ideal for solar PV as they receive more direct sunlight throughout the day. 3. Brownfield sites: Any former industrial or commercial sites in the vicinity that are no longer in use could be repurposed for solar energy production. 4. Areas with good grid connection: Locations close to existing electrical infrastructure would be preferable to minimize the costs of connecting to the power grid. It's important to note that any large-scale solar PV project would need to consider local planning regulations, environmental impact assessments, and community consultation. The rural nature of the area means that visual impact and land use changes would be significant factors in determining suitable locations. Additionally, while the topography around Whitchurch is generally favorable for solar PV, the region's climate, with its relatively high number of overcast days, may impact the overall efficiency of solar installations compared to sunnier parts of the country.

United Kingdom solar PV Stats as a country

United Kingdom ranks 14th in the world for cumulative solar PV capacity, with 13,689 total MW's of solar PV installed. This means that 4.00% of United Kingdom's total energy as a country comes from solar PV (that's 20th in the world). Each year United Kingdom is generating 203 Watts from solar PV per capita (United Kingdom ranks 25th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United Kingdom?

Yes, there are several incentives for businesses wanting to install solar energy in the United Kingdom. The UK government offers a Feed-in Tariff (FiT) scheme which pays businesses for every unit of electricity they generate from their solar panels. Additionally, businesses may be eligible for tax reliefs such as Enhanced Capital Allowances and Renewable Heat Incentives. Finally, some local authorities offer grants or other financial support to help businesses with the cost of installing solar energy systems.

Do you have more up to date information than this on incentives towards solar PV projects in United Kingdom? Please reach out to us and help us keep this information current. Thanks!
