Alvarado, Texas presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should understand before making investment decisions.

Seasonal Solar Performance

The solar energy output at this Northern Sub Tropical location varies considerably throughout the year. Summer months deliver the strongest performance at 7.00 kWh per day per kW of installed capacity, making this the prime season for solar generation. Spring follows as the second-best performing season with 5.40 kWh per day per kW, while autumn drops to 4.98 kWh per day per kW. Winter presents the most challenging conditions, producing only 3.23 kWh per day per kW of installed solar capacity. This seasonal pattern means that solar systems in Alvarado will generate more than twice as much electricity during peak summer months compared to winter. The most productive period for solar generation runs from late spring through early autumn, with summer being the optimal time for maximum energy production.

Optimal Panel Installation

For fixed panel installations at this location, the ideal angle to tilt panels to maximize total year-round production is 29 degrees facing south. This angle is calculated by analyzing daily solar elevation angles at the latitude, determining optimal panel tilt for each day, and weighting these angles by daily solar potential using NASA solar irradiance data to account for Earth's elliptical orbit.

Environmental and Weather Challenges

Several local factors in the Alvarado area can potentially impact solar energy production:

• Severe Weather Events: North Texas experiences frequent thunderstorms, occasional tornadoes, and hailstorms that can damage solar panels or create temporary shading from storm clouds
• High Summer Temperatures: Extreme heat can reduce solar panel efficiency, as photovoltaic cells perform less effectively when overheated
• Dust and Pollen: The region's agricultural activity and seasonal pollen can accumulate on panels, reducing light transmission and energy output
• Humidity and Moisture: High humidity levels can lead to condensation and potential electrical issues if systems aren't properly sealed

Preventative Measures for Better Performance

Several installation strategies can help mitigate these challenges:

• Impact-Resistant Panels: Choose solar panels rated for hail impact and high wind loads to withstand severe weather
• Proper Ventilation: Install panels with adequate air circulation underneath to prevent overheating during hot Texas summers
• Regular Maintenance Schedule: Establish routine cleaning to remove dust, pollen, and debris, particularly important during spring pollen season and after dust storms
• Quality Mounting Systems: Use corrosion-resistant mounting hardware designed for high humidity environments
• Monitoring Systems: Install performance monitoring to quickly identify when panels need cleaning or maintenance

Despite these challenges, Alvarado's location receives substantial solar energy throughout most of the year, making it a viable location for solar installations when proper precautions are taken during design and installation.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

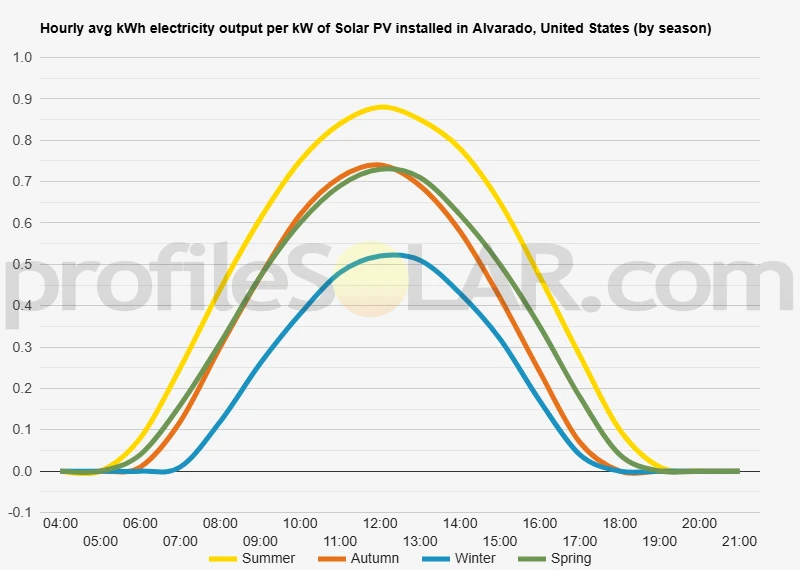

Solar output per kW of installed solar PV by season in Alvarado

Seasonal solar PV output for Latitude: 32.4065, Longitude: -97.2117 (Alvarado, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in Alvarado, United States

To maximize your solar PV system's energy output in Alvarado, United States (Lat/Long 32.4065, -97.2117) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Alvarado, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Alvarado, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° South in Summer	37° South in Autumn	48° South in Winter	26° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Alvarado, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Alvarado, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Alvarado, United States

Topographical Features Around Alvarado

The area surrounding Alvarado, Texas sits within the gently rolling terrain characteristic of north-central Texas, positioned between the more rugged hill country to the south and the flatter prairies extending northward. This region features predominantly flat to gently undulating topography with elevations ranging from approximately 600 to 800 feet above sea level. The landscape consists of broad, open plains punctuated by low ridges and shallow valleys carved by small creeks and tributaries. The terrain immediately around Alvarado exhibits the typical characteristics of the Texas Blackland Prairie, with its rich, dark clay soils and relatively modest elevation changes. Rolling hills create a subtle wave-like pattern across the landscape, though these undulations are generally gradual rather than steep. Small waterways, including Chambers Creek and its tributaries, meander through the area, creating narrow floodplains and gentle valleys that break up the otherwise consistent topography.

Drainage and Natural Features

The regional drainage pattern flows primarily toward the Trinity River system, with numerous small creeks and seasonal streams creating a dendritic network across the landscape. These waterways have carved shallow channels and created modest flood plains, but the overall relief remains relatively low throughout the area. The presence of these drainage features means that certain locations may experience seasonal flooding or have wetland characteristics that could influence land use decisions. Natural vegetation in the region consists primarily of native grasslands interspersed with scattered oak woodlands, particularly along creek bottoms and in areas with slightly more elevation. These wooded areas tend to follow the natural drainage patterns and create ribbons of trees across an otherwise open landscape.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Alvarado vicinity would be the broad, flat to gently sloping upland areas that dominate much of the surrounding landscape. These elevated plains offer several advantages including consistent south-facing slopes, minimal shading from topographical features, and generally stable soil conditions that can support substantial infrastructure. Areas positioned on the subtle ridges and higher elevations between the creek valleys would be particularly well-suited for solar development. These locations typically feature good drainage, reducing concerns about standing water or soil instability, while maintaining the relatively flat terrain necessary for efficient solar panel installation and maintenance access. The expansive agricultural fields that characterize much of the region around Alvarado represent prime candidates for solar development due to their existing cleared status and generally level topography. These areas have already been modified for human use and typically lack the environmental sensitivities associated with native habitats or waterways.

Topographical Considerations for Solar Siting

The gentle nature of the local topography means that most areas within a reasonable distance of Alvarado could accommodate solar installations without requiring extensive grading or earthwork. The modest elevation changes actually provide some benefit by allowing for natural drainage while avoiding the complications associated with steep slopes or dramatic elevation changes. Areas to avoid would include the immediate floodplains of local creeks and streams, where seasonal flooding could pose risks to equipment and where environmental regulations might restrict development. Similarly, the steeper slopes associated with creek banks and the few more pronounced hills in the region would present installation challenges and potentially reduce system efficiency. The overall topographical character of the Alvarado region, with its combination of stable soils, gentle terrain, and extensive open areas, creates favorable conditions for large-scale solar development across much of the surrounding landscape.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
