Berwyn, Pennsylvania, United States is a location with moderate solar energy potential throughout the year. Located in the Northern Temperate Zone, this area experiences significant seasonal variations in solar electricity production.

Seasonal Solar Performance

Solar panels in Berwyn generate their highest output during summer months, producing approximately 5.96 kWh per day for each kilowatt of installed capacity. Spring follows closely behind with 5.32 kWh/day per kW. Production drops considerably in autumn to 3.36 kWh/day, while winter represents the lowest generation period with just 2.07 kWh/day per kW of installed capacity.

This seasonal pattern creates a roughly 3:1 ratio between the best and worst production months, which is typical for locations in the northern United States. The combined spring and summer seasons (approximately March through August) represent the prime solar generation period in Berwyn, accounting for nearly two-thirds of annual production.

Optimal Panel Installation

For fixed panel installations in Berwyn, the ideal tilt angle to maximize year-round solar production is 34 degrees facing South. This angle optimizes the balance between summer and winter sun positions, capturing more total energy across all seasons than any other fixed position would allow.

Environmental and Weather Considerations

Several factors may impact solar production in Berwyn:

• Snow accumulation during winter months can temporarily reduce output if panels become covered. Installing panels at the recommended 34-degree tilt helps encourage snow to slide off more readily than a flatter installation would.
• Tree coverage is significant in suburban Pennsylvania communities like Berwyn. Careful site assessment is crucial to avoid shading issues, particularly from deciduous trees that may block low-angle winter sunlight.
• The region experiences moderate rainfall throughout the year. While rain helps keep panels clean, extended cloudy periods in late autumn and winter further reduce production during already low-yield months.

To mitigate these challenges, installations should include proper tree management or strategic panel placement, snow removal plans for winter months, and potentially slight adjustments to the tilt angle if winter production is particularly valued. Microinverters or power optimizers can also help minimize production losses when partial shading occurs.

Overall, while not ideal compared to sunnier regions of the country, Berwyn offers sufficient solar resources to make photovoltaic systems viable, particularly if sized appropriately to account for the significant seasonal variations.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

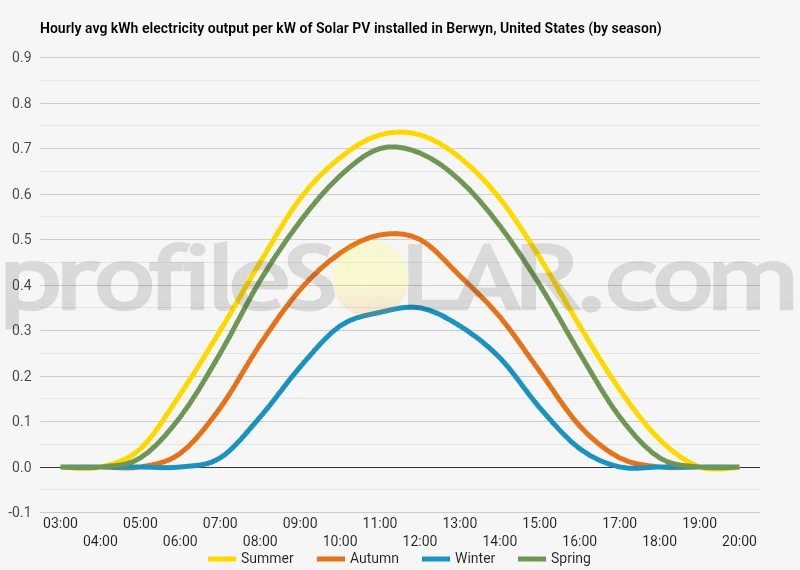

Solar output per kW of installed solar PV by season in Berwyn

Seasonal solar PV output for Latitude: 40.0358, Longitude: -75.4403 (Berwyn, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Berwyn, United States

To maximize your solar PV system's energy output in Berwyn, United States (Lat/Long 40.0358, -75.4403) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Berwyn, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Berwyn, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	44° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Berwyn, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Berwyn, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Berwyn, United States

The topography around Berwyn, Pennsylvania, is characterized by gently rolling hills and shallow valleys typical of the Piedmont Plateau region. This area sits at the transition between the Atlantic Coastal Plain to the southeast and the more elevated Appalachian Mountains to the northwest. Berwyn itself has an elevation of approximately 500 feet (152 meters) above sea level, with the surrounding landscape featuring modest variations in elevation ranging from about 300 to 600 feet. The terrain consists of undulating hills interspersed with small streams and creeks that have carved shallow valleys throughout the region. Several waterways, including tributaries of the Schuylkill River, thread through the area, creating natural drainage systems. The local geology features underlying metamorphic rock formations that contribute to the moderately rolling landscape.

Vegetation and Land Use

The natural vegetation around Berwyn consists of mixed deciduous forests, though much of the original forest cover has been replaced by suburban development, transportation infrastructure, and some agricultural land. The remaining wooded areas primarily occur along stream corridors and on steeper slopes less suitable for development. The region experiences a humid continental climate with four distinct seasons, supporting this diverse mix of vegetation. The moderate rainfall throughout the year maintains the lush green character of the landscape during growing seasons.

Potential Areas for Solar PV Development

For large-scale solar photovoltaic (PV) installations, several factors related to topography must be considered. The most suitable areas would generally be: The relatively flat plateaus or gently sloping south-facing hillsides found northwest of Berwyn would offer good potential for solar development. These areas receive consistent sunlight exposure throughout the day and would require minimal grading for installation. Former agricultural lands in Chester County, particularly those with minimal tree cover and gentle slopes, present opportunities for solar development. These open spaces typically have already been cleared and offer the necessary acreage for commercial-scale installations. The broader valley areas along the Route 202 corridor, extending toward King of Prussia and Valley Forge, contain some industrial and commercial zones that could be repurposed for ground-mounted solar arrays or accommodate large rooftop installations on existing structures. Areas to avoid would include the steeper slopes found in parts of the region, particularly those facing north, northeast, or northwest, as these receive less direct sunlight. Additionally, the numerous stream corridors and associated wetlands throughout the area would be unsuitable due to environmental sensitivities and potential flooding concerns. The moderately hilly nature of the region means that some grading might be necessary for larger installations, which could increase development costs compared to naturally flat terrain. However, the overall topography is not so extreme as to preclude solar development, especially with modern mounting systems that can accommodate some degree of slope.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
