Bloomingdale, Illinois presents a moderately favorable location for solar energy generation, though with significant seasonal variations typical of the Northern Temperate Zone climate. The area experiences substantial differences in solar output throughout the year, making it important to understand both the opportunities and challenges for solar installations.

Seasonal Solar Performance

Summer represents the peak solar generation period in Bloomingdale, with panels producing 6.25 kWh per day for each kilowatt of installed capacity. This high output reflects the combination of longer days, higher sun angles, and generally clearer weather conditions typical of Midwest summers. Spring offers the second-best solar generation period, yielding 5.28 kWh per day per kilowatt installed. The moderate temperatures and increasing daylight hours make this an excellent time for solar energy production, often with fewer weather-related obstructions than other seasons. Autumn production drops to 3.39 kWh per day per kilowatt, as daylight hours decrease and weather patterns become more variable. While still providing meaningful energy generation, this season marks the beginning of the lower-production period. Winter presents the most challenging conditions for solar generation, producing only 2.36 kWh per day per kilowatt installed. This represents less than 40% of summer production levels, highlighting the seasonal nature of solar energy in this climate zone.

Optimal Panel Configuration

For maximum year-round energy production in Bloomingdale, solar panels should be installed at a fixed tilt angle of 36 degrees facing south. This angle has been calculated to optimize total annual output by accounting for the sun's changing position throughout the year and weighting for actual solar irradiance data.

Environmental and Weather Challenges

Several significant factors in Bloomingdale can impede solar energy production, requiring careful consideration during installation planning. Snow accumulation represents the most substantial challenge during winter months. Heavy snowfall can completely cover solar panels, eliminating energy production until the snow melts or is removed. The weight of accumulated snow can also stress mounting systems if not properly designed for local snow loads. Ice formation poses both production and safety concerns. Ice can block sunlight from reaching panels and create dangerous conditions for maintenance. Additionally, the freeze-thaw cycles common in Illinois can cause ice dams that may damage panels or mounting hardware. Severe weather events, including thunderstorms with large hail, strong winds, and occasional tornadoes, present risks to solar installations. Hailstorms can crack or shatter solar panels, while high winds can damage mounting systems or cause debris to impact the array.

Preventative Installation Measures

Several strategies can help maximize solar energy production and protect installations in Bloomingdale's climate. Snow management begins with proper panel positioning and mounting. Installing panels at the optimal 36-degree angle naturally helps snow slide off more easily than flatter installations. Leaving adequate clearance below panels allows snow to fall away without accumulating against the array. Wind and weather protection requires robust mounting systems engineered for local wind loads and weather conditions. Using panels and mounting hardware rated for severe weather conditions, including impact resistance for hail, provides essential protection for the investment. Regular maintenance becomes particularly important in this climate. Scheduling inspections after major weather events and maintaining clear access routes for snow removal ensures optimal performance. Installing monitoring systems helps identify production issues quickly, whether from weather-related damage or seasonal obstructions. Proper electrical design with adequate grounding and surge protection helps protect against the frequent thunderstorms common in the region. Using quality inverters and electrical components rated for temperature extremes ensures reliable operation through Illinois's wide temperature swings.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

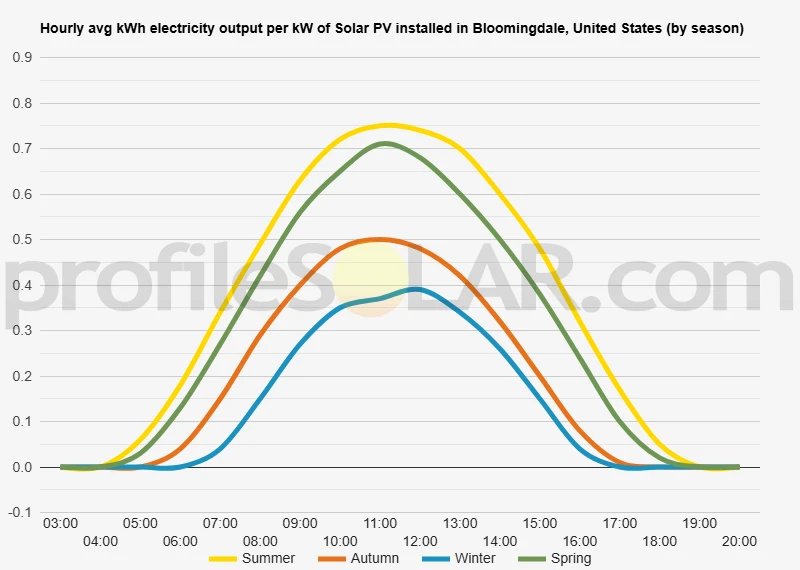

Solar output per kW of installed solar PV by season in Bloomingdale

Seasonal solar PV output for Latitude: 41.9462, Longitude: -88.0758 (Bloomingdale, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Bloomingdale, United States

To maximize your solar PV system's energy output in Bloomingdale, United States (Lat/Long 41.9462, -88.0758) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Bloomingdale, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Bloomingdale, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	46° South in Autumn	56° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Bloomingdale, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Bloomingdale, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Bloomingdale, United States

Topography Around Bloomingdale

Bloomingdale sits in the heart of DuPage County, Illinois, within the greater Chicago metropolitan area. The landscape surrounding this suburban community is characterized by gently rolling terrain typical of the Midwest prairie region. The area lies within what geologists call the Prairie Peninsula, where centuries of glacial activity have created relatively flat to gently undulating topography with subtle elevation changes. The terrain around Bloomingdale features low hills and shallow valleys, with elevations generally ranging from about 700 to 900 feet above sea level. The landscape slopes very gradually, with most grade changes being imperceptible to casual observation. This gentle topography is punctuated by numerous wetlands, small lakes, and creek systems that drain toward the Des Plaines River to the east. Much of the immediate area consists of developed suburban neighborhoods, commercial districts, and transportation corridors. However, patches of preserved prairie land and agricultural fields still exist in the broader region, particularly as one moves further from the urban core. The soil composition is primarily deep, fertile prairie soils that developed over thousands of years of grassland growth.

Optimal Areas for Large-Scale Solar Development

The relatively flat terrain throughout the Bloomingdale region presents excellent opportunities for large-scale solar photovoltaic installations. The most suitable locations would be the remaining undeveloped agricultural fields and open prairie areas that extend southwest and west of the community. These areas offer the necessary combination of flat topography, minimal shading from trees or structures, and adequate space for utility-scale solar arrays. Agricultural land in nearby Kane County and western DuPage County would be particularly well-suited for solar development. These areas feature large, unobstructed parcels with gentle slopes that rarely exceed five degrees, making them ideal for ground-mounted solar installations. The prairie landscape naturally provides excellent southern exposure with minimal topographical barriers that could create shadows during peak sunlight periods. Former industrial sites and brownfields in the region also present promising opportunities for solar development. These previously developed areas often have the necessary electrical infrastructure already in place and may require less environmental review than pristine natural areas. Several such sites exist along major transportation corridors like Interstate 355 and Route 53. The flat rooftops of large commercial and industrial buildings throughout the area represent another significant opportunity for solar installations. Distribution centers, manufacturing facilities, and shopping centers in Bloomingdale and surrounding communities like Schaumburg, Addison, and Carol Stream offer substantial roof space with minimal obstructions and appropriate structural capacity for solar arrays. Areas near existing electrical transmission infrastructure would be particularly advantageous for large-scale development, as they would minimize the costs and complexity of connecting solar installations to the electrical grid. The region benefits from well-developed electrical infrastructure serving the Chicago metropolitan area, with multiple transmission lines and substations that could accommodate additional renewable energy input.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
