Braddock, Pennsylvania is a moderately suitable location for year-round solar energy generation, though it faces some seasonal challenges typical of the Northern Temperate Zone climate.

Seasonal Solar Performance

The solar energy output varies significantly throughout the year at this location. Summer provides the best conditions with 6.08 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best season with 5.20 kWh per day per kW, offering strong solar production as daylight hours increase and weather improves. Autumn sees a notable decline to 3.34 kWh per day per kW as the sun angle decreases and weather patterns change. Winter presents the greatest challenge with only 1.85 kWh per day per kW, representing less than one-third of summer production levels. For maximum year-round energy production from fixed solar panels at this location, the ideal installation angle is 34 degrees tilted toward the south. This angle has been calculated to optimize total annual solar output based on the sun's path and seasonal variations at this latitude.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Braddock area can significantly impact solar energy generation:

• Industrial air pollution: The region's history of heavy industry, particularly steel production, can create atmospheric haze and particulate matter that reduces solar irradiance
• Frequent cloud cover: Pennsylvania's continental climate brings regular overcast conditions, especially during autumn and winter months
• Snow accumulation: Winter snowfall can completely block solar panels, eliminating production until cleared
• High humidity: Moisture in the air can scatter sunlight and reduce panel efficiency

Preventative Measures for Better Performance

Several installation strategies can help maximize solar production despite these challenges. Regular panel cleaning is essential to remove dust, pollen, and industrial residue that accumulates on panel surfaces. Installing panels at the optimal 34-degree angle not only maximizes sun exposure but also helps snow slide off more easily during winter months. Consider installing a monitoring system to track performance and identify when cleaning or maintenance is needed. Snow guards or heating elements can be added in areas with heavy snowfall, though the cost-benefit should be carefully evaluated. Proper spacing between panel rows prevents shading and allows for maintenance access. Choosing high-quality panels with anti-reflective coatings can help maintain efficiency in less-than-ideal atmospheric conditions. While Braddock's industrial environment presents some challenges, proper installation and maintenance practices can help ensure reliable solar energy production throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

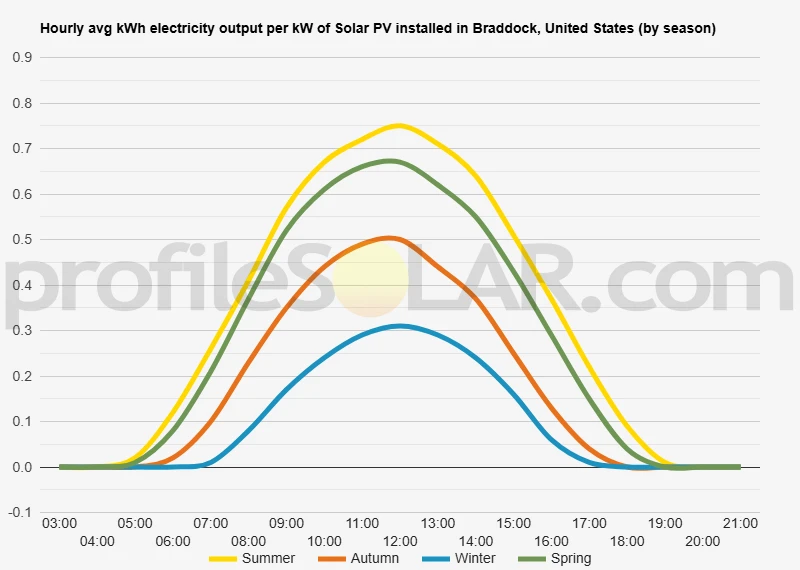

Solar output per kW of installed solar PV by season in Braddock

Seasonal solar PV output for Latitude: 40.3931, Longitude: -79.8651 (Braddock, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Braddock, United States

To maximize your solar PV system's energy output in Braddock, United States (Lat/Long 40.3931, -79.8651) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Braddock, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Braddock, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	44° South in Autumn	55° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Braddock, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Braddock, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Braddock, United States

Topographical Features Around Braddock

Braddock sits in the Monongahela River valley in southwestern Pennsylvania, positioned within the broader Appalachian Plateau region. The town itself occupies relatively flat terrain along the riverbank, but the surrounding landscape is characterized by rolling hills and steep-sided valleys that are typical of this part of western Pennsylvania. The Monongahela River flows northwest through the area, creating a natural corridor of flatter land that has historically supported industrial development. The immediate vicinity features a mix of urbanized bottomland along the river and forested hillsides that rise sharply from the valley floor. These hills are remnants of the dissected Appalachian Plateau, carved by centuries of water erosion. The elevation changes can be quite dramatic over short distances, with some hillsides rising several hundred feet above the river level. Much of the steeper terrain remains wooded, while the gentler slopes and valley floors have been developed for residential, commercial, and industrial uses. The region's topography reflects its geological history, with underlying sedimentary rock layers that have been folded and eroded over millions of years. This has created a landscape of parallel ridges and valleys running generally northeast to southwest, though the Monongahela cuts across this grain as it meanders toward its confluence with the Allegheny River in Pittsburgh.

Optimal Areas for Large-Scale Solar Development

The most promising locations for substantial solar photovoltaic installations would be found on the broader hilltops and gentler southern-facing slopes that surround the Braddock area. These elevated plateaus offer several advantages over the valley floor locations. They typically receive better sun exposure throughout the day without the shadowing effects that can occur in narrow valleys, and they often have fewer competing land uses than the more densely developed bottomlands. Former industrial sites and brownfields in the region could present excellent opportunities for solar development, particularly those located on relatively flat or gently sloping terrain. Many of these sites have existing electrical infrastructure nearby, which can significantly reduce development costs. The legacy of heavy industry in the Mon Valley means there are numerous large parcels that may be suitable for repurposing as solar farms. Agricultural areas on the rolling hills southeast and southwest of Braddock would also be well-suited for solar installations. These areas typically feature open fields with minimal tree cover and gentle to moderate slopes that can be effectively utilized for solar panel arrays. The key is identifying parcels with predominantly southern exposure and minimal shading from surrounding ridgelines or forest edges. Areas to avoid would include the steepest hillsides, heavily forested locations, and flood-prone bottomlands near the Monongahela River. The narrow valleys that branch off from the main river corridor often have limited sun exposure due to surrounding hills and would not be cost-effective for large-scale solar development. Similarly, areas with significant existing development or critical habitat designations would present challenges for major solar installations.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
