Budd Lake, New Jersey, United States offers moderate solar energy generation potential throughout the year, though with significant seasonal variation typical of its Northern Temperate Zone location.

Seasonal Solar Performance

The solar energy output at this location varies considerably across the seasons. Summer provides the highest generation at 6.02 kWh per day per kW of installed solar capacity, making it the prime solar season. Spring follows as the second-best period with 5.44 kWh per day per kW, offering nearly as strong performance as summer months. Autumn sees a notable decline to 3.48 kWh per day per kW, while winter presents the most challenging conditions with only 2.14 kWh per day per kW of generation. This winter figure represents roughly one-third of summer production, highlighting the significant seasonal differences in solar potential. For optimal year-round energy capture at this location, solar panels should be installed at a fixed tilt angle of 35 degrees facing south. This angle maximizes total annual production by accounting for the sun's changing position throughout the year and the varying solar irradiance levels across seasons.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Budd Lake area can impact solar energy generation:

• Snow accumulation during winter months can block panels and reduce output
• Ice formation may create safety hazards and temporarily impair panel function
• Frequent cloud cover and overcast conditions common in New Jersey
• High humidity levels that can affect panel efficiency
• Potential for severe weather including thunderstorms and occasional hurricanes

Preventative Measures for Better Solar Performance

To maximize energy production despite these challenges, several installation strategies prove effective. Proper panel mounting systems should allow for adequate drainage and air circulation to prevent ice buildup and improve cooling efficiency during humid conditions. Installing panels at the optimal 35-degree tilt angle not only maximizes sun exposure but also helps snow slide off more easily, reducing winter maintenance needs. Consider using panel designs with smooth surfaces and anti-reflective coatings that shed snow and ice more effectively. Robust mounting systems designed to withstand high winds and severe weather are essential for this region. Regular maintenance schedules should include cleaning panels after storms and checking for debris accumulation, particularly during autumn when falling leaves may create shading issues. While Budd Lake's solar potential is decent for the northeastern United States, the significant winter reduction in output means that battery storage or grid-tie systems become particularly important for year-round energy security.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

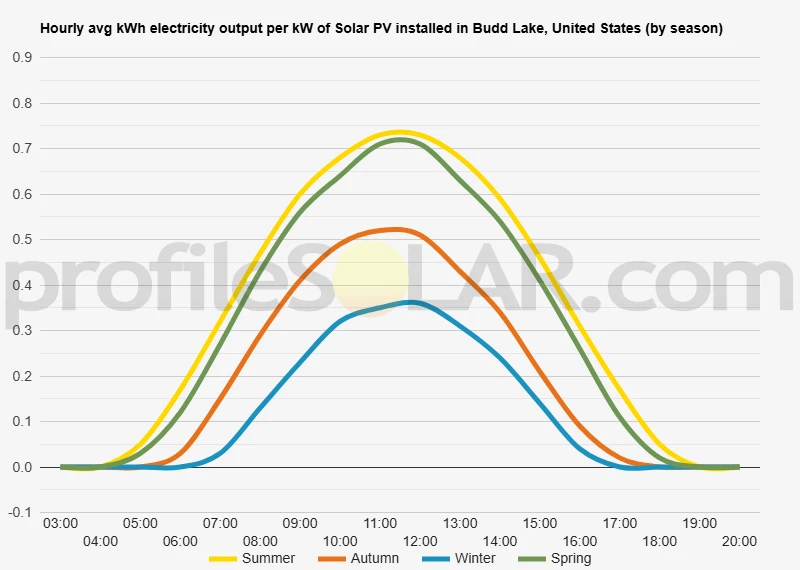

Solar output per kW of installed solar PV by season in Budd Lake

Seasonal solar PV output for Latitude: 40.8731, Longitude: -74.7426 (Budd Lake, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Budd Lake, United States

To maximize your solar PV system's energy output in Budd Lake, United States (Lat/Long 40.8731, -74.7426) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Budd Lake, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Budd Lake, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	45° South in Autumn	56° South in Winter	34° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Budd Lake, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Budd Lake, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Budd Lake, United States

Topographical Features Around Budd Lake

Budd Lake sits within the rolling hills and valleys characteristic of northern New Jersey's Morris County. The area forms part of the New Jersey Highlands, a region defined by ancient crystalline bedrock that creates a landscape of moderate elevation changes and varied terrain. The lake itself occupies a natural depression, surrounded by gentle slopes that rise gradually toward higher ground. The immediate vicinity features a mix of forested hills, open meadows, and developed residential areas. Elevations in the region typically range from around 800 feet near the lake to over 1,200 feet on the surrounding ridges. The terrain displays the classic glacially-influenced topography common throughout this part of New Jersey, with rounded hilltops and U-shaped valleys carved by ice age activity.

Drainage Patterns and Land Use

The watershed around Budd Lake drains primarily toward the Raritan River system, with numerous small streams and seasonal watercourses flowing through the valleys. Much of the higher ground remains forested with mixed hardwood and coniferous species, while lower elevations have been cleared for agriculture and residential development over the centuries. The soil composition varies considerably across the area, ranging from well-drained sandy loams on the hilltops to heavier clay soils in the valley bottoms. Rock outcroppings of gneiss and granite appear frequently, particularly on steeper slopes and ridge lines.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be found on the broader, flatter ridge tops and plateau areas surrounding Budd Lake. These elevated positions offer several advantages, including relatively level terrain that minimizes grading requirements and reduces installation costs. The open agricultural fields on the gentler slopes, particularly those facing south or southwest, present excellent opportunities for solar development. These areas typically have fewer trees and existing infrastructure constraints compared to the more densely forested sections of the region. Former agricultural land that has been taken out of production would be particularly well-suited for solar installations. These sites often feature good road access, existing electrical infrastructure nearby, and soil conditions that can support mounting systems without extensive preparation. The areas north and west of Budd Lake, where the terrain opens up into broader valleys and plateaus, would likely provide the most cost-effective locations for large solar arrays. These zones combine favorable topography with sufficient distance from the lake itself to avoid environmental sensitivities while maintaining reasonable proximity to existing transmission infrastructure.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
