Solar PV Energy Generation in Burr Ridge, Illinois

Burr Ridge, Illinois, United States, located in the Northern Temperate Zone, presents a moderate opportunity for solar energy generation through photovoltaic (PV) systems. The seasonal electricity output varies significantly throughout the year, creating both opportunities and challenges for solar power users. The seasonal production pattern shows strong performance during summer months, with an average daily output of 6.25kWh per kW of installed capacity. Spring follows as the second most productive season, generating 5.26kWh/day per kW. Production decreases substantially in autumn to 3.32kWh/day per kW, while winter sees the lowest output at just 1.99kWh/day per kW of installed capacity. For homeowners and businesses in Burr Ridge considering fixed solar panel installations, the ideal tilt angle to maximize year-round energy production is 36 degrees facing South. This angle has been calculated by analyzing solar elevation patterns at this specific latitude and weighting them according to daily PV potential, accounting for Earth's elliptical orbit.

Environmental and Weather Factors

Several significant local factors can impede solar production in Burr Ridge:

• Snow accumulation in winter months can cover panels and drastically reduce output during the already low-production season
• Cloud cover is common in the Chicago metropolitan area, particularly during late fall and winter
• Potential shading from deciduous trees that surround many Burr Ridge properties
• Occasional severe weather including hail and strong winds

To mitigate these challenges, solar installations in Burr Ridge should include snow-shedding mounting systems with sufficient tilt to help panels clear themselves. Panel arrays should be positioned away from potential shade sources, especially on the southern exposure. Snow removal plans should be considered for winter months to maximize limited production. Additionally, quality hail-resistant panels with strong mounting hardware can protect against severe weather damage. The substantial difference between summer and winter production (summer produces more than three times the electricity of winter) means Burr Ridge residents might consider slightly oversizing their systems to accommodate winter needs or implementing battery storage to balance seasonal variations.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

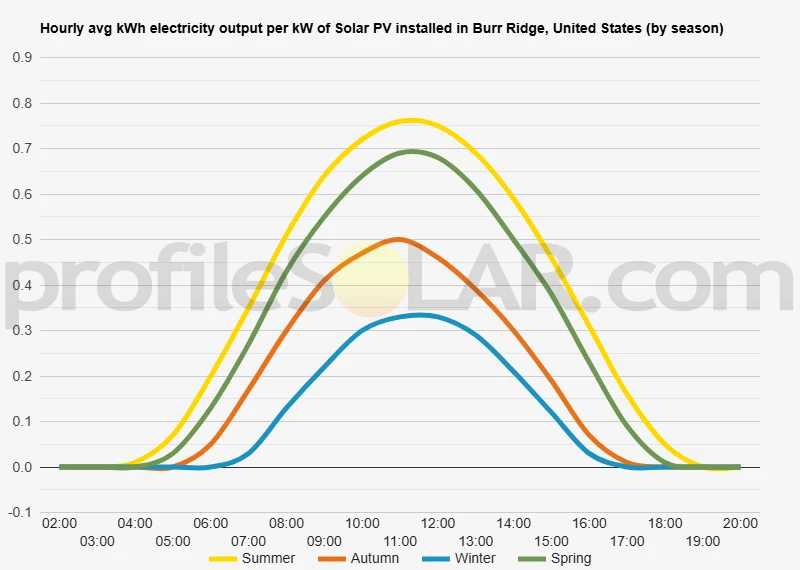

Solar output per kW of installed solar PV by season in Burr Ridge

Seasonal solar PV output for Latitude: 41.7489, Longitude: -87.9184 (Burr Ridge, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Burr Ridge, United States

To maximize your solar PV system's energy output in Burr Ridge, United States (Lat/Long 41.7489, -87.9184) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Burr Ridge, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Burr Ridge, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	45° South in Autumn	56° South in Winter	34° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Burr Ridge, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Burr Ridge, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Burr Ridge, United States

The topography around Burr Ridge, Illinois presents a gently rolling landscape characteristic of northeastern Illinois. Located in the Chicago metropolitan area, Burr Ridge sits within what geologists call the Valparaiso Moraine, a ridge of glacial deposits formed during the Wisconsin Glaciation period approximately 14,000 years ago. This glacial activity created the subtle hills and shallow valleys that define the area today. The terrain in and around Burr Ridge features modest elevation changes, with heights ranging between approximately 650 and 750 feet above sea level. The area contains numerous small waterways, including Flagg Creek, which runs through parts of the community. These waterways have, over time, carved shallow valleys into the otherwise relatively flat landscape. The Des Plaines River valley lies a few miles to the east, representing one of the more significant topographical features in the broader region.

Soil Composition and Land Use

The soils around Burr Ridge are primarily composed of glacial till, which includes a mixture of clay, silt, sand, and gravel. These soils generally offer good drainage in the slightly elevated areas while retaining more moisture in the lower-lying sections. The natural vegetation of the region was predominantly prairie and oak savanna, though much of this has been replaced by suburban development, including residential neighborhoods, commercial districts, and transportation infrastructure. The Burr Ridge area represents a transition zone between the more densely developed inner suburbs of Chicago to the east and the more rural landscapes to the west and southwest. This gradient is reflected in the land use patterns, with development density decreasing as one moves westward from Burr Ridge.

Potential Areas for Solar PV Development

When considering areas near Burr Ridge suitable for large-scale solar PV installations, several factors come into play including topography, existing land use, and proximity to electrical infrastructure. The generally flat to gently rolling terrain throughout much of the region is advantageous for solar development, as it minimizes grading requirements and associated costs. The southwestern portions of DuPage County and adjacent areas in Will County offer more promising locations for utility-scale solar development due to their less intensive development patterns and larger contiguous parcels of land. Areas around Lemont, Lockport, and Homer Glen, situated within 10-15 miles of Burr Ridge, contain agricultural lands and former industrial sites that could potentially accommodate large solar arrays. Former quarry sites and brownfields in the vicinity also present opportunities for solar development. The Cal-Sag Channel corridor, running east-west several miles south of Burr Ridge, includes several industrial properties and disturbed lands that might be repurposed for renewable energy generation.

Topographical Considerations for Solar Development

The subtle variations in the local topography do create some considerations for solar development. South-facing slopes, even gentle ones, offer naturally optimized conditions for fixed-tilt solar arrays. Several such areas can be found in the moraines southwest of Burr Ridge. Conversely, north-facing slopes would be less ideal unless utilizing tracking systems. Low-lying areas near streams and in floodplains would generally be unsuitable for solar development due to flooding risks and potential environmental concerns. These areas are more prevalent along the Des Plaines River valley and along smaller waterways like Flagg Creek. The relatively open character of former agricultural lands in the southwestern suburbs provides minimal shading obstacles, which is beneficial for solar production. These areas also typically have fewer tree canopies to clear, reducing both environmental impact and site preparation costs. While the immediate vicinity of Burr Ridge itself is largely developed with suburban housing and commercial properties, making large-scale solar development challenging, the broader region within a 15-20 mile radius offers numerous possibilities on less densely developed lands.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
