Butler, Pennsylvania represents a moderately favorable location for solar energy generation, though it faces some significant seasonal challenges typical of northern temperate climates. The location experiences substantial variation in solar output throughout the year, with peak performance during summer months and considerably reduced generation during winter.

Seasonal Solar Performance

The solar energy potential at Butler varies dramatically across the seasons. Summer provides the strongest performance at 6.08 kWh per day per kW of installed capacity, making it the ideal time for solar generation at this location. Spring follows as the second-best season with 5.20 kWh per day per kW, offering excellent solar conditions as daylight hours increase and weather improves. Autumn sees a notable decline to 3.34 kWh per day per kW as the region transitions toward winter conditions. Winter presents the most challenging period for solar generation, dropping significantly to just 1.85 kWh per day per kW of installed capacity. For optimal year-round energy production from a fixed panel installation at Butler, solar panels should be tilted at 35 degrees facing south. This angle maximizes total annual solar output by accounting for the sun's varying position throughout the year and the location's specific latitude.

Environmental and Weather Challenges

Several factors at Butler, Pennsylvania can significantly impact solar energy production throughout the year. Snow accumulation during winter months poses a major concern, as it can completely block solar panels and eliminate energy generation for extended periods. The region's climate typically brings substantial snowfall that can persist on panels for days or weeks. Cloud cover represents another significant challenge, particularly during autumn and winter when overcast skies are more frequent. This reduces the direct sunlight reaching solar panels and contributes to the lower seasonal output figures during these periods. Ice formation can also occur during winter and early spring, creating both safety hazards and production impediments. Additionally, the region experiences seasonal storms that can deposit debris, leaves, and dirt on solar installations.

Preventative Measures for Better Performance

Several installation strategies can help maximize solar production despite these environmental challenges:

• Install panels at steeper angles (closer to 45-50 degrees) to encourage natural snow shedding, though this may slightly reduce summer peak performance
• Ensure adequate spacing between panel rows to prevent snow from one row blocking panels behind it
• Consider installing heating elements or snow guards specifically designed for solar panels in areas with heavy snowfall
• Plan for regular cleaning and maintenance, particularly after storms and during autumn leaf-fall season
• Install monitoring systems to quickly identify when panels are blocked or underperforming

Proper system design should also account for the seasonal variation by potentially oversizing the installation to compensate for reduced winter production. Ground-mounted systems may offer advantages over rooftop installations in this climate, as they provide easier access for snow removal and maintenance while allowing for optimal positioning regardless of roof orientation. Despite these challenges, Butler's strong summer and spring solar potential, combined with proper installation techniques and maintenance practices, can still make solar energy a viable option for reducing electricity costs and environmental impact.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

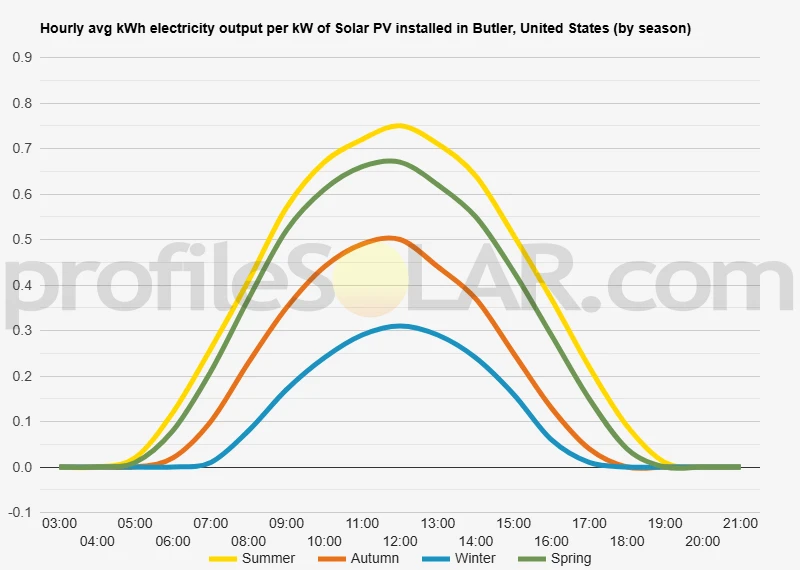

Solar output per kW of installed solar PV by season in Butler

Seasonal solar PV output for Latitude: 40.8409, Longitude: -79.8592 (Butler, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Butler, United States

To maximize your solar PV system's energy output in Butler, United States (Lat/Long 40.8409, -79.8592) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Butler, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Butler, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	44° South in Autumn	56° South in Winter	34° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Butler, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Butler, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Butler, United States

Topographical Features Around Butler, Pennsylvania

Butler sits in the rolling hills of western Pennsylvania, positioned within the Allegheny Plateau region approximately 35 miles north of Pittsburgh. The terrain around Butler is characterized by gentle to moderate hills with elevations typically ranging from 900 to 1,300 feet above sea level. The landscape features a mix of agricultural valleys, wooded ridgelines, and developed areas that create a moderately undulating topography typical of southwestern Pennsylvania.

The area is drained by several waterways, including Connoquenessing Creek and its tributaries, which have carved shallow valleys through the region over millennia. These creek valleys create natural low-lying areas surrounded by gradually sloping hillsides. The underlying geology consists primarily of sedimentary rocks, including sandstone and shale formations that contribute to the region's relatively stable soil conditions.

Much of the surrounding countryside consists of former agricultural land that has been converted to residential and commercial development, though significant portions remain as farmland or have reverted to secondary forest growth. The terrain generally lacks the steep slopes and dramatic elevation changes found in other parts of Pennsylvania, making it more accessible for various types of development.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Butler would be the gently sloping hillsides with southern exposure, particularly those with gradients between 3 and 15 degrees. These areas provide the ideal combination of adequate drainage, good solar access, and manageable construction conditions. The rolling hills south and southeast of Butler offer numerous sites where solar arrays could be positioned to maximize exposure to the sun throughout the day.

Agricultural areas with relatively flat to gently rolling terrain would also present excellent opportunities for solar development. These locations typically have fewer trees and existing infrastructure constraints, making them more cost-effective to develop. The open farmland southwest of Butler, extending toward the communities of Saxonburg and Valencia, contains several large parcels that could accommodate utility-scale solar installations.

Ridge tops and elevated plateaus in the region offer another category of promising sites, as they tend to have fewer obstructions from surrounding vegetation and structures. However, these locations would need to be evaluated for wind exposure and accessibility for construction and maintenance equipment. Areas along the higher elevations northeast of Butler, where the terrain opens into broader hilltops, could provide suitable conditions for solar development.

Former industrial sites and brownfield locations around Butler may also present opportunities for solar development, as these areas often have existing electrical infrastructure and fewer environmental constraints than pristine natural areas. The relatively level terrain of many former industrial properties, combined with their proximity to transmission lines, makes them attractive candidates for solar installations that could help revitalize previously developed land.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!

Citation Guide

Article Details for Citation

Tell Us About Your Work

We love seeing how our research helps others! If you've cited this article in your work, we'd be delighted to hear about it. Drop us a line via our Contact Us page or on X, to share where you've used our information - we may feature a link to your work on our site. This helps create a network of valuable resources for others in the solar energy community and helps us understand how our research is contributing to the field. Plus, we occasionally highlight exceptional works that reference our research on our social media channels.

Feeling generous?

Share this with your friends!

Compare this location to others worldwide for solar PV potential

The solar PV analyses available on our website, including this one, are offered as a free service to the global community. Our aim is to provide education and aid informed decision-making regarding solar PV installations.

However, please note that these analyses are general guidance and may not meet specific project requirements. For in-depth, tailored forecasts and analysis crucial for feasibility studies or when pursuing maximum ROI from your solar projects, feel free to contact us; we offer comprehensive consulting services expressly for this purpose.
