Solar Energy Potential in Calipatria, California

Calipatria, California, located in the Northern Sub Tropics at coordinates 33.1256, -115.5142, offers excellent conditions for solar energy production throughout the year. This location demonstrates strong solar potential with significant seasonal variations in energy output. The solar productivity at this location shows a clear seasonal pattern. Summer stands out as the most productive season, generating approximately 8.17kWh per day for each kilowatt of installed solar capacity. Spring follows closely behind with 7.96kWh/day. Production decreases in autumn to 5.52kWh/day, while winter represents the lowest output period with 4.02kWh/day per kilowatt installed.

Optimal Panel Configuration

For fixed panel installations in Calipatria, the ideal tilt angle to maximize year-round solar production is 29 degrees facing South. This specific angle has been calculated by analyzing the solar elevation throughout the year and weighting it against the potential daily production at this location.

Environmental Considerations

Despite its excellent solar potential, Calipatria faces some environmental challenges that could impact solar production. The area experiences extremely high temperatures during summer months, which can reduce solar panel efficiency. When panels get too hot, their electrical resistance increases, potentially decreasing output by 10-25% during peak temperature periods. Additionally, Calipatria's location near the Salton Sea means dust and occasional sandstorms can coat panels, reducing their light absorption capabilities. The agricultural activity in the Imperial Valley also contributes to airborne particles.

Preventative Measures

Several strategies can mitigate these environmental challenges:

• Install panels with sufficient spacing and elevation to allow airflow underneath, reducing heat buildup
• Consider high-temperature rated panels specifically designed to maintain better efficiency in extreme heat
• Implement regular cleaning schedules, potentially with automated cleaning systems in this dusty environment
• Install panels at the recommended 29-degree tilt, which also helps with natural cleaning during rainfall events
• Consider tracking systems to maximize the strong spring and summer production potential

With proper system design addressing these environmental factors, Calipatria represents an excellent location for solar energy production, particularly from spring through early fall when output significantly exceeds the winter and late autumn periods.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

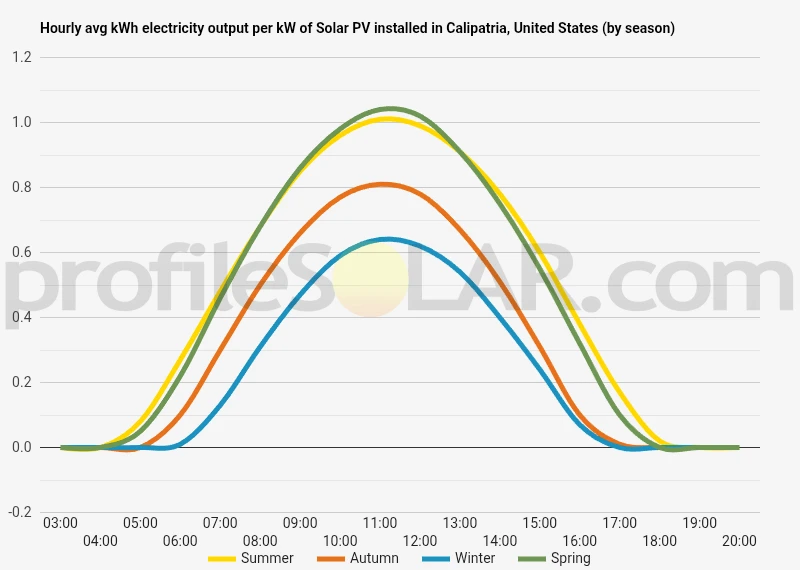

Solar output per kW of installed solar PV by season in Calipatria

Seasonal solar PV output for Latitude: 33.1256, Longitude: -115.5142 (Calipatria, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in Calipatria, United States

To maximize your solar PV system's energy output in Calipatria, United States (Lat/Long 33.1256, -115.5142) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Calipatria, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Calipatria, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
17° South in Summer	38° South in Autumn	48° South in Winter	26° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Calipatria, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Calipatria, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Calipatria, United States

The terrain around Calipatria, California presents a distinctive landscape shaped by its location in the Imperial Valley, part of the larger Colorado Desert region. Situated at approximately 180 feet below sea level, Calipatria has the distinction of being one of the lowest-elevation communities in the United States. This area is characterized by remarkably flat topography, with minimal variations in elevation across the immediate vicinity. The surrounding landscape features expansive agricultural fields that dominate much of the Imperial Valley, creating a patchwork of cultivated land that contrasts with the natural desert environment. To the east of Calipatria lies the Salton Sea, a large saline lake that significantly influences the local environment. The shoreline areas between Calipatria and the Salton Sea consist primarily of flat, salt-encrusted terrain with sparse vegetation adapted to the highly saline conditions.

Regional Topographical Features

Moving beyond the immediate vicinity of Calipatria, the topography becomes more varied. To the west, the terrain gradually rises toward the Peninsular Ranges, which include the Santa Rosa Mountains and the San Jacinto Mountains. These mountain ranges create a dramatic backdrop to the otherwise flat valley floor, with elevations rapidly increasing from below sea level to several thousand feet above. To the east and northeast, beyond the Salton Sea, the Chocolate Mountains rise from the desert floor, creating another significant topographical feature in the region. These mountains, with their rugged, arid landscape, form part of the boundary of the Imperial Valley. The southern extent of the region transitions into the agricultural lands continuing toward the US-Mexico border, maintaining the predominantly flat character of the Imperial Valley. To the north, the terrain gradually transitions into the Coachella Valley, another below-sea-level depression that shares many topographical similarities with the Imperial Valley.

Suitability for Solar PV Development

The areas surrounding Calipatria offer exceptional conditions for large-scale solar photovoltaic development for several reasons related to the topography and associated environmental factors. The flat, open terrain of the Imperial Valley provides ideal conditions for solar array installation, minimizing the need for extensive land grading and reducing construction costs. The minimal topographical variation allows for efficient panel arrangement and optimal sun exposure throughout the day. Particularly promising are the undeveloped desert lands to the west and southwest of Calipatria. These areas combine favorable topography with minimal current land use, creating opportunities for large-scale installations with reduced land use conflicts. The gently sloping alluvial fans at the base of the western mountain ranges provide slightly elevated positions with good drainage characteristics, beneficial for long-term infrastructure stability. The areas east of Calipatria, particularly the former agricultural lands near the Salton Sea that have been affected by increasing salinity, represent another opportunity. These lands, which have become less productive for agriculture due to soil salinization, could be repurposed for solar energy generation, taking advantage of the flat terrain and existing access to transmission infrastructure. Northern areas extending toward the Coachella Valley also present suitable topography for solar development, with extensive flat terrain and minimal vegetation coverage. The transition zones between the agricultural areas and the surrounding desert offer particularly promising locations, as they typically have reduced agricultural value while maintaining the favorable flat topography needed for efficient solar array deployment. The consistent elevation and minimal shading from topographical features throughout much of this region create conditions where solar panels can receive maximum exposure throughout the year, enhancing the overall energy generation potential of installations in this area.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
