Canyon Lake, Texas, located in the Northern Sub Tropics, offers reasonably good conditions for year-round solar energy generation, though with notable seasonal variations that potential solar installers should understand.

Seasonal Solar Performance

The location demonstrates strong summer performance with solar panels generating 6.82 kWh per day per kW of installed capacity during the hottest months. Spring follows as the second-best season at 5.53 kWh/day per kW, while autumn produces 5.15 kWh/day per kW. Winter represents the challenging period, dropping significantly to 3.41 kWh/day per kW of installed solar capacity. This seasonal pattern means that summer months are ideal for maximizing solar energy production, with spring and autumn providing solid supplementary generation. Winter requires careful planning due to the substantial drop in output compared to peak season. For optimal year-round performance, fixed solar panels at Canyon Lake should be tilted at 27 degrees facing south. This angle maximizes total annual energy production by accounting for the sun's changing position throughout the year and the area's specific latitude.

Local Environmental Challenges

Several environmental and weather factors in the Canyon Lake area can impact solar energy production:

• Severe thunderstorms and hail during spring and early summer months
• High humidity levels that can reduce panel efficiency
• Dust and pollen accumulation, particularly during cedar fever season
• Occasional ice storms in winter that can damage equipment

Protective Measures for Better Performance

Installing solar systems with appropriate safeguards can help maintain consistent energy production despite these challenges. Choose panels with tempered glass and reinforced frames that can withstand hail impact. Ensure proper drainage and ventilation around panels to manage humidity effects. Regular cleaning schedules become essential, especially during high pollen seasons when cedar and oak trees release significant amounts of airborne particles. Installing panels with anti-soiling coatings can reduce maintenance requirements. Proper grounding and surge protection systems are crucial given the area's thunderstorm activity. Consider micro-inverters or power optimizers that can maintain system performance even if individual panels are temporarily shaded or affected by weather conditions. Overall, Canyon Lake presents a moderately favorable location for solar energy generation, with summer excellence offset by winter limitations and manageable environmental challenges.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

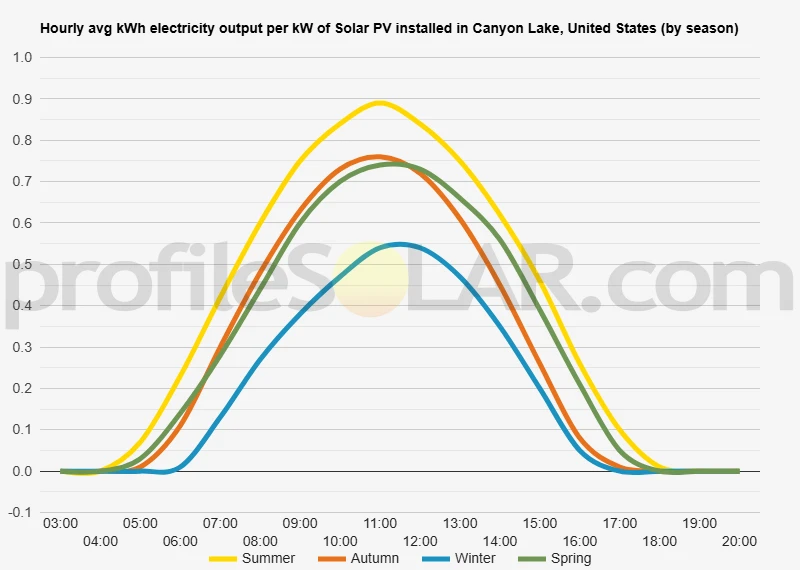

Solar output per kW of installed solar PV by season in Canyon Lake

Seasonal solar PV output for Latitude: 29.8752, Longitude: -98.2625 (Canyon Lake, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° South in Canyon Lake, United States

To maximize your solar PV system's energy output in Canyon Lake, United States (Lat/Long 29.8752, -98.2625) throughout the year, you should tilt your panels at an angle of 27° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Canyon Lake, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Canyon Lake, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	34° South in Autumn	45° South in Winter	23° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Canyon Lake, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Canyon Lake, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Canyon Lake, United States

Topographical Features Around Canyon Lake

Canyon Lake sits in the heart of the Texas Hill Country, approximately 30 miles northeast of San Antonio. The landscape surrounding this reservoir is characterized by rolling hills, limestone bluffs, and the distinctive terrain that defines the Edwards Plateau region. The area features moderate elevation changes, with hills rising 200 to 400 feet above the lake level, creating a scenic backdrop of undulating terrain covered in native oak, cedar, and mesquite vegetation.

The Guadalupe River carved through this limestone landscape over millennia, creating the canyon that gives the lake its name. The surrounding topography includes numerous ridgelines running roughly parallel to the river valley, with gentle to moderate slopes on most hillsides. Rocky outcroppings of limestone are common throughout the region, particularly on steeper slopes and ridgetops, while flatter areas often feature deeper soils suitable for various land uses.

The terrain becomes progressively flatter as one moves southeast toward San Antonio, transitioning from the Hill Country's characteristic limestone hills to the more level coastal plains. To the northwest, the hills become more pronounced as the Edwards Plateau continues its gradual rise toward the western reaches of Central Texas.

Optimal Areas for Large-Scale Solar Development

The most promising locations for large-scale solar photovoltaic installations lie on the broader ridgetops and gentle south-facing slopes surrounding Canyon Lake. These elevated positions typically offer excellent solar exposure while remaining relatively accessible for construction and maintenance activities. The limestone bedrock common in these areas provides stable foundations for solar mounting systems, though site preparation may require consideration of the underlying geology.

Particularly suitable areas can be found on the larger ranch properties that occupy much of the landscape southeast of the lake, where the terrain begins to flatten and merge with the coastal plains. These locations combine favorable topographical conditions with potentially easier access to electrical transmission infrastructure along major transportation corridors.

The broader valleys between ridgelines also present opportunities for solar development, especially where they open into wider expanses of relatively level ground. These areas often have the advantage of existing road access and may face fewer constraints related to scenic preservation that sometimes affect highly visible ridgetop locations in this popular recreational region.

Areas to the immediate north and west of Canyon Lake, while scenic, present more challenging topographical conditions due to steeper terrain and denser vegetation. The most practical large-scale solar sites would likely be found within a 10-15 mile radius of the lake, where the combination of suitable topography, land availability, and infrastructure access creates the most favorable development conditions.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
