Carl Junction, Missouri, located in the Northern Temperate Zone, presents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this location shows dramatic seasonal swings. Summer delivers the strongest performance at 6.91 kWh per day per installed kilowatt, making it an excellent time for solar generation. Spring follows as the second-best season with 5.16 kWh per day per kW, providing solid energy production as daylight hours increase. Autumn sees a notable decline to 4.17 kWh per day per kW, while winter represents the most challenging period with only 2.69 kWh per day per kW. This winter figure is less than 40% of summer production, highlighting the importance of planning for seasonal energy storage or grid-tied systems to maintain consistent power supply year-round.

Optimal Installation Configuration

For fixed panel installations at Carl Junction, the ideal tilt angle is 32 degrees facing south to maximize total year-round solar production. This angle is calculated using weighted solar elevation data throughout the year and accounts for Earth's elliptical orbit around the sun.

Local Environmental Factors

Several environmental and weather factors in southwestern Missouri can impact solar panel performance:

• Severe thunderstorms and hail during spring and summer months
• Ice storms and snow accumulation in winter
• High humidity levels that can reduce panel efficiency
• Tornado activity in the region
• Tree coverage and vegetation growth

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies prove effective. Installing panels with tempered glass and reinforced frames helps protect against hail damage, while ensuring proper drainage prevents ice buildup that could crack panels or mounting systems. Regular cleaning schedules become important in this humid climate where dust, pollen, and organic matter can accumulate more readily on panel surfaces. Trimming nearby vegetation and selecting installation sites away from large trees prevents shading issues and reduces debris accumulation. Ground-mounted systems should be elevated sufficiently to prevent snow coverage from blocking panels entirely during winter months. For roof-mounted systems, ensuring adequate ventilation behind panels helps combat efficiency losses from high summer temperatures and humidity. Installing lightning protection systems and surge protectors provides crucial protection during the frequent thunderstorms common to this region. Working with experienced local installers familiar with Missouri's building codes and weather patterns ensures proper structural mounting that can withstand high winds and severe weather events.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

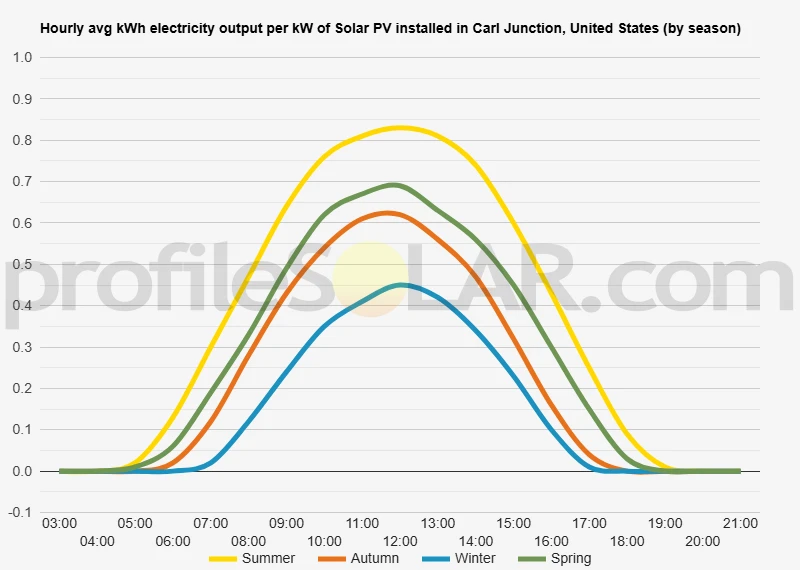

Solar output per kW of installed solar PV by season in Carl Junction

Seasonal solar PV output for Latitude: 37.1814, Longitude: -94.5594 (Carl Junction, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 32° South in Carl Junction, United States

To maximize your solar PV system's energy output in Carl Junction, United States (Lat/Long 37.1814, -94.5594) throughout the year, you should tilt your panels at an angle of 32° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Carl Junction, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Carl Junction, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 32° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
21° South in Summer	41° South in Autumn	52° South in Winter	30° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Carl Junction, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Carl Junction, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Carl Junction, United States

Topographical Features of Carl Junction

Carl Junction sits in the southwestern portion of Missouri, within the broader Ozark Plateau region. The area is characterized by gently rolling hills and relatively modest elevation changes, with the terrain generally sloping from higher elevations in the east toward lower areas in the west. The landscape around Carl Junction features a mix of agricultural fields, wooded areas, and suburban development, with elevations typically ranging from about 900 to 1,100 feet above sea level. The region's topography is influenced by the Springfield Plateau, a subdivision of the Ozark Plateau that extends across much of southwestern Missouri and into neighboring Kansas, Arkansas, and Oklahoma. This geological formation creates a landscape of broad, flat-topped ridges separated by shallow valleys and creek bottoms. The underlying bedrock consists primarily of limestone and chert, which has been weathered over millions of years to create the current undulating terrain.

Drainage and Water Features

Several small creeks and streams meander through the Carl Junction area, including Turkey Creek and various tributaries that eventually drain into larger river systems. These waterways have carved modest valleys into the landscape, creating areas of steeper slopes along creek banks and floodplains in the lower-lying areas. The drainage patterns generally follow the regional slope from east to west, with most water eventually making its way toward the Spring River system. The presence of these water features creates a patchwork of different microtopographies throughout the region. Creek bottoms tend to be relatively flat but may be subject to periodic flooding, while the adjacent slopes can vary from gentle to moderately steep depending on the local geology and erosion patterns.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Carl Junction would be the broad, relatively flat ridgetops and gentle south-facing slopes that characterize much of the Springfield Plateau. These elevated areas typically offer the best combination of minimal grading requirements, good drainage, and favorable solar exposure throughout the day. Agricultural fields on the flatter portions of the landscape present particularly attractive opportunities for solar development. Many of these areas have already been cleared of trees and leveled to some degree for farming operations, which would reduce site preparation costs. The gently rolling farmland to the north and west of Carl Junction offers extensive areas with minimal slope variations that would be well-suited to large solar arrays. The broader ridgetops throughout the region also present excellent opportunities, especially those with southern or southwestern orientations. These elevated areas typically have fewer obstructions from surrounding vegetation or structures and benefit from good air circulation, which can help maintain optimal operating temperatures for solar panels. Areas to avoid for large-scale solar development would include the steeper slopes adjacent to creek valleys, heavily forested areas that would require extensive clearing, and the lower-lying areas near waterways that might be subject to flooding or have poor drainage characteristics. The creek bottoms and associated floodplains, while relatively flat, would present challenges due to potential water management issues and environmental considerations.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
