Cedar Hill, Texas, located in the Northern Sub Tropics, offers a favorable environment for solar energy generation throughout the year. The city's geographical position at latitude 32.5892 and longitude -96.944 provides ample sunlight for photovoltaic (PV) systems to operate efficiently.

Seasonal Solar Performance

Solar energy production in Cedar Hill varies across seasons, with summer being the most productive period. During summer months, a 1 kW solar installation can generate an impressive 6.87 kWh per day. Spring follows as the second-best season, yielding 5.31 kWh daily. Autumn sees a slight decrease in output, producing 4.91 kWh per day. Winter, while less productive, still manages to generate 3.00 kWh daily per kW installed.

Optimal Installation Angle

To maximize year-round solar energy production in Cedar Hill, fixed solar panels should be installed at a tilt angle of 29 degrees facing south. This angle ensures optimal exposure to sunlight throughout the year, accounting for the Earth's elliptical orbit and the city's specific latitude.

Peak Generation Periods

The most ideal times for solar energy generation in Cedar Hill are during the summer months, particularly from June to August. These months offer long daylight hours and intense sunlight, resulting in peak energy production. Spring and early autumn also provide excellent conditions for solar power generation.

Environmental Considerations

While Cedar Hill's climate is generally conducive to solar energy production, there are a few environmental factors to consider:

• Occasional severe weather events, such as thunderstorms and hail, could potentially damage solar panels.
• Dust and pollen accumulation may slightly reduce panel efficiency, especially during dry periods.

To mitigate these issues, installing hail-resistant panels and implementing regular cleaning and maintenance routines can help ensure consistent energy production. Additionally, considering a tracking system instead of fixed panels could further optimize energy capture throughout the day and seasons.

Overall, Cedar Hill's location proves to be highly suitable for solar PV installations, with ample sunlight available year-round and only minor environmental challenges to overcome.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

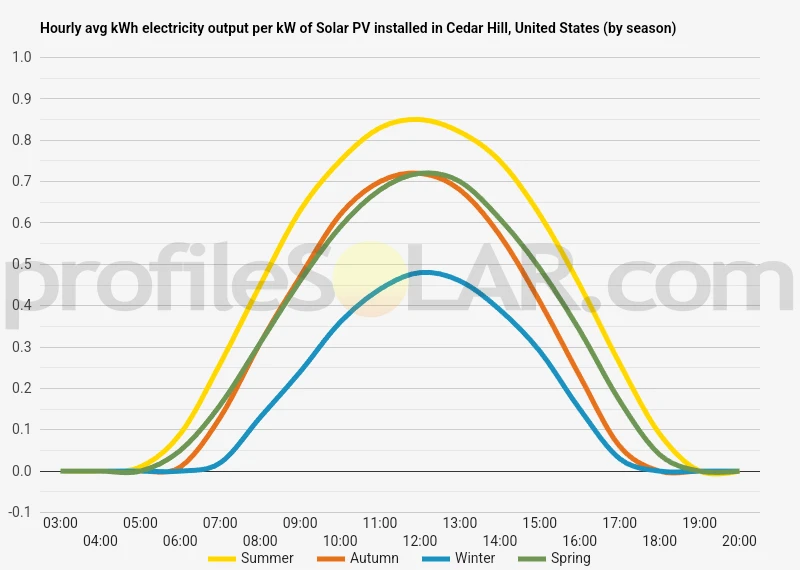

Solar output per kW of installed solar PV by season in Cedar Hill

Seasonal solar PV output for Latitude: 32.5892, Longitude: -96.944 (Cedar Hill, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in Cedar Hill, United States

To maximize your solar PV system's energy output in Cedar Hill, United States (Lat/Long 32.5892, -96.944) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cedar Hill, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cedar Hill, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
17° South in Summer	37° South in Autumn	48° South in Winter	26° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cedar Hill, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cedar Hill, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cedar Hill, United States

The topography around Cedar Hill, Texas, located at latitude 32.5892 and longitude -96.944, is characterized by gently rolling hills and prairies typical of the Blackland Prairie region. This area sits at the southwestern edge of the Dallas-Fort Worth metroplex and features a mix of urban development and natural landscapes. Cedar Hill itself is situated on higher ground compared to its surroundings, with elevations ranging from about 550 to 800 feet above sea level. The most prominent topographical feature in the area is the Cedar Hill State Park, which includes Joe Pool Lake to the west of the city. This man-made reservoir adds variety to the landscape, creating a mix of shoreline and aquatic environments. To the south and southwest of Cedar Hill, the terrain becomes more rugged as it transitions into the Texas Hill Country. This area is marked by limestone escarpments and wooded hillsides, offering a stark contrast to the flatter prairies to the north and east.

Suitability for Large-Scale Solar PV

When considering areas nearby that would be most suited for large-scale solar photovoltaic (PV) installations, several factors come into play. The ideal locations would have relatively flat or gently sloping terrain, good sun exposure, and minimal shading from trees or structures. The areas to the north and east of Cedar Hill, extending towards Dallas and its southern suburbs, offer the most promising potential for large-scale solar PV projects. These regions feature expansive, open prairies with fewer topographical obstacles. The flat to gently rolling landscape in this direction provides ample space for solar panel arrays and allows for optimal positioning to capture sunlight throughout the day. Additionally, the agricultural lands to the south and southeast of Cedar Hill could be suitable for solar development. These areas often have large, open fields that could be repurposed or dual-used for solar energy production while maintaining some agricultural activities. It's important to note that while the hilly areas to the southwest may receive good sun exposure, the more varied terrain could present challenges for large-scale installations. However, smaller-scale or specialized solar projects might still be feasible in these locations. Any potential solar development would need to consider local zoning regulations, environmental impact assessments, and grid connection capabilities. The proximity to the Dallas-Fort Worth metroplex could be advantageous for energy distribution, making the areas around Cedar Hill particularly attractive for solar PV investment.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
