Charles Town, West Virginia offers moderately favorable conditions for solar energy generation, though it experiences significant seasonal variation typical of locations in the Northern Temperate Zone.

Seasonal Solar Performance

The solar energy output at this location shows a clear seasonal pattern. Summer provides the highest production at 6.29 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best season with 5.48 kWh per day per kW, offering nearly comparable performance to summer months. Autumn sees a notable decline in solar production, dropping to 3.64 kWh per day per kW of installed capacity. Winter presents the most challenging conditions for solar generation, with output falling to just 2.24 kWh per day per kW - roughly one-third of summer production levels.

Optimal Panel Configuration

For maximum year-round energy production at Charles Town, fixed solar panels should be tilted at an angle of 34 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying position throughout the year and weighting for actual solar irradiance data.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Charles Town area can impact solar energy generation:

• Snow accumulation during winter months can block panels and reduce output
• Frequent cloud cover and overcast skies, particularly during autumn and winter
• Humidity and haze common in the Mid-Atlantic region can reduce solar irradiance
• Seasonal storms and weather fronts that bring extended periods of limited sunlight

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, consider these installation strategies:

• Install panels with adequate tilt to allow snow to slide off naturally
• Ensure easy access for snow removal and regular cleaning
• Use anti-reflective coatings on panels to capture more diffuse light during cloudy conditions
• Position panels away from trees or structures that could create shadows
• Consider a tracking system instead of fixed panels if budget allows, to capture more available sunlight during shorter winter days

Overall, Charles Town represents a reasonable location for solar energy generation, though property owners should expect substantially lower output during winter months and plan their energy storage or grid-tie systems accordingly.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

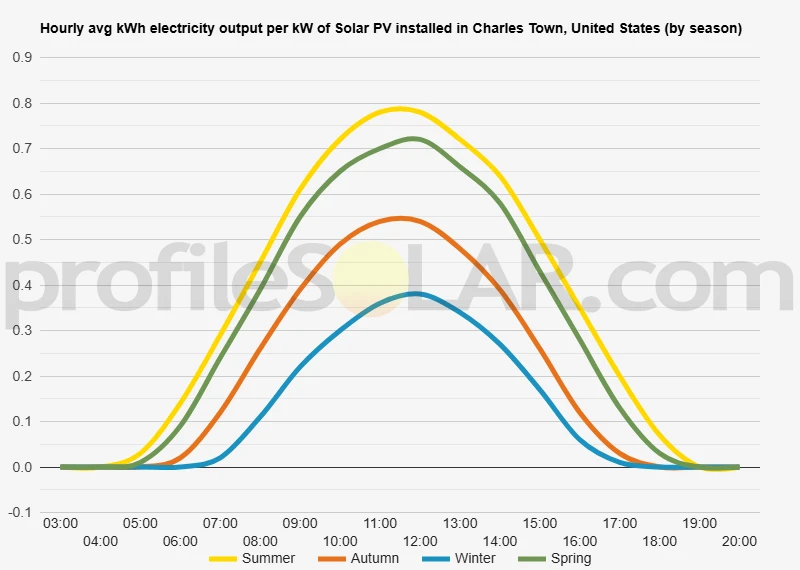

Solar output per kW of installed solar PV by season in Charles Town

Seasonal solar PV output for Latitude: 39.2825, Longitude: -77.8522 (Charles Town, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Charles Town, United States

To maximize your solar PV system's energy output in Charles Town, United States (Lat/Long 39.2825, -77.8522) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Charles Town, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Charles Town, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
23° South in Summer	44° South in Autumn	54° South in Winter	32° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Charles Town, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Charles Town, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Charles Town, United States

Topographical Features of Charles Town

Charles Town sits in the eastern panhandle of West Virginia, nestled within the Shenandoah Valley region where the topography is characterized by gently rolling hills and relatively moderate elevation changes. The area lies at approximately 500 feet above sea level, positioned between the Blue Ridge Mountains to the southeast and the Appalachian ridges to the northwest. This creates a valley setting with gradual slopes and undulating terrain that provides good drainage while avoiding the steep gradients found in more mountainous areas of West Virginia. The immediate landscape around Charles Town features a mix of agricultural fields, pastureland, and scattered woodlots typical of the Shenandoah Valley. The terrain slopes gently toward the Shenandoah River, which flows northeast through the region before joining the Potomac River. Small creeks and streams create minor valleys and drainage patterns throughout the area, but these generally represent modest topographical variations rather than significant obstacles to development.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations around Charles Town would be the open agricultural areas and former farmland that dot the valley floor and gentle hillsides. These areas typically offer the largest continuous parcels of relatively flat or gently sloping land with minimal tree cover. The south-facing slopes of the rolling hills present particularly attractive opportunities, as they provide natural orientation advantages for solar panel positioning while maintaining manageable grades for construction and maintenance access. Areas to the west and southwest of Charles Town proper contain extensive agricultural lands with good road access and proximity to existing electrical infrastructure. These locations benefit from the valley's natural clearing of vegetation and the established pattern of large field systems that could accommodate utility-scale solar arrays. The gentle topography in these areas minimizes grading requirements and reduces installation costs compared to steeper terrain. The eastern portions of the region, while closer to the Blue Ridge foothills, still contain suitable sites on the valley floor and lower slopes. However, as the terrain begins to rise toward the mountains, the increasing slope and forest cover make these areas less ideal for large installations. The flatter agricultural areas between Charles Town and the Shenandoah River offer some of the most promising sites, combining accessible terrain with good transportation links via existing county roads and state highways. Former industrial or commercial sites with adequate acreage could also serve as suitable locations, particularly if they already have electrical infrastructure in place. The relatively stable geology of the valley floor, composed primarily of limestone and sedimentary rock formations, provides good foundation conditions for solar mounting systems across most of the region.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
