Solar Energy Potential in Chatsworth, California

Chatsworth, California, located in the Northern Sub Tropics, offers a promising location for solar energy generation. With its geographical coordinates at 34.2548° N latitude and 118.588° W longitude, this area receives ample sunlight throughout the year, making it suitable for solar photovoltaic (PV) installations. The seasonal solar energy production in Chatsworth varies significantly, with summer being the most productive season. During summer months, solar panels can generate an impressive 8.42 kWh per day for each kilowatt of installed capacity. Spring follows closely, with a daily output of 7.54 kWh/kW. Autumn sees a moderate decrease in production, yielding 5.40 kWh/day/kW, while winter experiences the lowest output at 3.82 kWh/day/kW. For those considering fixed panel installations in Chatsworth, the ideal tilt angle to maximize year-round solar production is 30 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for seasonal variations in the sun's position.

Optimal Times for Solar Generation

The most favorable period for solar energy production in Chatsworth spans from late spring through early fall. During these months, longer daylight hours and higher sun angles contribute to increased solar panel efficiency. Summer solstice, typically around June 21st, marks the peak of solar potential, with the longest day of the year providing maximum sunlight exposure.

Environmental and Weather Considerations

While Chatsworth generally offers excellent conditions for solar energy production, there are a few factors to consider: 1. Wildfires: Southern California is prone to wildfires, which can temporarily reduce solar panel efficiency due to smoke and ash in the air. Regular panel cleaning and maintenance can mitigate this issue. 2. Santa Ana Winds: These strong, dry winds can carry dust and debris, potentially affecting panel performance. Installing panels at a slight angle and scheduling regular cleanings can help address this concern. 3. Occasional Fog: Chatsworth may experience morning fog, especially during spring and early summer. This can temporarily reduce solar output, but it typically clears by midday, allowing for optimal afternoon production. To maximize solar energy production in Chatsworth, consider implementing these preventative measures:

• Use high-quality, dust-resistant solar panels
• Install a reliable cleaning system or schedule regular manual cleanings
• Employ microinverters or power optimizers to minimize the impact of partial shading
• Consider a tracking system for even greater energy production, especially during peak sunlight hours

Overall, Chatsworth's climate and geographical location make it an excellent choice for solar PV installations, with the potential for high energy yields throughout most of the year.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

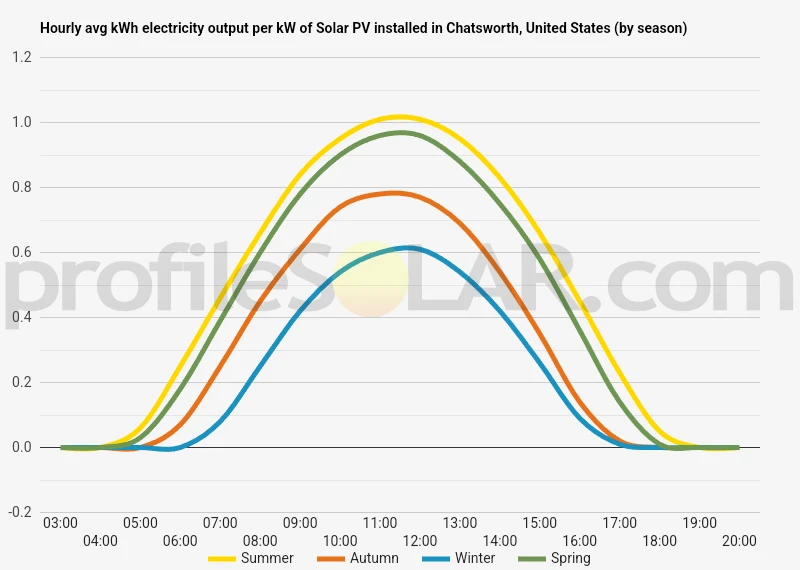

Solar output per kW of installed solar PV by season in Chatsworth

Seasonal solar PV output for Latitude: 34.2548, Longitude: -118.588 (Chatsworth, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 30° South in Chatsworth, United States

To maximize your solar PV system's energy output in Chatsworth, United States (Lat/Long 34.2548, -118.588) throughout the year, you should tilt your panels at an angle of 30° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chatsworth, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chatsworth, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
18° South in Summer	39° South in Autumn	49° South in Winter	27° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chatsworth, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chatsworth, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chatsworth, United States

The area around Chatsworth, located in the San Fernando Valley region of Los Angeles, California, features a diverse and interesting topography. Chatsworth itself sits on relatively flat terrain, but it's surrounded by more varied landscapes.

To the north and west of Chatsworth, you'll find the Santa Susana Mountains. These mountains rise quite dramatically from the valley floor, creating a striking backdrop for the community. The terrain in these mountains is rugged and steep, with numerous canyons and ridges. Some of the higher peaks in this range reach elevations of over 3,000 feet above sea level.

To the south of Chatsworth lies the Simi Hills, a lower and more gently rolling range of hills. These hills are characterized by rounded peaks and valleys, with a mix of grassy slopes and areas of chaparral vegetation. The Simi Hills separate the San Fernando Valley from the Simi Valley to the west.

Within Chatsworth itself, you'll find some smaller hills and elevated areas, particularly towards the western edge of the community. These provide some local variation in the landscape and offer nice views of the surrounding area.

Regarding areas suitable for large-scale solar PV (photovoltaic) installations, the most promising locations would likely be found in the flatter portions of the San Fernando Valley to the east and southeast of Chatsworth. These areas offer more expansive, open spaces that could accommodate large solar arrays. The relatively flat terrain would make construction and maintenance easier, and there would be fewer issues with shading from nearby hills or mountains.

However, it's important to note that much of the flat land in this region is already developed for residential, commercial, or industrial use. Any large-scale solar projects would need to be carefully planned and would likely require repurposing existing developed areas or finding suitable open spaces that aren't protected for environmental or recreational reasons.

The hillier areas to the north, west, and south of Chatsworth, while offering plenty of sun exposure, would be less ideal for large-scale solar installations due to the challenges posed by the uneven terrain. These areas might be better suited for smaller, distributed solar projects on individual buildings or properties.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
