Chickamauga, Georgia, located in the Northern Sub Tropics, offers moderately good conditions for year-round solar energy generation, though with significant seasonal variation that potential solar installers should carefully consider.

Seasonal Solar Performance

The solar energy output at this location varies considerably throughout the year. Summer provides the strongest performance at 6.21 kWh per day per kW of installed solar capacity, making it the peak season for solar generation. Spring follows as the second-best season with 5.84 kWh per day per kW, offering nearly comparable output to summer months. Autumn sees a notable decline to 4.35 kWh per day per kW, while winter presents the most challenging conditions with only 2.71 kWh per day per kW. This winter output represents less than half of the summer production, highlighting the importance of planning for seasonal energy storage or grid-tied systems to maintain consistent power supply year-round.

Optimal Installation Configuration

For fixed panel installations at Chickamauga, the ideal tilt angle is 30 degrees facing South to maximize total year-round solar production. This angle is calculated by analyzing daily solar elevation angles, determining optimal panel positioning, and weighting these calculations using solar irradiance data while accounting for Earth's elliptical orbit patterns.

Local Environmental Challenges

Several environmental and weather factors in the Chickamauga area can significantly impact solar production:

• High humidity and frequent summer thunderstorms typical of the Northern Sub Tropical climate
• Potential for severe weather including hail, strong winds, and occasional tornadoes
• Dense vegetation and tall trees common in Georgia that can create shading issues
• Atmospheric haze and air quality concerns that can reduce solar irradiance

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies prove effective:

• Install panels with reinforced mounting systems rated for high wind loads and impact resistance
• Conduct thorough site surveys to identify and remove potential shading obstacles
• Position panels with adequate spacing to prevent self-shading and allow proper air circulation
• Include regular cleaning schedules to remove pollen, dust, and debris common in the region
• Consider micro-inverters or power optimizers to minimize impact from partial shading

The location's moderate solar potential, combined with proper installation techniques and maintenance practices, can provide reliable renewable energy generation throughout most of the year, with summer and spring offering the most productive periods for solar investment returns.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

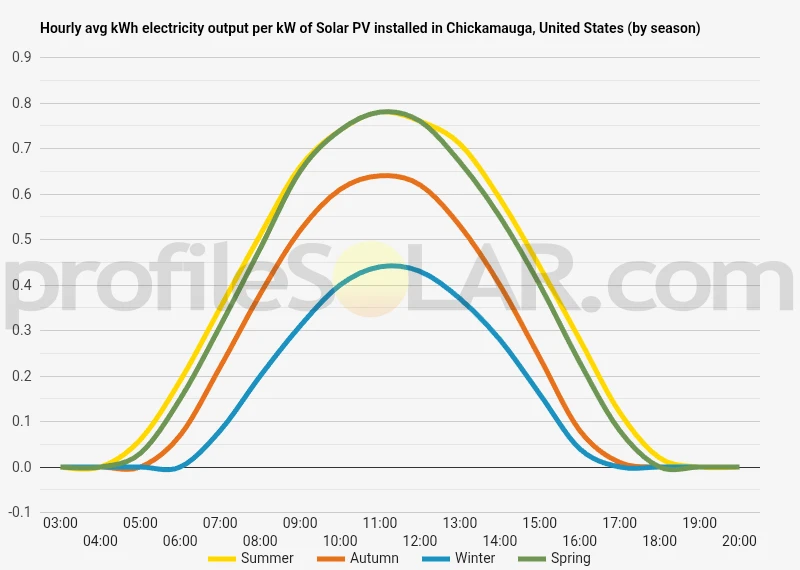

Solar output per kW of installed solar PV by season in Chickamauga

Seasonal solar PV output for Latitude: 34.8712, Longitude: -85.2908 (Chickamauga, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 30° South in Chickamauga, United States

To maximize your solar PV system's energy output in Chickamauga, United States (Lat/Long 34.8712, -85.2908) throughout the year, you should tilt your panels at an angle of 30° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Chickamauga, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Chickamauga, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
19° South in Summer	40° South in Autumn	50° South in Winter	27° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Chickamauga, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Chickamauga, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Chickamauga, United States

Regional Topography

The area around Chickamauga in northwestern Georgia sits within the Ridge and Valley physiographic province, characterized by a distinctive landscape of parallel ridges and valleys that run in a northeast-southwest direction. This region represents the transition zone between the Appalachian Mountains to the east and the Cumberland Plateau to the west. The Tennessee River flows through this valley system, creating the Chickamauga Creek watershed that gives the area its name. The topography consists of alternating limestone valleys and sandstone ridges, with elevations typically ranging from about 650 feet in the valley floors to over 1,000 feet on the ridge crests. Lookout Mountain dominates the southeastern horizon, rising dramatically from the surrounding valley floor. The landscape was shaped by millions of years of geological processes, resulting in the folded and faulted rock formations that create the characteristic ridge-and-valley pattern.

Valley Floor Characteristics

The valley floors throughout the Chickamauga region offer relatively flat to gently rolling terrain, making them the most topographically suitable areas for large-scale solar installations. These valley bottoms consist primarily of fertile agricultural land with minimal slope variations. The Tennessee River valley itself provides extensive flat areas, though much of this prime real estate is already developed for residential, commercial, or agricultural purposes. Chattanooga Creek valley and the broader Chickamauga Creek watershed contain numerous flat to gently sloping areas that could accommodate solar arrays. These valleys typically feature deep, well-drained soils over limestone bedrock, providing stable foundations for solar infrastructure. The relatively open nature of these valley systems also means fewer obstructions from surrounding terrain.

Ridge Systems and Slopes

The parallel ridges that define this landscape present more challenging terrain for solar development. These ridges typically feature steep slopes on their flanks, often exceeding grades that would be practical for large-scale solar installations. However, some ridge tops offer relatively flat areas that could potentially be developed, though access and transmission infrastructure would present additional challenges. Missionary Ridge, White Oak Mountain, and other prominent ridges in the area generally have slopes too steep for cost-effective solar development on their sides. The ridge systems also tend to be more heavily forested, which would require significant clearing and could face environmental restrictions.

Optimal Areas for Solar Development

The most promising locations for large-scale solar photovoltaic installations lie within the broader valley systems, particularly areas with south-facing gentle slopes that would optimize solar exposure. The Tennessee River valley offers the largest continuous flat areas, though development would need to consider flood plains and existing land uses. Agricultural areas in the Chickamauga Creek watershed present excellent opportunities, as these lands are already cleared and relatively flat. The valley floors between Chickamauga and Ringgold, as well as areas extending toward LaFayette, contain substantial acreage of gently rolling farmland that could be suitable for solar development. Areas near existing electrical transmission infrastructure would be particularly advantageous, as the region's valley orientation and relatively flat terrain in these corridors could minimize additional infrastructure costs. The proximity to Chattanooga's electrical grid and the presence of major transmission lines through the Tennessee River valley create favorable conditions for connecting large solar installations to the power grid.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
