Cleburne, Texas presents a reasonably good location for year-round solar energy generation, though with notable seasonal variations typical of its Northern Sub-Tropical climate at coordinates 32.3485°N, -97.3311°W.

Seasonal Solar Performance

The solar energy output at this location varies significantly throughout the year. Summer delivers the strongest performance at 7.00 kWh per day per kW of installed solar capacity, making it the prime season for solar generation. Spring follows as the second-best period with 5.40 kWh per day per kW, while autumn produces a moderate 4.98 kWh per day per kW. Winter represents the weakest period for solar production at just 3.23 kWh per day per kW of installed capacity. For maximum year-round energy production from a fixed solar panel installation at this Cleburne location, panels should be tilted at 29 degrees facing south. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to maximize total annual output.

Environmental and Weather Challenges

Several local factors in the Cleburne area can significantly impact solar energy production and require careful consideration during installation planning. Texas is notorious for severe weather events that pose substantial risks to solar installations. The region experiences frequent hailstorms, particularly during spring and early summer, which can cause serious damage to solar panels. Additionally, Cleburne sits within an area prone to tornadoes and severe thunderstorms with high winds that can damage or destroy solar arrays. The hot Texas summers, while providing excellent solar irradiance, can actually reduce panel efficiency due to excessive heat. Solar panels typically lose efficiency as temperatures rise above their optimal operating range, which can offset some of the benefits of the strong summer sun. Dust and debris accumulation presents another challenge in this semi-arid climate. Extended dry periods can lead to significant dust buildup on panels, reducing their ability to capture sunlight effectively.

Preventative Installation Measures

To maximize solar energy production despite these challenges, several protective measures should be implemented during installation:

• Install impact-resistant tempered glass panels or protective screens designed to withstand hail up to specific sizes
• Use robust mounting systems engineered to handle high wind loads typical of severe Texas weather
• Ensure proper grounding and surge protection systems to guard against lightning strikes during thunderstorms
• Design adequate ventilation space beneath panels to promote cooling and maintain efficiency during hot summers
• Plan for regular cleaning schedules or install automated cleaning systems to combat dust accumulation

Proper installation techniques should include secure anchoring systems that exceed local building codes for wind resistance. Consider installing panels with higher temperature coefficients that maintain better performance in extreme heat. Strategic positioning away from trees or structures that might shed debris during storms is also crucial. Regular maintenance becomes particularly important in this climate, with periodic inspections recommended after severe weather events and seasonal cleaning to remove accumulated dust and debris that could significantly impact energy production throughout the year.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

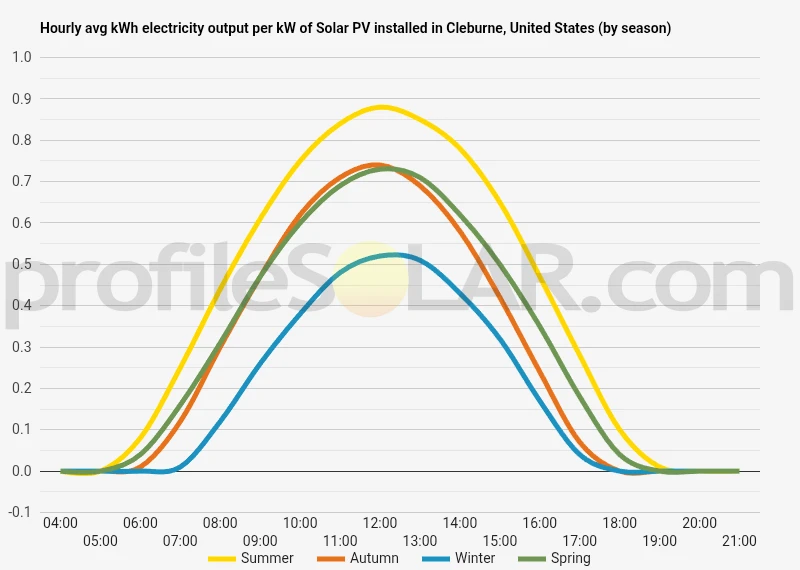

Solar output per kW of installed solar PV by season in Cleburne

Seasonal solar PV output for Latitude: 32.3485, Longitude: -97.3311 (Cleburne, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 29° South in Cleburne, United States

To maximize your solar PV system's energy output in Cleburne, United States (Lat/Long 32.3485, -97.3311) throughout the year, you should tilt your panels at an angle of 29° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Cleburne, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Cleburne, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 29° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
16° South in Summer	37° South in Autumn	48° South in Winter	26° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Cleburne, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Cleburne, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Cleburne, United States

Topography Around Cleburne, Texas

The landscape surrounding Cleburne, Texas presents a gently rolling terrain characteristic of the transition zone between the North Central Plains and the Western Cross Timbers regions. This area sits at an elevation of approximately 800 feet above sea level, with the topography featuring modest hills and valleys that create a pleasantly undulating countryside. The terrain gradually rises and falls across the region, with elevation changes typically ranging from 50 to 150 feet between valleys and hilltops. To the west and southwest of Cleburne, the land becomes increasingly hilly as it approaches the Eastern Cross Timbers, where rocky outcrops and steeper slopes become more common. These areas feature limestone formations and sandstone ridges that create more dramatic elevation changes. Moving eastward from the city, the landscape flattens considerably into the Blackland Prairie region, where the terrain becomes much more level and suitable for large-scale development. The area is drained by several waterways, including the Nolan River and various tributaries of the Trinity River system. These waterways have carved gentle valleys through the landscape over thousands of years, creating natural drainage patterns that influence the local topography. The presence of these water features also contributes to slightly more varied terrain along their courses.

Optimal Areas for Large-Scale Solar Development

The most promising locations for extensive solar photovoltaic installations lie primarily to the east and southeast of Cleburne, where the terrain transitions into the flatter Blackland Prairie. These areas offer the ideal combination of relatively level ground and minimal topographical obstacles that could create shading issues for solar arrays. The gentler slopes in this direction require less grading and site preparation, making development more cost-effective. South of Cleburne, particularly in Johnson County, large tracts of agricultural land present excellent opportunities for solar development. The terrain in this direction maintains the gentle rolling character but with longer, more gradual slopes that can accommodate extensive solar installations without significant earthwork requirements. These areas also benefit from good accessibility via existing farm roads and proximity to electrical transmission infrastructure. The northern areas around Cleburne also show promise for solar development, particularly where the land has been previously used for farming or ranching. While slightly more rolling than areas to the east, much of this terrain remains suitable for large-scale installations with proper design considerations. The key advantage of northern locations is the availability of large, contiguous parcels of land that have not been heavily developed. Areas to the west and southwest present more challenges due to the increasingly hilly terrain and rocky outcrops associated with the Cross Timbers region. While not impossible to develop, these locations would require more extensive site preparation and careful array positioning to minimize shading from natural topographical features. The limestone and sandstone formations in these areas could also complicate foundation installation for solar mounting systems.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
