Crawfordsville, Indiana shows moderate potential for year-round solar energy generation, though with significant seasonal variations that are typical for locations in the Northern Temperate Zone.

Seasonal Solar Performance

The solar energy output at this location varies considerably throughout the year. Summer provides the strongest performance at 6.35 kWh per day per kW of installed solar capacity, making it the ideal season for solar generation. Spring follows as the second-best period with 5.45 kWh per day per kW, offering excellent energy production as daylight hours increase and weather conditions improve. Autumn sees a notable decline to 3.51 kWh per day per kW as the sun angle decreases and weather patterns shift. Winter presents the most challenging conditions with only 2.27 kWh per day per kW, representing less than half of the summer output. For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 34 degrees facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's changing position throughout the year and weighting for the varying solar energy potential across all seasons.

Environmental and Weather Challenges

Several local factors in Crawfordsville can impact solar energy production and should be considered during installation planning. Snow accumulation during Indiana winters can significantly reduce solar panel efficiency by blocking sunlight from reaching the photovoltaic cells. Ice formation presents similar challenges and can persist longer than snow cover, particularly during freeze-thaw cycles common in the region. The area experiences frequent cloud cover and overcast conditions, especially during autumn and winter months, which directly reduces solar irradiance. Midwest weather patterns can bring extended periods of cloudy skies that substantially decrease energy output. Severe weather events including thunderstorms, hail, and high winds occur regularly in Indiana and can potentially damage solar installations or reduce their effectiveness through debris accumulation.

Preventative Installation Measures

Several strategies can help maximize solar energy production despite these environmental challenges:

• Install panels at the optimal 34-degree tilt angle to promote natural snow and debris shedding
• Choose high-quality mounting systems designed to withstand high winds and severe weather conditions
• Select solar panels with anti-reflective coatings and improved low-light performance for cloudy conditions
• Ensure adequate spacing between panel rows to prevent shading and allow for maintenance access
• Install monitoring systems to quickly identify when panels need cleaning or snow removal

Regular maintenance becomes particularly important in this climate. Keeping panels clean and free from debris, leaves, and snow accumulation will help maintain optimal energy production throughout the year. The steeper 34-degree installation angle naturally assists with this maintenance by allowing gravity to help clear most accumulations. Despite the seasonal variations and weather challenges, Crawfordsville's location still provides reasonable solar energy potential, particularly during the warmer months when energy demands for cooling are typically highest.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

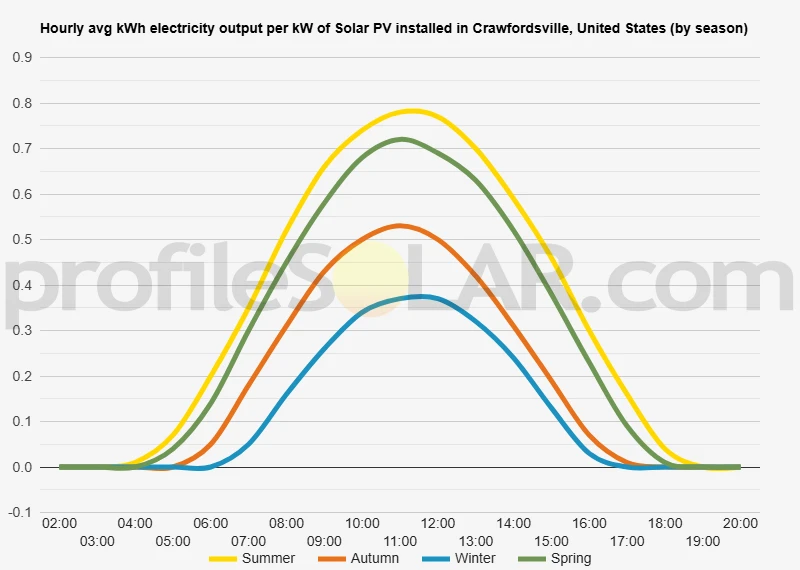

Solar output per kW of installed solar PV by season in Crawfordsville

Seasonal solar PV output for Latitude: 40.0346, Longitude: -86.907 (Crawfordsville, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Crawfordsville, United States

To maximize your solar PV system's energy output in Crawfordsville, United States (Lat/Long 40.0346, -86.907) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Crawfordsville, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Crawfordsville, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	44° South in Autumn	54° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Crawfordsville, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Crawfordsville, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Crawfordsville, United States

Topographical Features Around Crawfordsville

Crawfordsville sits in west-central Indiana within Montgomery County, positioned in a region characterized by gently rolling terrain typical of the Midwest agricultural landscape. The area lies within the Tipton Till Plain, a relatively flat to gently undulating glacial plain formed by ancient ice sheet deposits. Elevations in the immediate vicinity range from approximately 700 to 850 feet above sea level, with the city itself resting at around 760 feet elevation.

The topography consists primarily of low, broad hills separated by shallow valleys and drainage ways. Sugar Creek flows through the southern portion of the area, creating modest valley features that provide the most significant topographical relief in the region. The terrain slopes very gradually, with most areas having grades of less than 5 percent, making this an exceptionally manageable landscape for development and agricultural use.

The underlying geology consists of glacial till - a mixture of clay, silt, sand, and gravel deposited by retreating glaciers thousands of years ago. This has created well-drained to moderately well-drained soils across much of the area, with some poorly drained soils in the lower-lying areas near waterways. The relatively uniform soil composition and gentle slopes have made this region ideal for row crop agriculture, which dominates the current land use patterns.

Optimal Areas for Large-Scale Solar Development

The topographical characteristics around Crawfordsville present excellent conditions for large-scale solar photovoltaic installations. The gently rolling terrain with minimal slope variations eliminates many of the challenges associated with solar development in more mountainous or heavily dissected landscapes. The broad, open agricultural fields that dominate the area provide extensive tracts of relatively flat land with minimal shading concerns.

The most suitable areas for solar development would be the elevated plateau areas between the creek valleys, particularly those with south-facing gentle slopes. These locations offer optimal solar exposure while maintaining the stable, well-drained soil conditions necessary for supporting solar infrastructure. The areas north and northwest of Crawfordsville appear particularly promising, as they feature large contiguous agricultural parcels with minimal topographical constraints.

The gentle terrain means that solar arrays can be installed with minimal grading or earthwork, significantly reducing development costs. The stable glacial till soils provide excellent foundation conditions for both ground-mounted systems and tracking installations. Additionally, the low relief means that wind exposure is relatively uniform across the area, reducing concerns about wind loading variations that might affect solar panel installations.

Areas immediately adjacent to Sugar Creek and other waterways would be less suitable due to potential flooding concerns and the presence of riparian vegetation that could create shading issues. However, these represent a relatively small portion of the overall landscape, leaving vast areas of suitable terrain for solar development across the broader Crawfordsville region.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
