Crystal City, Texas, located in the Northern Sub Tropics at coordinates 28.6885, -99.8278, presents a reasonably good location for year-round solar energy generation, though with notable seasonal variations in output.

Seasonal Solar Performance

The location shows strong summer performance with solar panels producing 7.20 kWh per day per kW of installed capacity during the summer months. Spring also delivers solid results at 5.89 kWh/day per kW, making these the ideal times of year for solar energy generation at this site. Autumn production drops to 5.26 kWh/day per kW, which remains acceptable for most applications. Winter presents the most challenging period with output falling to 3.70 kWh/day per kW, representing roughly half the summer production levels. For fixed panel installations at this Crystal City location, the optimal tilt angle is 25 degrees facing south to maximize total year-round solar energy production.

Environmental and Weather Challenges

Several local factors can significantly impact solar production in this South Texas region:

• Dust and debris accumulation from agricultural activities and dry conditions
• Hail storms during spring and early summer months
• High winds from severe thunderstorms and occasional tropical weather systems
• Extreme heat that can reduce panel efficiency during peak summer months

Preventative Measures for Optimal Performance

Regular maintenance schedules should include frequent panel cleaning, especially during dry periods when dust accumulation is heaviest. Installing hail-resistant tempered glass panels and robust mounting systems can protect against storm damage. Proper ventilation spacing beneath panels helps combat efficiency losses from extreme heat. Wind-resistant mounting hardware rated for local wind speeds ensures system durability during severe weather events. Monitoring systems can alert owners to performance drops that may indicate cleaning needs or weather-related damage, allowing for prompt maintenance to restore optimal energy production.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

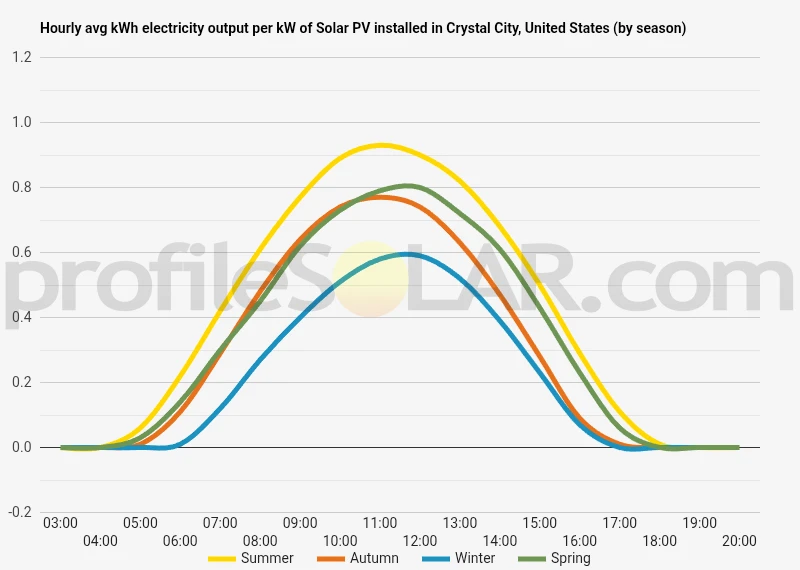

Solar output per kW of installed solar PV by season in Crystal City

Seasonal solar PV output for Latitude: 28.6885, Longitude: -99.8278 (Crystal City, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 25° South in Crystal City, United States

To maximize your solar PV system's energy output in Crystal City, United States (Lat/Long 28.6885, -99.8278) throughout the year, you should tilt your panels at an angle of 25° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Crystal City, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Crystal City, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 25° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° South in Summer	33° South in Autumn	44° South in Winter	22° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Crystal City, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Crystal City, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Crystal City, United States

Topographical Features of Crystal City

Crystal City sits in the heart of South Texas, positioned within the gently rolling landscape characteristic of the South Texas Plains region. The terrain around this area consists primarily of low hills and shallow valleys, with elevations typically ranging from 500 to 700 feet above sea level. The topography is generally described as undulating prairie land, featuring gradual slopes and broad, open spaces that extend for miles in every direction. The landscape is dominated by mesquite grasslands and scattered brush country, with the Nueces River system providing the primary drainage for the region. Small creeks and seasonal waterways create modest valleys that cut through the otherwise relatively flat terrain. These waterways have carved gentle depressions in the landscape over thousands of years, but the overall relief remains quite modest compared to other parts of Texas.

Geological Foundation and Surface Conditions

The underlying geology consists primarily of sedimentary rocks from the Cretaceous period, including limestone, sandstone, and shale formations. These rock layers create a stable foundation beneath a covering of clay, sandy loam, and caliche soils. The surface is generally well-drained, though some areas contain harder caliche layers that can affect both vegetation growth and construction activities. Rock outcroppings are relatively uncommon in the immediate vicinity, though limestone formations do appear occasionally throughout the broader region. The soil composition varies from sandy to clay-rich depending on proximity to waterways and historical depositional patterns. Much of the area has been used for ranching and agriculture, resulting in cleared or semi-cleared land with established access routes.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the elevated plateaus and gentle ridgelines that extend north and east of Crystal City. These areas offer several advantages including excellent drainage, minimal shading from topographical features, and stable ground conditions for mounting systems. The broad, open spaces between the scattered creek valleys provide extensive flat to gently sloping terrain ideal for large solar arrays. Areas with southern and southwestern exposures on the higher elevations would be particularly well-suited, as they combine optimal sun angles with natural wind flow patterns that help maintain equipment temperatures. The relatively sparse vegetation in these locations reduces clearing costs while the existing ranch road network provides good access for construction and maintenance activities. The flatter expanses located several miles east and northeast of the city center present excellent opportunities for utility-scale development. These areas feature minimal topographical obstacles, good soil stability, and sufficient distance from residential areas to minimize visual impact. The gentle terrain allows for efficient layout of solar panels while maintaining proper spacing and access corridors throughout large installations.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
