Del Rio, Texas, located in the Northern Sub Tropics at coordinates 29.4102, -100.8932, presents a reasonably good location for year-round solar energy generation, though with notable seasonal variations in output.

Seasonal Solar Performance

The solar energy production at Del Rio shows significant seasonal fluctuation. Summer delivers the highest output at 7.12 kWh per day per kW of installed solar capacity, making it the peak production season. Spring follows as the second-best period with 5.81 kWh per day per kW, while autumn produces 5.21 kWh per day per kW. Winter represents the lowest production period at 3.75 kWh per day per kW of installed capacity. The ideal months for solar generation are clearly the summer months, when the sun is highest in the sky and daylight periods are longest. Spring also offers excellent conditions for solar energy production. The winter months present the greatest challenge for consistent energy generation, with production dropping to approximately half of summer levels.

Optimal Panel Configuration

For fixed panel installations at this Del Rio location, the ideal angle to tilt solar panels to maximize total year-round production is 26 degrees facing South. This angle is calculated by analyzing daily solar elevation angles at this latitude, determining optimal panel tilt for each day, and weighting these angles by daily solar potential using NASA solar irradiance data to achieve the best annual average output.

Environmental and Weather Challenges

Several significant factors in the Del Rio area can impede solar energy production and require careful consideration during installation:

• Dust and Sand Accumulation: The semi-arid climate and proximity to desert regions means panels frequently collect dust, dirt, and sand particles that reduce efficiency
• Extreme Heat: High summer temperatures can actually decrease panel efficiency, as solar panels lose effectiveness when they become too hot
• Hailstorms: Texas weather patterns can produce severe thunderstorms with large hail that may damage solar panels
• High Winds: Strong winds associated with thunderstorms and weather fronts can stress mounting systems and potentially damage installations

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several preventative measures should be implemented: Regular cleaning schedules are essential to remove dust and debris accumulation. Installing panels with anti-soiling coatings can help reduce how much dirt sticks to the surface. Proper ventilation spacing between panels and mounting surfaces allows better air circulation to keep panels cooler during extreme heat periods. Choosing panels with higher temperature tolerance ratings helps maintain efficiency during hot Texas summers. Installing robust mounting systems designed to withstand high wind loads protects against storm damage. Hail-resistant panels with tempered glass and appropriate impact ratings provide protection against hail damage. Monitoring systems that track performance can quickly identify when cleaning or maintenance is needed. Strategic placement away from dust sources like unpaved roads or construction areas can also minimize cleaning requirements and maintain optimal energy production throughout the year.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

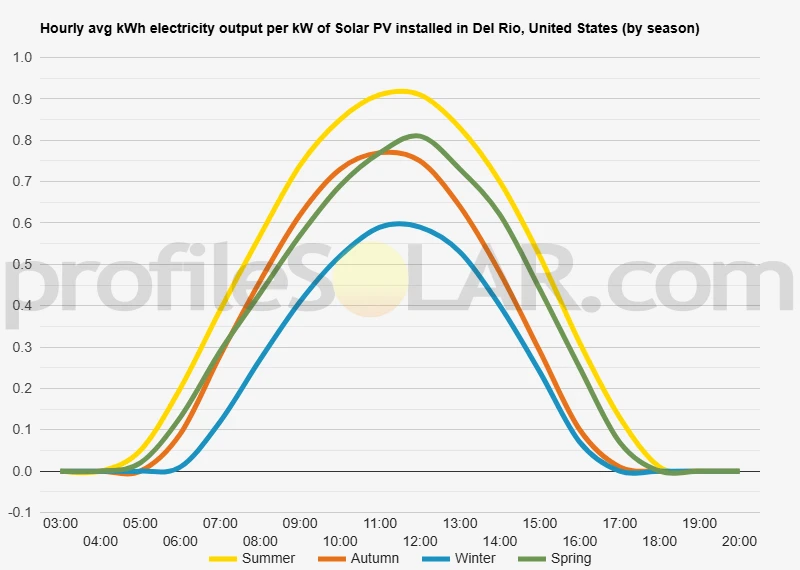

Solar output per kW of installed solar PV by season in Del Rio

Seasonal solar PV output for Latitude: 29.4102, Longitude: -100.8932 (Del Rio, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 26° South in Del Rio, United States

To maximize your solar PV system's energy output in Del Rio, United States (Lat/Long 29.4102, -100.8932) throughout the year, you should tilt your panels at an angle of 26° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Del Rio, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Del Rio, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 26° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
13° South in Summer	34° South in Autumn	45° South in Winter	23° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Del Rio, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Del Rio, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Del Rio, United States

Topographical Features of Del Rio

Del Rio sits in Val Verde County, Texas, positioned along the Rio Grande River which forms the natural border between the United States and Mexico. The city is located within the Chihuahuan Desert region, characterized by relatively flat to gently rolling terrain with elevations ranging from approximately 900 to 1,200 feet above sea level. The landscape features typical desert topography with scattered limestone hills, mesas, and broad valleys carved by ancient water flows. The Rio Grande creates a significant geographical feature running east to west through the area, with Del Rio positioned on the northern bank. The river valley provides some of the lowest elevations in the region, while the surrounding terrain gradually rises into higher plateaus and ridgelines. The Edwards Plateau extends northward from the city, creating a series of limestone escarpments and flat-topped hills that characterize much of this part of Texas.

Soil and Geological Conditions

The underlying geology consists primarily of limestone bedrock from the Cretaceous period, overlaid with thin soils typical of arid regions. These soils are generally well-draining due to the limestone substrate, which creates natural drainage patterns through underground caverns and fissures. The surface terrain includes areas of exposed rock, particularly on hillsides and ridges, mixed with desert vegetation including mesquite, prickly pear cactus, and various drought-resistant shrubs. Erosion patterns have created numerous arroyos and dry creek beds that channel occasional rainfall toward the Rio Grande. These drainage features create a network of shallow valleys and ridges across the landscape, though the overall topography remains relatively gentle compared to more mountainous regions of Texas.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for extensive solar photovoltaic installations would be the broad, flat plateaus and mesa tops that extend north and northwest of Del Rio. These elevated areas offer several advantages including minimal slope gradients, reduced flood risk, and consistent exposure to prevailing weather patterns. The limestone bedrock provides stable foundations for mounting systems, while the sparse vegetation requires minimal clearing. Particularly promising areas include the expansive flatlands between Del Rio and the communities of Comstock and Langtry to the northwest. These regions feature large contiguous parcels of relatively level terrain with minimal topographical obstacles. The higher elevations also provide natural drainage away from installation sites, reducing concerns about water accumulation during the region's infrequent but sometimes intense rainfall events. The areas immediately south of Del Rio, closer to the Rio Grande, tend to be less suitable due to the river's floodplain and associated regulatory restrictions. Similarly, the steeper limestone hills and escarpments, while offering good exposure, present challenges for large-scale development due to slope limitations and increased construction complexity.

Infrastructure and Access Considerations

The topography around Del Rio generally supports good road access across much of the suitable terrain. US Highway 90 and US Highway 277 provide major transportation corridors, while numerous ranch roads extend into the plateau areas. The relatively flat terrain facilitates the construction of access roads and transmission infrastructure necessary for large solar installations. The landscape's openness, with minimal tree cover and low-profile vegetation, reduces shading concerns and simplifies site preparation. The stable geological conditions and well-draining soils also minimize foundation challenges that might be encountered in areas with expansive clays or unstable substrates common in other parts of Texas.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
