Solar PV Analysis of Diamond Bar, United States
Diamond Bar, California, situated in the Northern Sub-Tropics, offers a promising location for solar PV energy generation year-round. With its geographical coordinates at 34.0085 latitude and -117.8136 longitude, this area experiences varying levels of solar potential across different seasons.
Seasonal Solar Performance
Summer stands out as the peak season for solar energy production in Diamond Bar, with an impressive average of 8.37 kWh per day for each kilowatt of installed solar capacity. Spring follows closely behind, generating 7.72 kWh/day. Autumn sees a moderate decrease to 5.54 kWh/day, while winter experiences the lowest output at 3.97 kWh/day per kW installed.
The substantial difference between summer and winter production highlights the region's seasonal variations. However, even during the least productive winter months, Diamond Bar still maintains a respectable solar output, making it a viable location for year-round solar energy generation.
Optimal Panel Installation
For those considering a fixed panel installation in Diamond Bar, the ideal tilt angle to maximize year-round solar production is 30 degrees facing South. This angle has been calculated to optimize energy capture across all seasons, taking into account the Earth's elliptical orbit and the location's specific solar elevation angles.
Environmental Considerations
While Diamond Bar generally offers favorable conditions for solar energy production, there are a few environmental factors to consider:
- Smog and air pollution from the nearby Los Angeles metropolitan area can occasionally reduce solar irradiance.
- Infrequent wildfires in the region may temporarily decrease air quality and solar panel efficiency.
To mitigate these issues, regular panel cleaning and the use of anti-soiling coatings can help maintain optimal performance. Additionally, installing a monitoring system can alert owners to any unexpected drops in efficiency, allowing for prompt maintenance.
Overall, Diamond Bar's climate and geographical location make it an excellent choice for solar PV installations, with strong potential for energy generation throughout the year, particularly from spring through autumn.
Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.
So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.
Link: Solar PV potential in the United States by location

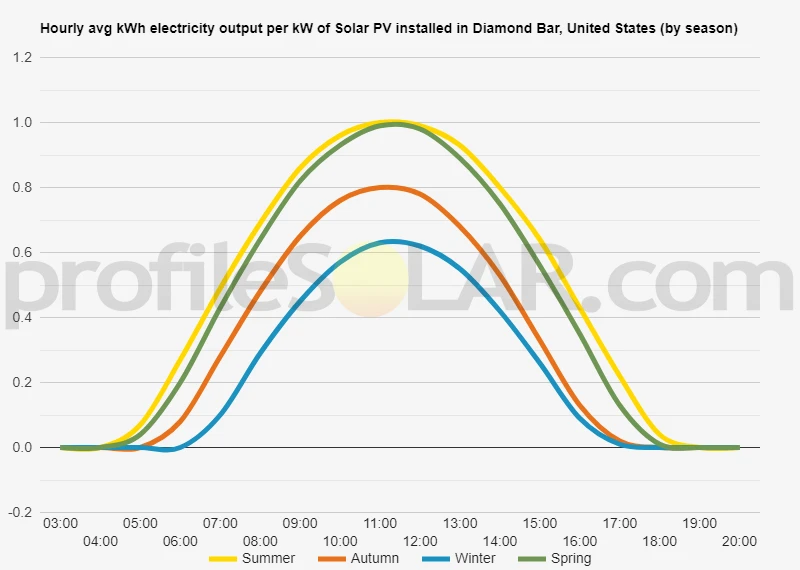

Solar output per kW of installed solar PV by season in Diamond Bar
Seasonal solar PV output for Latitude: 34.0085, Longitude: -117.8136 (Diamond Bar, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:
Ideally tilt fixed solar panels 30° South in Diamond Bar, United States
To maximize your solar PV system's energy output in Diamond Bar, United States (Lat/Long 34.0085, -117.8136) throughout the year, you should tilt your panels at an angle of 30° South for fixed panel installations.
As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.
We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.
Seasonally adjusted solar panel tilt angles for Diamond Bar, United States
If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Diamond Bar, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° South tilt angle throughout the year.
| Overall Best Summer Angle | Overall Best Autumn Angle | Overall Best Winter Angle | Overall Best Spring Angle |
|---|---|---|---|
| 18° South in Summer | 39° South in Autumn | 49° South in Winter | 27° South in Spring |
Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.
This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.
Calculate solar panel row spacing in Diamond Bar, United States
We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Diamond Bar, United States.
Our calculation method
- Solar Position:
We determine the Sun's position on the Winter solstice using the location's latitude and solar declination. - Shadow Projection:
We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle. - Minimum Spacing:
We add the shadow length to the horizontal space occupied by tilted panels.
This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.
Topography for solar PV around Diamond Bar, United States
The topography around Diamond Bar, United States, is characterized by a mix of rolling hills, valleys, and some steeper terrain. Diamond Bar itself is situated in a relatively flat area nestled among these hills, which are part of the eastern edge of the San Gabriel Valley. The city is surrounded by more elevated areas, with the Chino Hills to the southeast and the San Jose Hills to the north.
The landscape in this region is typical of Southern California's inland areas, featuring a blend of developed urban and suburban spaces interspersed with patches of natural vegetation. The terrain gradually becomes more rugged and mountainous as you move away from the city center, especially towards the north and east.
For large-scale solar PV installations, the most suitable areas nearby would likely be found in the flatter, more open spaces to the east and southeast of Diamond Bar. The Chino Valley, which extends into San Bernardino County, offers expansive, relatively flat terrain that could be ideal for solar farms. This area receives ample sunlight throughout the year and has fewer obstructions from hills or dense urban development.
Another potential location for solar PV projects might be found in parts of the Pomona Valley, which lies to the north and northeast of Diamond Bar. While some of this area is urbanized, there are still open spaces and agricultural lands that could be suitable for solar installations.
It's important to note that while the immediate vicinity of Diamond Bar may have limited space for large-scale solar projects due to its suburban nature and hilly terrain, the broader region within a 20-30 mile radius offers more opportunities. The key factors for ideal solar PV locations include flat or gently sloping land, minimal shading from surrounding topography, and good access to existing electrical infrastructure.
United States solar PV Stats as a country
United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]
Are there incentives for businesses to install solar in United States?
Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.
Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
