Dunellen, New Jersey represents a moderately favorable location for year-round solar energy generation, though with significant seasonal variations that are typical of the Northern Temperate Zone climate.

Seasonal Solar Performance

The solar energy output at this location shows substantial fluctuation throughout the year. Summer provides the peak generation period with 6.02 kWh per day per kW of installed capacity, making it the most productive season. Spring follows as the second-best performing season at 5.44 kWh per day per kW, offering nearly comparable output to summer months. Autumn sees a notable decline in solar production, dropping to 3.48 kWh per day per kW as daylight hours shorten and sun angles become less favorable. Winter presents the most challenging conditions for solar generation, with output falling to just 2.14 kWh per day per kW of installed capacity.

Optimal Installation Configuration

For maximum year-round energy production at Dunellen, fixed solar panels should be installed at a 35-degree tilt angle facing south. This angle has been calculated to optimize total annual solar output by accounting for the sun's varying position throughout the year and weighting the angles based on actual solar irradiance data.

Local Factors Affecting Solar Production

Several environmental and weather factors in the Dunellen area can impact solar energy generation:

• Snow accumulation: Winter snow can completely block solar panels, eliminating energy production until removed
• Deciduous tree shading: Large trees near installations can cast shadows that significantly reduce panel efficiency
• Air pollution and haze: The proximity to major metropolitan areas can create atmospheric conditions that reduce solar irradiance
• Frequent cloud cover: The regional climate includes periods of extended cloudiness that can substantially decrease solar output

Preventative Measures for Enhanced Production

Several strategies can help maximize solar energy production despite these local challenges:

• Strategic panel placement: Install panels away from potential shading sources, particularly on south-facing roof sections with minimal obstruction
• Steeper tilt angles: Consider slightly steeper angles than the optimal 35 degrees to promote natural snow shedding during winter months
• Regular maintenance scheduling: Implement routine cleaning protocols to remove accumulated dust, pollen, and debris that can reduce panel efficiency
• Tree management: Trim or remove vegetation that could cast shadows on panels, especially during peak sun hours
• Quality equipment selection: Choose solar panels and inverters designed to perform well in variable light conditions common to the region

The winter months present the greatest challenge for solar production in Dunellen, making it important to size solar installations appropriately to account for this seasonal reduction. Despite these limitations, the strong summer and spring performance helps balance the annual energy production, making solar a viable renewable energy option for this New Jersey location.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

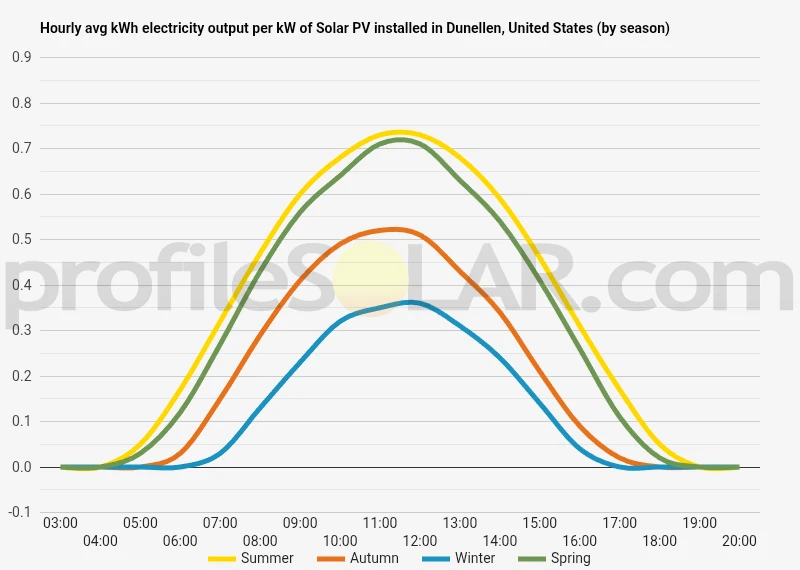

Solar output per kW of installed solar PV by season in Dunellen

Seasonal solar PV output for Latitude: 40.5911, Longitude: -74.4642 (Dunellen, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 35° South in Dunellen, United States

To maximize your solar PV system's energy output in Dunellen, United States (Lat/Long 40.5911, -74.4642) throughout the year, you should tilt your panels at an angle of 35° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Dunellen, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Dunellen, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 35° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	45° South in Autumn	56° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Dunellen, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Dunellen, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Dunellen, United States

Topographical Features Around Dunellen

The topography surrounding Dunellen, New Jersey is characterized by gently rolling hills and relatively modest elevation changes typical of the Piedmont region of central New Jersey. The area sits within the Raritan Valley, which creates a landscape of low hills interspersed with flat to gently sloping terrain. Elevations in the immediate vicinity generally range from approximately 50 to 200 feet above sea level, with the highest points found on the ridges that define the valley boundaries. The terrain is predominantly composed of glacial deposits and sedimentary rock formations that have been weathered over thousands of years. This geological foundation has created a landscape with moderate slopes and well-drained soils. The Raritan River flows through the broader valley system, contributing to the relatively flat floodplain areas that extend outward from the watercourse. Local topographical features include several small ridgelines that run in a generally northeast-southwest direction, creating natural boundaries between different drainage basins. These ridges are typically broad and rounded rather than sharp or steep, making much of the elevated terrain accessible for development. Between these ridges lie shallow valleys and gentle slopes that have been shaped by centuries of water erosion and glacial activity.

Optimal Areas for Large-Scale Solar Development

The most suitable locations for large-scale solar photovoltaic installations in the Dunellen area would be the broad, south-facing slopes found on the lower elevations of the local ridgelines. These areas offer the dual advantages of good solar exposure and relatively gentle grades that minimize construction and maintenance challenges. The slopes ranging from 2 to 8 degrees are particularly well-suited, as they provide optimal panel positioning while remaining economical to develop. The flatter areas within the Raritan Valley floor present excellent opportunities for extensive solar farms due to their minimal grading requirements and generally unobstructed views of the southern sky. These locations typically require less site preparation and allow for more efficient installation of tracking systems if desired. The stable, well-drained soils common in these areas also provide good foundation conditions for solar mounting systems. Areas to the south and southwest of Dunellen offer particularly promising conditions, where the terrain opens up into broader, less densely developed agricultural and former industrial lands. These locations benefit from the natural topographical features that minimize shading from adjacent hills while providing sufficient flat or gently sloping ground for large installations. The elevated plateau areas found on the broader ridge tops also present viable options for solar development. While these locations may require more substantial infrastructure development for grid connection, they often provide excellent solar access with minimal shading concerns. The relatively stable geology of these elevated areas supports heavy equipment access during construction and provides long-term foundation stability for solar installations.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
