Solar Energy Potential in Edwardsburg, Michigan

Edwardsburg, Michigan, located in the Northern Temperate Zone, presents a moderate opportunity for solar energy generation through photovoltaic (PV) systems. The seasonal variation in solar energy production at this location is quite pronounced, which is typical for northern locations in the United States. The solar production at this location follows a predictable seasonal pattern. During summer months, solar panels can generate approximately 6.29 kWh per day for each kilowatt of installed capacity. Spring is the second most productive season, yielding about 5.30 kWh/day per kW installed. Production decreases considerably in autumn to 3.29 kWh/day, while winter shows the lowest output at just 1.96 kWh/day per kW of installed capacity.

Optimal Panel Installation

For fixed solar panel installations in Edwardsburg, the ideal tilt angle to maximize year-round energy production is 36 degrees facing South. This angle has been carefully calculated to optimize solar capture throughout the year, taking into account the location's latitude and seasonal sun paths.

Seasonal Considerations

The substantial difference between summer and winter production (more than three times higher in summer) indicates that this location experiences significant seasonal variations. This makes summer and spring particularly valuable for solar energy generation, while winter months will produce substantially less energy. Homeowners and businesses should account for this seasonal fluctuation when planning their energy needs.

Environmental and Weather Factors

Several environmental factors could impact solar production in Edwardsburg:

• Snow accumulation is a significant concern during winter months, which can block panels and further reduce the already lower winter production. Regular snow removal or installing panels at steeper angles can help mitigate this issue.
• The region experiences cloudy conditions typical of the Great Lakes area, particularly during winter and fall. This contributes to the lower production figures during these seasons.
• Tree coverage and shading should be carefully evaluated before installation, as the moderate sun angle in this northern location makes panels more susceptible to shading issues.

Preventative measures for these conditions include installing panels with micro-inverters or power optimizers to minimize the impact of partial shading, selecting mounting systems that allow for proper snow shedding, and conducting thorough site assessments to avoid tree shading, particularly during lower sun angle months. Despite these challenges, with proper system design and maintenance, solar PV systems in Edwardsburg can be a viable supplementary energy source, especially when taking advantage of the productive summer and spring months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

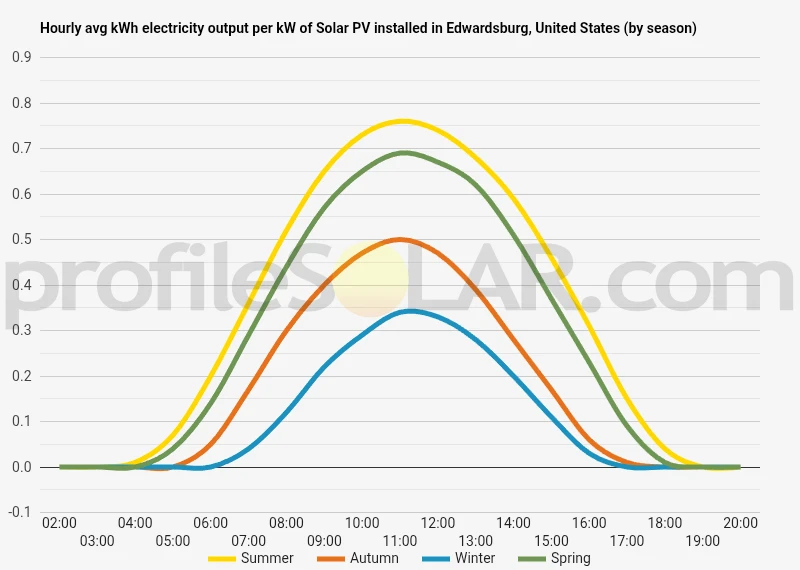

Solar output per kW of installed solar PV by season in Edwardsburg

Seasonal solar PV output for Latitude: 41.7956, Longitude: -86.0808 (Edwardsburg, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Edwardsburg, United States

To maximize your solar PV system's energy output in Edwardsburg, United States (Lat/Long 41.7956, -86.0808) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Edwardsburg, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Edwardsburg, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	45° South in Autumn	56° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Edwardsburg, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Edwardsburg, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Edwardsburg, United States

The landscape around Edwardsburg, Michigan, is characterized by gently rolling terrain typical of the Midwest region. Located in Cass County in the southwestern corner of Michigan, this area features modest elevation changes with subtle hills and shallow valleys. The topography was largely shaped by glacial activity during the last ice age, resulting in a mix of morainal deposits, outwash plains, and glacial till that create the undulating surface visible today. Edwardsburg sits at an elevation of approximately 850 feet (259 meters) above sea level, with minimal dramatic relief in the immediate vicinity. The terrain gradually rises and falls throughout the region, with elevation differences rarely exceeding 100-150 feet between high and low points. This gentle topography is punctuated by numerous lakes, ponds, and wetlands that dot the landscape, including nearby Christiana Lake, Eagle Lake, and Pleasant Lake.

Hydrological Features

The area's water features are significant elements of the local topography. The St. Joseph River watershed influences the region's drainage patterns, with smaller creeks and streams connecting the various lakes. These waterways have carved subtle valleys throughout the otherwise gentle terrain. The abundance of surface water reflects the relatively high water table in the region, which is another legacy of its glacial history. The soil composition varies but generally consists of loamy materials with good drainage in upland areas and more clay-rich or organic soils in lower-lying regions near wetlands. This soil profile has historically supported agricultural use throughout much of the surrounding countryside.

Land Use Patterns

The current landscape around Edwardsburg represents a mosaic of land uses. Agricultural fields dominate much of the rural areas, with corn and soybean cultivation being particularly common. Interspersed among these fields are woodlots of mixed hardwood forest, representing remnants of the more extensive forests that once covered the region before European settlement. Residential and commercial development is concentrated in and around the village of Edwardsburg itself, with rural residential properties scattered throughout the countryside. The US-12 and M-62 highway corridors have influenced development patterns in the area, creating linear commercial zones alongside these transportation routes.

Solar PV Suitability

For large-scale solar photovoltaic development, several areas near Edwardsburg present favorable conditions. The most suitable locations would be: The agricultural uplands to the south and southeast of Edwardsburg offer some of the best potential for solar development. These areas feature relatively flat to gently sloping terrain with good southern exposure and minimal shading concerns. The existing agricultural use means these lands are already cleared, reducing development costs associated with site preparation. The slightly elevated areas northwest of town also present good opportunities, particularly where agricultural fields occupy well-drained soils on subtle ridges or plateaus. These locations tend to have good exposure to the southern sky with minimal obstructions. Areas to avoid would include the numerous wetlands, lakeshores, and floodplains that punctuate the region. These locations present environmental challenges and potential regulatory hurdles for development. Similarly, the more heavily forested tracts would require significant clearing, increasing both the environmental impact and cost of development. The relatively flat terrain throughout much of the region means that aspect (the direction a slope faces) is less of a concern than in more mountainous regions. However, even subtle south-facing slopes can improve solar capture efficiency compared to north-facing areas. From a topographical perspective, the best solar sites would combine well-drained soils, minimal slope, good southern exposure, proximity to existing electrical infrastructure, and appropriate current land use (ideally already disturbed lands rather than natural areas). The agricultural belt surrounding Edwardsburg contains numerous parcels that meet these criteria, making the region generally favorable for solar development from a purely topographical standpoint.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
