Elbow Lake, Minnesota presents significant challenges for year-round solar energy generation, with highly variable seasonal output that makes it less than ideal for consistent solar power production.

Seasonal Solar Performance

The solar energy output at this location varies dramatically throughout the year. Summer provides the strongest performance at 6.66 kWh per day per kW of installed solar capacity, making it an excellent time for solar generation. Spring also offers good production levels at 5.30 kWh per day per kW, providing another favorable season for solar energy harvesting. However, the colder months present substantial challenges. Autumn drops to 2.96 kWh per day per kW, while winter plummets to just 1.99 kWh per day per kW. This means winter solar output is only about 30% of summer production, creating a significant seasonal energy gap.

Optimal Panel Configuration

For fixed panel installations at Elbow Lake, the ideal tilt angle is 40 degrees facing south to maximize total year-round solar production. This angle is calculated by analyzing daily solar elevation angles throughout the year and weighting them according to solar irradiance data to find the optimal compromise for annual energy output.

Environmental and Weather Challenges

Several significant factors can impede solar production at this Minnesota location:

• Heavy snow accumulation during winter months can completely block solar panels
• Ice formation can reduce panel efficiency and create safety hazards
• Frequent cloud cover typical of the upper Midwest climate reduces solar irradiance
• Extreme cold temperatures can affect electrical components and battery performance
• High winds and severe weather events common to the region

Preventative Installation Measures

To maximize solar energy production despite these challenges, several installation strategies should be considered:

• Install panels at steeper angles (45-50 degrees) to promote natural snow shedding
• Use mounting systems that allow safe snow removal access
• Select cold-weather rated inverters and electrical components
• Implement robust grounding and surge protection for severe weather
• Consider micro-inverters to minimize impact when individual panels are snow-covered
• Plan for battery storage systems housed in temperature-controlled environments

The dramatic seasonal variation means that while Elbow Lake can generate substantial solar energy during spring and summer months, winter production will require significant backup power sources or energy storage solutions to maintain consistent electricity supply year-round.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

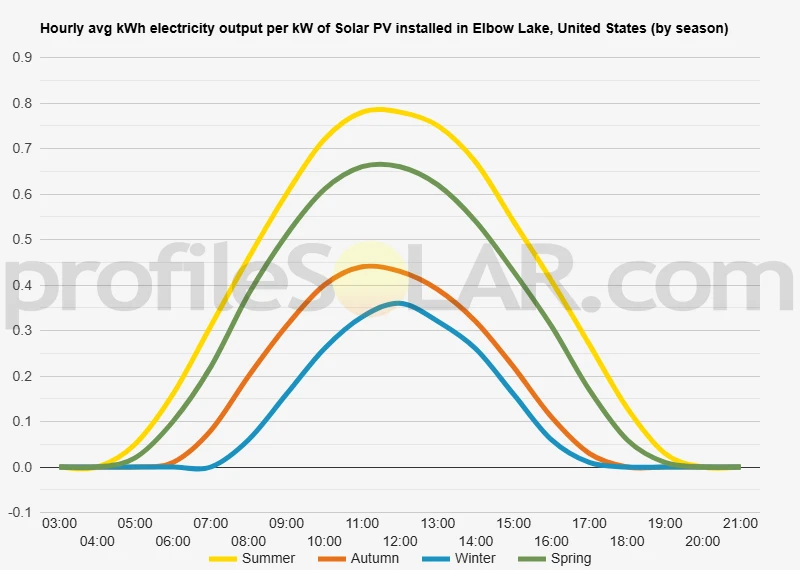

Solar output per kW of installed solar PV by season in Elbow Lake

Seasonal solar PV output for Latitude: 47.1483, Longitude: -95.5461 (Elbow Lake, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 40° South in Elbow Lake, United States

To maximize your solar PV system's energy output in Elbow Lake, United States (Lat/Long 47.1483, -95.5461) throughout the year, you should tilt your panels at an angle of 40° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Elbow Lake, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Elbow Lake, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 40° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
30° South in Summer	50° South in Autumn	61° South in Winter	39° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Elbow Lake, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Elbow Lake, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Elbow Lake, United States

Topography Around Elbow Lake

Elbow Lake sits in the gently rolling prairie landscape of west-central Minnesota, where the terrain is characterized by relatively flat to slightly undulating agricultural land. This region lies within the transition zone between the Great Plains and the more forested areas to the east, creating a landscape dominated by open farmland with scattered woodlots and wetlands. The area around Elbow Lake features modest elevation changes, with the land rising and falling in gentle swells that rarely exceed 50 feet in variation across several miles.

The immediate vicinity of Elbow Lake is part of the glaciated prairie region, where ancient ice sheets left behind a relatively smooth topography punctuated by numerous small lakes, ponds, and seasonal wetlands. The terrain consists primarily of till plains with good drainage, though some areas contain poorly drained depressions that remain wet during much of the year. Agricultural fields dominate the landscape, with corn and soybean production being prevalent throughout the region.

Small streams and drainage ditches crisscross the area, flowing toward larger waterways in the region. The natural vegetation that remains consists mainly of prairie grasses in undeveloped areas, with oak groves and other deciduous trees found in scattered locations, particularly around water features and in areas unsuitable for farming.

Areas Suitable for Large-Scale Solar Development

The relatively flat agricultural terrain surrounding Elbow Lake presents excellent opportunities for large-scale solar photovoltaic installations. The best locations for solar development would be the extensive flat to gently sloping farmland that extends in all directions from the lake, particularly areas with southern exposure that experience minimal shading throughout the day.

The open agricultural fields south and southwest of Elbow Lake would be particularly well-suited for solar development, as these areas combine favorable topography with good access to existing rural roads and electrical infrastructure. These locations offer large contiguous parcels of relatively flat land with minimal obstructions from trees or buildings, allowing for efficient panel layout and maintenance access.

Areas with slight south-facing slopes would provide additional advantages for solar installations, as the natural tilt can enhance energy capture while improving drainage around the solar arrays. The well-drained till soils common in the region provide stable foundations for solar mounting systems, reducing installation complexity and long-term maintenance concerns.

The existing agricultural road network throughout the area would facilitate construction and ongoing maintenance of solar facilities, while the rural electrical distribution system could potentially accommodate the integration of solar generation with appropriate upgrades. Areas closest to existing electrical substations and transmission lines would be most economically viable for large-scale development, as they would require less investment in new electrical infrastructure to connect to the grid.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
