Elburn, Illinois, located in the Northern Temperate Zone, presents a mixed opportunity for solar energy generation throughout the year. This location experiences significant seasonal variations in solar output, which affects the overall efficiency of photovoltaic (PV) systems.

Seasonal Solar Performance

Summer stands out as the most productive season for solar energy in Elburn, with an impressive daily output of 6.25 kWh per kW of installed solar capacity. Spring follows closely behind, generating 5.29 kWh/day. However, the colder months see a substantial decline in solar production, with autumn yielding 3.39 kWh/day and winter dropping to a mere 2.35 kWh/day.

These figures indicate that solar energy generation in Elburn is most effective from late spring through early fall. During this period, longer days and higher sun angles contribute to increased solar panel efficiency. Conversely, the winter months present challenges due to shorter days, lower sun angles, and potential snow cover.

Optimal Panel Installation

For fixed panel installations in Elburn, the ideal tilt angle to maximize year-round solar production is 36 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, balancing the seasonal variations in sun position.

Environmental and Weather Factors

Several factors can impact solar production in Elburn:

1. Snow accumulation: Winter snowfall can temporarily reduce panel efficiency by blocking sunlight. Regular snow removal or the installation of snow guards can mitigate this issue.
2. Cloud cover: The region experiences partly cloudy conditions throughout the year, which can intermittently reduce solar output. Using high-efficiency panels can help maximize energy production even in less-than-ideal conditions.
3. Temperature fluctuations: Extreme heat in summer and cold in winter can affect panel efficiency. Choosing temperature-resistant panels and ensuring proper ventilation can help maintain optimal performance.

To enhance solar production in Elburn, consider using tracking systems to follow the sun's path, installing bifacial panels to capture reflected light, and implementing regular maintenance to keep panels clean and free from obstructions. While the location presents some challenges, particularly in winter, it still offers considerable potential for solar energy generation, especially during the warmer months.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

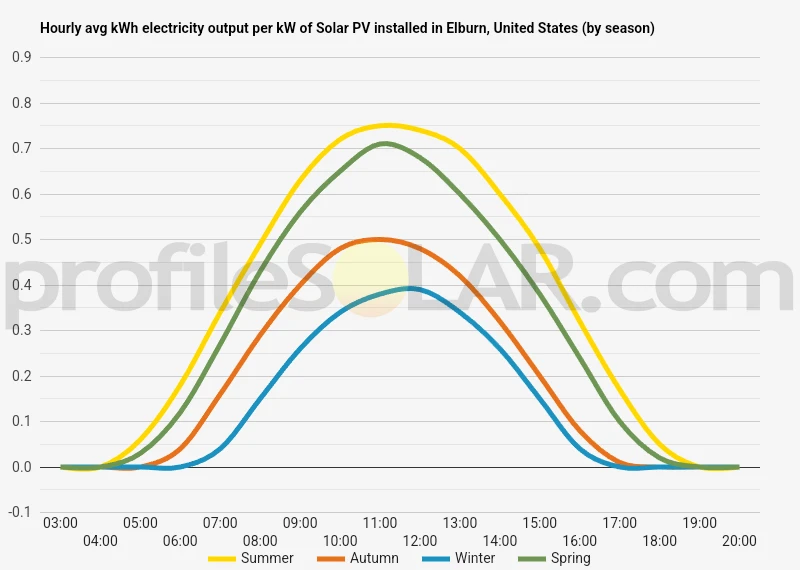

Solar output per kW of installed solar PV by season in Elburn

Seasonal solar PV output for Latitude: 41.8922, Longitude: -88.4723 (Elburn, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Elburn, United States

To maximize your solar PV system's energy output in Elburn, United States (Lat/Long 41.8922, -88.4723) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Elburn, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Elburn, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
26° South in Summer	45° South in Autumn	56° South in Winter	35° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Elburn, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Elburn, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Elburn, United States

The topography around Elburn, Illinois, located at 41.8922°N and 88.4723°W, is characterized by gently rolling plains typical of the Midwestern United States. This area, situated in Kane County, is part of the larger Chicago metropolitan region and lies within the Prairie Parkland ecological province. The landscape surrounding Elburn is predominantly flat to slightly undulating, with subtle variations in elevation. The terrain is a result of glacial activity during the last ice age, which left behind rich, fertile soils ideal for agriculture. The area's elevation generally ranges between 800 and 900 feet above sea level, with only minor fluctuations across the region. Elburn and its environs are dotted with scattered woodlands and small streams, but the majority of the land is open and has been converted for agricultural use. The Blackberry Creek, a tributary of the Fox River, meanders through the area, creating shallow valleys and providing natural drainage for the surrounding farmlands.

Potential for Large-Scale Solar PV

When considering areas nearby that would be most suited to large-scale solar photovoltaic (PV) installations, several factors come into play. The relatively flat terrain around Elburn offers advantages for solar development, as it minimizes the need for extensive land grading and allows for efficient panel layout. The agricultural lands surrounding Elburn present opportunities for solar farm development. These open spaces receive ample sunlight throughout the year, making them potentially suitable for large-scale solar projects. However, it's important to balance solar development with the preservation of prime farmland. Areas to the south and west of Elburn might be particularly well-suited for solar PV installations. These regions tend to have slightly more open space and fewer residential developments, which could facilitate larger projects with minimal impact on populated areas. It's worth noting that while the topography is generally favorable, other factors such as proximity to electrical infrastructure, local zoning regulations, and environmental considerations would also play crucial roles in determining the most suitable locations for large-scale solar PV projects in the vicinity of Elburn.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
