Elgin, Texas, located in the Northern Sub Tropics, offers a promising environment for solar PV energy generation throughout the year. The location's latitude and longitude (30.3218, -97.3805) contribute to its favorable solar potential.

Seasonal Solar Performance

Solar energy production in Elgin varies across the four meteorological seasons. Summer yields the highest output at 6.71 kWh per day for each kilowatt of installed solar capacity. Spring follows closely with 5.41 kWh/day, while autumn produces 5.14 kWh/day. Winter sees the lowest production at 3.42 kWh/day, but still maintains a respectable output. The most ideal times for solar generation in Elgin are during the summer months, typically from June through August. This period offers longer daylight hours and more direct sunlight, maximizing solar panel efficiency. Spring and autumn also provide excellent opportunities for solar energy production, with their moderate temperatures and clear skies.

Optimal Panel Tilt

For fixed panel installations in Elgin, the ideal angle to tilt panels for maximum year-round production is 27 degrees facing south. This angle optimizes the panels' exposure to sunlight throughout the year, accounting for the Earth's elliptical orbit and the location's specific latitude.

Environmental Considerations

While Elgin generally offers favorable conditions for solar energy production, there are a few environmental factors to consider: 1. Occasional severe weather: Texas can experience thunderstorms, hail, and tornadoes, which may potentially damage solar installations. 2. Dust and pollen: The region's climate can lead to accumulation of dust and pollen on solar panels, potentially reducing efficiency. To mitigate these factors, consider the following preventative measures:

• Install hail-resistant solar panels and protective coverings
• Implement a regular cleaning schedule for the panels
• Use tracking systems to adjust panel angles during severe weather

By addressing these considerations, solar installations in Elgin can maximize their energy production potential and maintain long-term efficiency.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

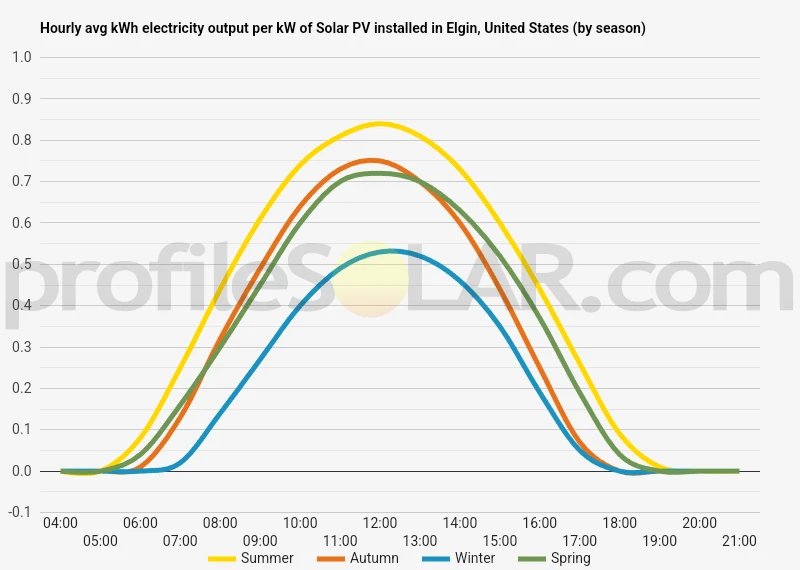

Solar output per kW of installed solar PV by season in Elgin

Seasonal solar PV output for Latitude: 30.3218, Longitude: -97.3805 (Elgin, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 27° South in Elgin, United States

To maximize your solar PV system's energy output in Elgin, United States (Lat/Long 30.3218, -97.3805) throughout the year, you should tilt your panels at an angle of 27° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Elgin, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Elgin, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 27° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
14° South in Summer	35° South in Autumn	46° South in Winter	24° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Elgin, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Elgin, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Elgin, United States

The topography around Elgin, Texas, which is located at 30.3218° North latitude and 97.3805° West longitude, is characterized by gently rolling hills and relatively flat plains. This area is part of the Texas Blackland Prairies ecoregion, known for its fertile soils and mild terrain. The landscape is a mix of open grasslands, scattered woodlands, and agricultural fields.

The elevation in and around Elgin ranges from about 500 to 600 feet above sea level, with subtle variations creating a slightly undulating surface. The region is drained by several small creeks and streams, which have carved shallow valleys into the landscape over time. These waterways eventually feed into larger rivers like the Colorado River, which flows to the south of Elgin.

For large-scale solar PV installations, the areas most suited would be the open, flat to gently sloping lands surrounding Elgin. Ideal locations would have these characteristics:

• Large, contiguous parcels of land with minimal tree cover
• South-facing slopes or flat areas with unobstructed exposure to sunlight
• Areas away from flood-prone zones near creeks and rivers
• Locations with easy access to existing roads and electrical infrastructure

The rural areas to the east and northeast of Elgin would likely be particularly well-suited for solar PV development. These regions tend to have more open, agricultural land with fewer trees and urban development. The relatively flat terrain in these areas would minimize the need for extensive land grading, reducing installation costs and environmental impact.

It's worth noting that while the topography around Elgin is generally favorable for solar PV, site-specific assessments would be necessary to determine the most optimal locations. Factors such as local zoning regulations, proximity to transmission lines, and environmental considerations would also play crucial roles in selecting suitable sites for large-scale solar installations.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
