Elwood, Illinois offers moderate solar energy potential for year-round electricity generation, though with significant seasonal variations that are typical for locations in the Northern Temperate Zone.

Seasonal Solar Performance

The solar output data shows that summer delivers the highest energy production at 6.25 kWh per day per kW of installed solar capacity. Spring follows as the second-best season with 5.28 kWh per day, making these warm months ideal for solar generation. Autumn production drops to 3.39 kWh per day, while winter shows the lowest output at just 2.36 kWh per day per kW installed. This seasonal pattern means that solar panels in Elwood will generate nearly three times more electricity in summer compared to winter. The spring and summer months from March through September represent the prime solar generation period for this location.

Optimal Panel Installation

For maximum year-round energy production, solar panels should be installed at a fixed tilt angle of 36 degrees facing south. This angle has been calculated to optimize total annual electricity output by accounting for the sun's changing position throughout the year and weighting for the varying solar irradiance potential across all seasons.

Local Factors Affecting Solar Production

Several environmental and weather factors in Elwood, Illinois can impact solar energy generation:

• Snow accumulation during winter months can block panels and reduce output
• Frequent cloud cover and overcast conditions typical of Midwest weather patterns
• Ice formation on panels during freeze-thaw cycles
• Dust and debris accumulation, particularly during agricultural seasons
• High humidity levels that can create haze and reduce solar irradiance

Preventative Measures for Better Performance

To maximize solar energy production despite these challenges, several installation strategies can help:

• Install panels with adequate tilt (like the recommended 36 degrees) to promote natural snow shedding
• Ensure proper spacing between panel rows to prevent snow buildup and shading
• Use mounting systems that allow for safe cleaning and maintenance access
• Consider anti-reflective coatings that perform better in humid conditions
• Install monitoring systems to quickly identify performance issues
• Plan for regular cleaning schedules, especially during dusty agricultural periods

While Elwood's solar potential is decent for the region, the significant winter production drop means that residents considering solar should plan for reduced output during colder months and potentially size their systems accordingly to meet annual energy needs.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

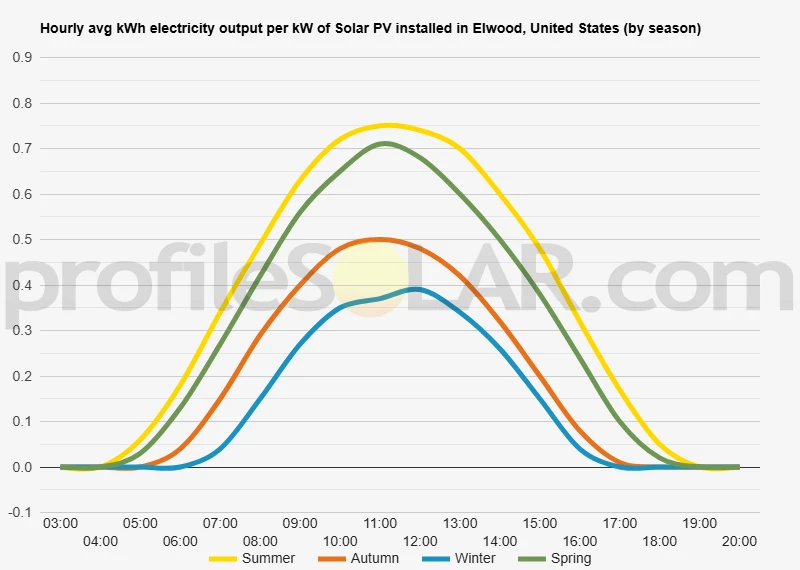

Solar output per kW of installed solar PV by season in Elwood

Seasonal solar PV output for Latitude: 41.4039, Longitude: -88.1117 (Elwood, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 36° South in Elwood, United States

To maximize your solar PV system's energy output in Elwood, United States (Lat/Long 41.4039, -88.1117) throughout the year, you should tilt your panels at an angle of 36° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Elwood, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Elwood, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 36° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
25° South in Summer	45° South in Autumn	55° South in Winter	34° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Elwood, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Elwood, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Elwood, United States

Topographical Features of the Elwood Region

The area surrounding Elwood, Illinois sits within the expansive prairie landscape of the upper Midwest, characterized by predominantly flat to gently rolling terrain. This region forms part of the till plains that were shaped by glacial activity thousands of years ago, resulting in relatively uniform elevation changes across the landscape. The topography consists primarily of agricultural land with minimal elevation variations, making it typical of the Illinois prairie environment. The immediate vicinity around Elwood features open farmland interspersed with small woodlots and residential developments. The terrain slopes very gradually, with most areas exhibiting less than a five percent grade across extended distances. This gentle topography creates excellent drainage patterns while maintaining the flat characteristics that define much of northern Illinois. Several small waterways meander through the region, including tributaries that eventually connect to larger river systems. These water features create subtle valleys and slight depressions in the otherwise level landscape, though these variations are minimal and do not significantly alter the overall flat character of the area.

Optimal Areas for Large-Scale Solar Development

The extensive agricultural fields surrounding Elwood present ideal conditions for large-scale solar photovoltaic installations. These open areas offer unobstructed southern exposure with minimal shading from trees or structures, creating optimal conditions for solar energy capture throughout the day. The flat terrain eliminates the need for extensive grading or site preparation that would be required in more mountainous regions. Areas to the south and southwest of Elwood appear particularly well-suited for solar development due to their combination of level ground and large contiguous parcels of land. These locations would allow for efficient installation of solar arrays while maintaining proper spacing between rows to prevent shading conflicts. The existing agricultural infrastructure in these areas also provides beneficial access to electrical transmission lines and transportation networks. The eastern portions of the region also show strong potential for solar installations, featuring similar flat topography with good road access for construction and maintenance activities. These areas benefit from the same glacially-formed landscape that characterizes the broader region, providing stable ground conditions suitable for mounting systems. Agricultural land conversion represents the most practical option for large-scale solar development in this region, as the flat, cleared fields require minimal modification to accommodate solar installations. The existing field boundaries and farm roads would facilitate construction access while the level terrain would support efficient installation techniques and optimal panel positioning for maximum energy production.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
