Escalon, California represents a highly favorable location for year-round solar energy generation, situated in the Northern Temperate Zone at coordinates 37.7962, -121.0008. This location demonstrates strong solar production potential across all seasons, making it an excellent choice for solar photovoltaic installations.

Seasonal Solar Performance

The solar energy output at Escalon varies significantly throughout the year, reflecting the natural seasonal patterns of solar irradiance. Summer delivers the highest production at 8.65 kWh per day per kW of installed solar capacity, making it the peak generation season. Spring follows as the second-best performing season with 7.52 kWh per day per kW, offering nearly comparable output to summer months. Autumn production drops to 4.85 kWh per day per kW, while winter represents the lowest production period at 2.97 kWh per day per kW of installed capacity. Despite this winter reduction, the location still maintains reasonable solar generation even during the least productive months.

Optimal Installation Configuration

For maximum year-round energy production at this Escalon location, solar panels should be installed at a fixed tilt angle of 32 degrees facing south. This optimal angle is calculated by analyzing daily solar elevation angles throughout the year, determining optimal panel positioning, and weighting these angles based on photovoltaic potential using solar irradiance data that accounts for Earth's elliptical orbit.

Environmental and Weather Considerations

Several local factors in the Escalon area could potentially impact solar energy production and should be considered during installation planning:

• Tule fog: The Central Valley region, including Escalon, experiences dense tule fog during winter months, which can significantly reduce solar irradiance and temporarily decrease energy production
• Agricultural dust and particulates: Being located in an agricultural region, airborne dust and particles from farming activities can accumulate on solar panels, reducing their efficiency
• Wildfire smoke: California's wildfire seasons can create smoky conditions that filter sunlight and reduce solar panel performance
• Valley temperature inversions: These weather patterns can trap pollutants and create hazy conditions that diminish solar production

Preventative Measures for Optimal Performance

To maximize solar energy production despite these environmental challenges, several preventative measures should be implemented: Regular cleaning schedules become essential in this location, with panels requiring more frequent washing during dusty agricultural seasons and after significant weather events. Installing panels with anti-reflective and self-cleaning coatings can help reduce dust accumulation and maintain efficiency. Proper spacing between panel rows ensures adequate airflow for cooling and easier access for maintenance. Monitoring systems should be installed to track performance and identify when cleaning or maintenance is needed due to environmental factors. Choosing high-quality panels with good low-light performance can help maintain production during foggy or smoky conditions. Additionally, installing panels at the recommended 32-degree tilt angle not only optimizes sun exposure but also helps with natural rain-washing of accumulated dust and debris. Overall, Escalon's location offers excellent solar potential year-round, with summer and spring being particularly productive seasons. While environmental factors require consideration and proper maintenance protocols, these challenges are manageable with appropriate planning and regular upkeep.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

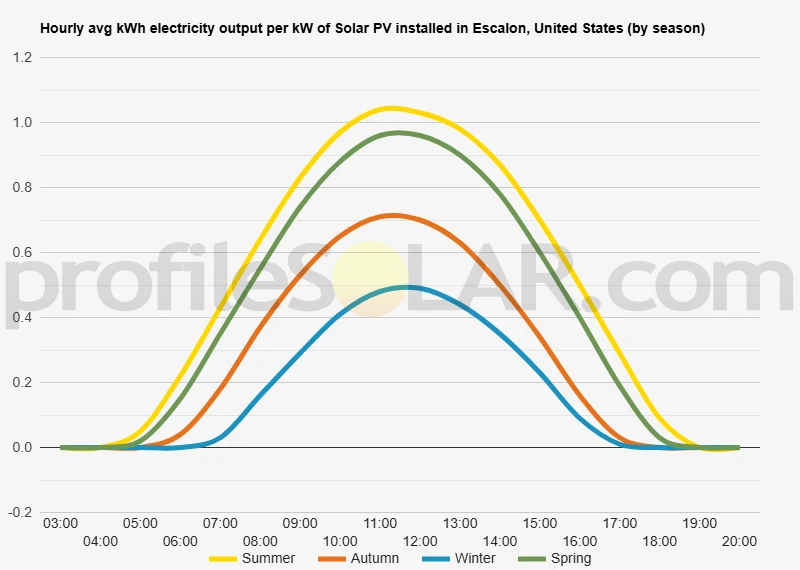

Solar output per kW of installed solar PV by season in Escalon

Seasonal solar PV output for Latitude: 37.7962, Longitude: -121.0008 (Escalon, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 32° South in Escalon, United States

To maximize your solar PV system's energy output in Escalon, United States (Lat/Long 37.7962, -121.0008) throughout the year, you should tilt your panels at an angle of 32° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Escalon, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Escalon, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 32° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
21° South in Summer	42° South in Autumn	52° South in Winter	30° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Escalon, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Escalon, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Escalon, United States

Topographical Features Around Escalon

Escalon sits in California's Central Valley, positioned within San Joaquin County at an elevation of approximately 170 feet above sea level. The surrounding landscape is characterized by predominantly flat to gently rolling terrain, which is typical of this agricultural region. The area forms part of the expansive Central Valley floor, creating a relatively uniform topographical profile that extends for miles in multiple directions. The immediate vicinity around Escalon features minimal elevation changes, with the land gradually sloping toward the San Joaquin River system to the north and west. Small undulations in the terrain are primarily the result of ancient river channels and agricultural modifications rather than significant natural topographical features. The flat nature of this region has made it ideal for intensive farming operations, with vast fields of almonds, walnuts, and various row crops dominating the landscape. To the east, the terrain begins a very gradual rise toward the Sierra Nevada foothills, though these elevated areas remain quite distant from Escalon itself. The western horizon shows similarly flat conditions extending toward the Coast Range, which lies much farther west. This positioning places Escalon in what is essentially a broad, flat basin with excellent exposure to solar radiation throughout most of the day.

Optimal Areas for Large-Scale Solar Development

The flat topography surrounding Escalon presents numerous advantages for large-scale solar photovoltaic installations. The most suitable areas would be the expanses of relatively level ground extending north, south, and west of the city, where minimal grading would be required for solar array installation. These areas offer consistent ground conditions and would allow for efficient panel placement with optimal south-facing orientations. Areas immediately southwest of Escalon appear particularly well-suited for solar development, as they combine flat terrain with good access to existing electrical infrastructure. The land in this direction maintains consistent elevation and lacks significant obstacles that would create shading issues for solar panels. Similarly, the agricultural areas extending northward toward the Stanislaus River corridor offer extensive flat parcels that could accommodate large solar installations. The region's agricultural heritage actually works in favor of solar development, as many of the existing field boundaries and access roads could potentially be adapted for solar farm infrastructure. The flat terrain means that solar panels can be installed with consistent tilt angles across large areas, maximizing efficiency and simplifying maintenance operations. Areas to avoid would include the immediate floodplains near waterways, where seasonal flooding might pose risks to installations. Additionally, any locations with significant tree cover or existing urban development would be less suitable. However, these constraints are minimal given the predominantly open, flat character of the landscape surrounding Escalon. The overall topographical conditions in this region are among the most favorable found anywhere for large-scale solar development, combining flat terrain, minimal shading obstacles, and excellent solar exposure potential throughout the year.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
