Solar Energy Potential in Gadsden, Alabama

Gadsden, Alabama, located in the Northern Sub Tropics at coordinates 33.9845, -85.9077, offers varying potential for solar PV energy generation throughout the year. This location experiences significant seasonal differences in solar energy production that prospective solar adopters should consider. The seasonal production patterns show that summer is the most productive time, generating approximately 6.14kWh per day for each kilowatt of installed capacity. Spring follows closely behind with 6.02kWh/day. Autumn sees a moderate decrease to 4.50kWh/day, while winter production drops significantly to 2.76kWh/day per installed kilowatt.

Optimal Installation Angle

For fixed solar panel installations in Gadsden, the ideal tilt angle to maximize year-round energy production is 30 degrees facing South. This angle has been calculated by analyzing the optimal panel orientation relative to the sun's position throughout the year, weighted by the potential daily solar energy production at this specific latitude.

Seasonal Considerations

The substantial difference between summer/spring and winter production indicates that Gadsden experiences a pronounced seasonal variation. Solar systems will produce more than twice as much energy during peak summer months compared to winter months. This pattern suggests that annual energy planning should account for these fluctuations, with the understanding that roughly 75% of annual production will occur during spring, summer, and fall.

Environmental and Weather Factors

Several environmental factors in Gadsden may impact solar energy production:

• Humidity and precipitation: The subtropical climate brings higher humidity levels and frequent rainfall, particularly during summer thunderstorms, which can temporarily reduce solar efficiency.
• Tree coverage: The region's abundant vegetation and tall trees may create shading issues if not properly addressed during installation planning.
• Occasional severe weather: Thunderstorms, tornadoes, and infrequent winter ice storms could potentially damage solar installations if not properly secured.

Preventative Measures

To maximize solar production in Gadsden, consider these preventative measures:

• Install panels with microinverters or power optimizers to minimize the impact of partial shading from trees or structures.
• Use mounting systems rated for local wind conditions and secure panels appropriately for severe weather resilience.
• Implement a regular cleaning schedule, especially during pollen season in spring and after storms, to maintain optimal panel efficiency.
• Consider slight adjustments to the standard 30-degree tilt to favor either summer or winter production based on your specific energy needs.

Overall, Gadsden offers good conditions for solar energy production, particularly from March through October. The significant winter reduction should be factored into system sizing calculations, potentially requiring larger installations if year-round energy independence is the goal.

Note: The Northern Sub Tropics extend from 23.5° latitude North up to 35° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

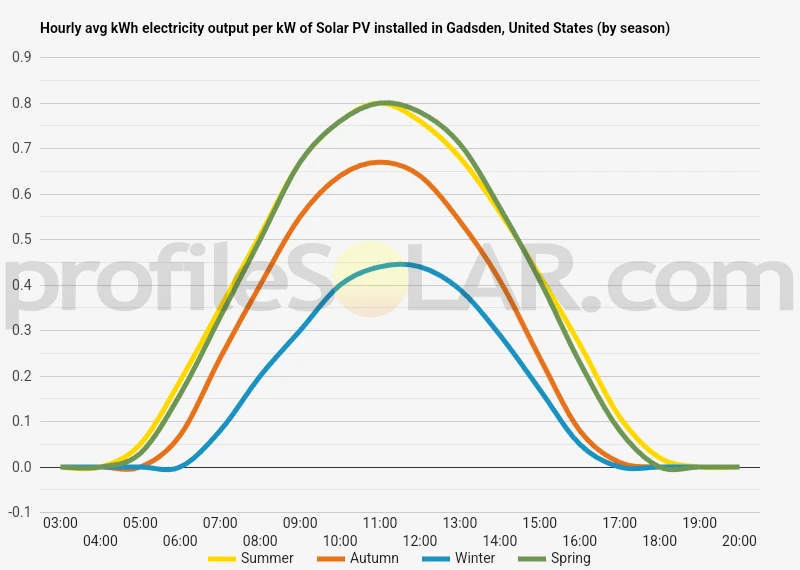

Solar output per kW of installed solar PV by season in Gadsden

Seasonal solar PV output for Latitude: 33.9845, Longitude: -85.9077 (Gadsden, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 30° South in Gadsden, United States

To maximize your solar PV system's energy output in Gadsden, United States (Lat/Long 33.9845, -85.9077) throughout the year, you should tilt your panels at an angle of 30° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Gadsden, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Gadsden, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 30° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
18° South in Summer	39° South in Autumn	49° South in Winter	26° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Gadsden, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Gadsden, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Gadsden, United States

The topography around Gadsden, Alabama presents a diverse landscape characterized by the southern reaches of the Appalachian Mountains. Situated in northeastern Alabama along the Coosa River, Gadsden's terrain features a mix of rolling hills, valleys, and plateaus typical of the Ridge and Valley physiographic province. The city itself sits at an elevation of approximately 170 meters (558 feet) above sea level, with surrounding areas rising to form more pronounced ridges and highlands. To the east of Gadsden stands Lookout Mountain, part of the Cumberland Plateau, which creates a significant elevated landform that extends from Alabama through Georgia and into Tennessee. This mountain ridge reaches heights of over 500 meters (1,640 feet) in the vicinity. To the west, Sand Mountain forms another prominent highland area. Between these ridges lies the Coosa Valley, where Gadsden is situated, following the path of the Coosa River that winds through the region.

Terrain Characteristics

The terrain around Gadsden exhibits considerable variation. The valley floors are relatively flat and open, while the surrounding ridges feature steeper slopes and more rugged topography. The city's immediate surroundings include a mixture of developed urban areas, agricultural land in the flatter valley sections, and forested hillsides on the rising terrain. The Coosa River creates a natural corridor through the landscape, with its associated floodplain providing some of the flattest land in the region. The geological foundation consists primarily of limestone, sandstone, and shale formations, which have weathered differently to create the characteristic ridge and valley pattern. Karst features, including sinkholes and underground drainage systems, can be found in areas where limestone is predominant.

Solar PV Suitability

For large-scale solar photovoltaic installations, several areas around Gadsden offer promising characteristics. The most suitable locations would be found on the valley floors and gentler slopes, particularly in the broader sections of the Coosa Valley. These areas combine favorable topographic features with practical development considerations: The flatter agricultural lands to the southwest and northeast of Gadsden present ideal conditions for solar PV development. These areas offer minimal slope, reducing construction costs and optimization challenges. The open nature of these valley floors provides minimal shading from topographic features, maximizing potential solar exposure throughout the day. Some of the plateau areas on Sand Mountain to the west and parts of Lookout Mountain to the east with gentler gradients could also accommodate solar installations. These elevated areas might benefit from slightly reduced atmospheric interference, though construction logistics would be more challenging than in the valleys. Areas to avoid would include the steeper slopes of the mountain ridges, heavily forested regions where clearing would be environmentally problematic, and the immediate floodplain of the Coosa River where periodic flooding presents risks. The gently rolling former agricultural lands approximately 10-15 kilometers south of Gadsden offer particularly promising conditions, combining favorable topography with proximity to existing electrical infrastructure along major transportation corridors. Similarly, some of the broader valley sections extending northward toward Attalla present suitable terrain for large installations. While the region does experience some cloudy days and precipitation throughout the year, the overall climate conditions in northeastern Alabama remain conducive to solar energy production, with the topographic variations being the primary consideration for site selection.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
