Gahanna, Ohio shows moderate potential for year-round solar energy generation, though with significant seasonal variation typical of locations in the Northern Temperate Zone.

Seasonal Solar Performance

The solar output data reveals a clear seasonal pattern at this location. Summer provides the strongest solar generation at 6.16 kWh per day per kW of installed capacity, making it the peak season for solar energy production. Spring follows as the second-best season with 5.47 kWh per day per kW, offering nearly as good performance as summer months. Autumn sees a notable drop to 3.54 kWh per day per kW, while winter presents the most challenging conditions with only 2.06 kWh per day per kW of solar capacity. This winter figure represents just one-third of the summer output, highlighting the significant seasonal challenges for solar generation in Ohio.

Optimal Panel Configuration

For fixed solar panel installations at Gahanna, the ideal tilt angle is 34 degrees facing south to maximize total year-round energy production. This angle has been calculated to optimize solar collection across all seasons by accounting for the sun's changing position throughout the year and weighting for actual solar irradiance potential.

Local Environmental Challenges

Several environmental and weather factors in the Gahanna area can significantly impact solar panel performance:

• Snow accumulation during winter months can completely block solar panels
• Frequent cloud cover and overcast skies, particularly during autumn and winter
• Ice formation on panels during freeze-thaw cycles
• High humidity levels that can reduce solar efficiency
• Potential for severe weather including hail storms and high winds

Preventative Installation Measures

To maximize solar energy production despite these challenges, several installation strategies should be considered. Installing panels at the optimal 34-degree tilt angle not only improves year-round efficiency but also helps snow slide off more easily during winter months. Choosing high-quality panels with anti-reflective coatings can help maintain performance during cloudy conditions. Installing a monitoring system allows for quick identification of snow or ice coverage that may require removal. Ensuring adequate spacing between panel rows prevents shading and improves air circulation, which helps with ice melting and overall efficiency. Regular maintenance scheduling becomes particularly important in this climate, with plans for safe snow removal and periodic cleaning to remove accumulated debris, pollen, and other materials that can reduce panel efficiency throughout the year.

Note: The Northern Temperate Zone extends from 35° latitude North up to 66.5° latitude.

So far, we have conducted calculations to evaluate the solar photovoltaic (PV) potential in 4253 locations across the United States. This analysis provides insights into each city/location's potential for harnessing solar energy through PV installations.

Link: Solar PV potential in the United States by location

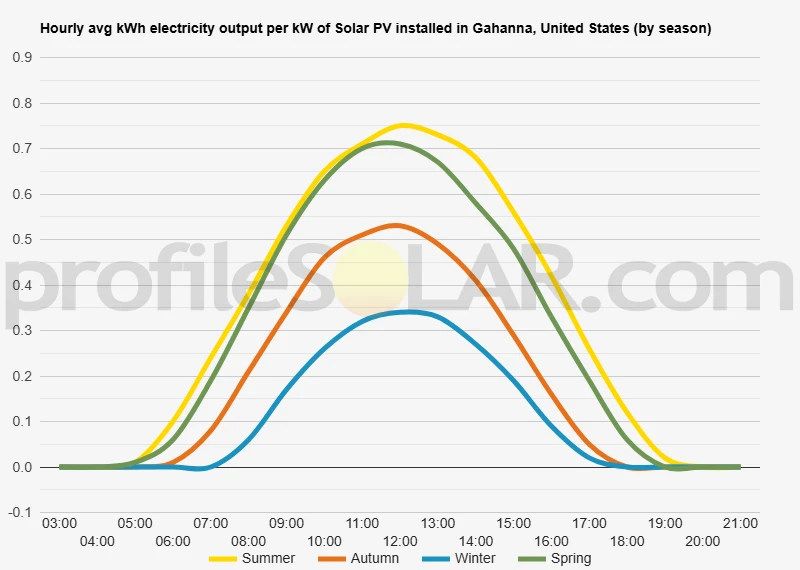

Solar output per kW of installed solar PV by season in Gahanna

Seasonal solar PV output for Latitude: 40.0284, Longitude: -82.8775 (Gahanna, United States), based on our analysis of 8760 hourly intervals of solar and meteorological data (one whole year) retrieved for that set of coordinates/location from NASA POWER (The Prediction of Worldwide Energy Resources) API:



Ideally tilt fixed solar panels 34° South in Gahanna, United States

To maximize your solar PV system's energy output in Gahanna, United States (Lat/Long 40.0284, -82.8775) throughout the year, you should tilt your panels at an angle of 34° South for fixed panel installations.

As the Earth revolves around the Sun each year, the maximum angle of elevation of the Sun varies by +/- 23.45 degrees from its equinox elevation angle for a particular latitude. Finding the exact optimal angle to maximise solar PV production throughout the year can be challenging, but with careful consideration of historical solar energy and meteorological data for a certain location, it can be done precisely.

We use our own calculation, which incorporates NASA solar and meteorological data for the exact Lat/Long coordinates, to determine the ideal tilt angle of a solar panel that will yield maximum annual solar output. We calculate the optimal angle for each day of the year, taking into account its contribution to the yearly total PV potential at that specific location.

Seasonally adjusted solar panel tilt angles for Gahanna, United States

If you can adjust the tilt angle of your solar PV panels, please refer to the seasonal tilt angles below for optimal solar energy production in Gahanna, United States. As mentioned earlier, for fixed-panel solar PV installations, it is optimal to maintain a 34° South tilt angle throughout the year.

Overall Best Summer Angle	Overall Best Autumn Angle	Overall Best Winter Angle	Overall Best Spring Angle
24° South in Summer	44° South in Autumn	54° South in Winter	33° South in Spring

Our recommendations take into account more than just latitude and Earth's position in its elliptical orbit around the Sun. We also incorporate historical solar and meteorological data from NASA's Prediction of Worldwide Energy Resources (POWER) API to assign a weight to each ideal angle for each day based on its historical contribution to overall solar PV potential during a specific season.

This approach allows us to provide much more accurate recommendations than relying solely on latitude, as it considers unique weather conditions in different locations sharing the same latitude worldwide.

Calculate solar panel row spacing in Gahanna, United States

We've added a feature to calculate minimum solar panel row spacing by location. Enter your panel size and orientation below to get the minimum spacing in Gahanna, United States.

Our calculation method

1. Solar Position:
   We determine the Sun's position on the Winter solstice using the location's latitude and solar declination.
2. Shadow Projection:
   We calculate the shadow length cast by panels using trigonometry, considering panel tilt and the Sun's elevation angle.
3. Minimum Spacing:
   We add the shadow length to the horizontal space occupied by tilted panels.

This approach ensures maximum space efficiency while avoiding shading during critical times, as the Winter solstice represents the worst-case scenario for shadow length.

Topography for solar PV around Gahanna, United States

Topographical Features Around Gahanna

Gahanna sits in the gently rolling landscape of central Ohio, positioned within the Till Plains region that characterizes much of the state. The terrain around this Columbus suburb is predominantly flat to gently undulating, with elevation changes that are typically gradual rather than dramatic. The area lies within the drainage basin of several small creeks and streams, including Big Walnut Creek, which meanders through the eastern portions of the region.

The topography reflects the glacial history of central Ohio, where ancient ice sheets deposited layers of till and created the relatively smooth terrain visible today. Small hills and ridges dot the landscape, but these features rarely exceed 100 feet in elevation difference from the surrounding valleys. The soil composition consists primarily of glacial deposits, creating generally stable ground conditions across the region.

Agricultural fields and suburban developments dominate the land use patterns, with patches of deciduous forest remaining along creek corridors and in areas that were less suitable for farming. The terrain slopes very gently toward the southeast, following the natural drainage patterns toward the Scioto River system.

Optimal Areas for Large-Scale Solar Development

The relatively flat terrain throughout the Gahanna area presents numerous opportunities for large-scale solar photovoltaic installations. The most promising locations lie to the south and southwest of the city, where expansive agricultural fields offer large, unobstructed parcels with minimal topographical constraints. These areas feature gentle slopes that can actually benefit solar panel efficiency by providing natural drainage while maintaining optimal positioning angles.

The farmland extending toward the Scioto River valley presents particularly attractive conditions, with vast open spaces that experience minimal shading from trees or structures. The glacial till soils in these areas provide stable foundations for solar mounting systems, while the gentle topography minimizes the need for extensive grading or site preparation.

Areas along the major transportation corridors, particularly near Interstate 270 and State Route 62, offer additional advantages for solar development. These locations combine suitable terrain with proximity to electrical transmission infrastructure, which reduces connection costs and complexity. The relatively flat parcels in these zones often feature good southern exposure with minimal obstructions from existing development.

The eastern portions of the region, while still topographically suitable, may present more challenges due to increased residential development and smaller available parcels. However, some larger agricultural tracts in this area could still accommodate substantial solar installations, particularly where the terrain remains open and unobstructed by significant tree cover or urban development.

United States solar PV Stats as a country

United States ranks 2nd in the world for cumulative solar PV capacity, with 95,209 total MW's of solar PV installed. This means that 3.40% of United States's total energy as a country comes from solar PV (that's 26th in the world). Each year United States is generating 289 Watts from solar PV per capita (United States ranks 15th in the world for solar PV Watts generated per capita). [source]

Are there incentives for businesses to install solar in United States?

Yes, there are several incentives for businesses wanting to install solar energy in the United States. These include federal tax credits, state and local rebates, net metering policies, and renewable energy certificates (RECs). Additionally, many states have enacted legislation that requires utilities to purchase a certain amount of electricity from renewable sources such as solar.

Do you have more up to date information than this on incentives towards solar PV projects in United States? Please reach out to us and help us keep this information current. Thanks!
